PIRS1X166TMB5M.4 Banner Through Beam Sensors

PIRS1X166TMB5M.4 on Powermatic Associates
Banner
  • PIRS1X166TMB5M.4
  • PIRS1X166TMB5M.4

Part#:PIRS1X166TMB5M.4

Alt. Part#:79673

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

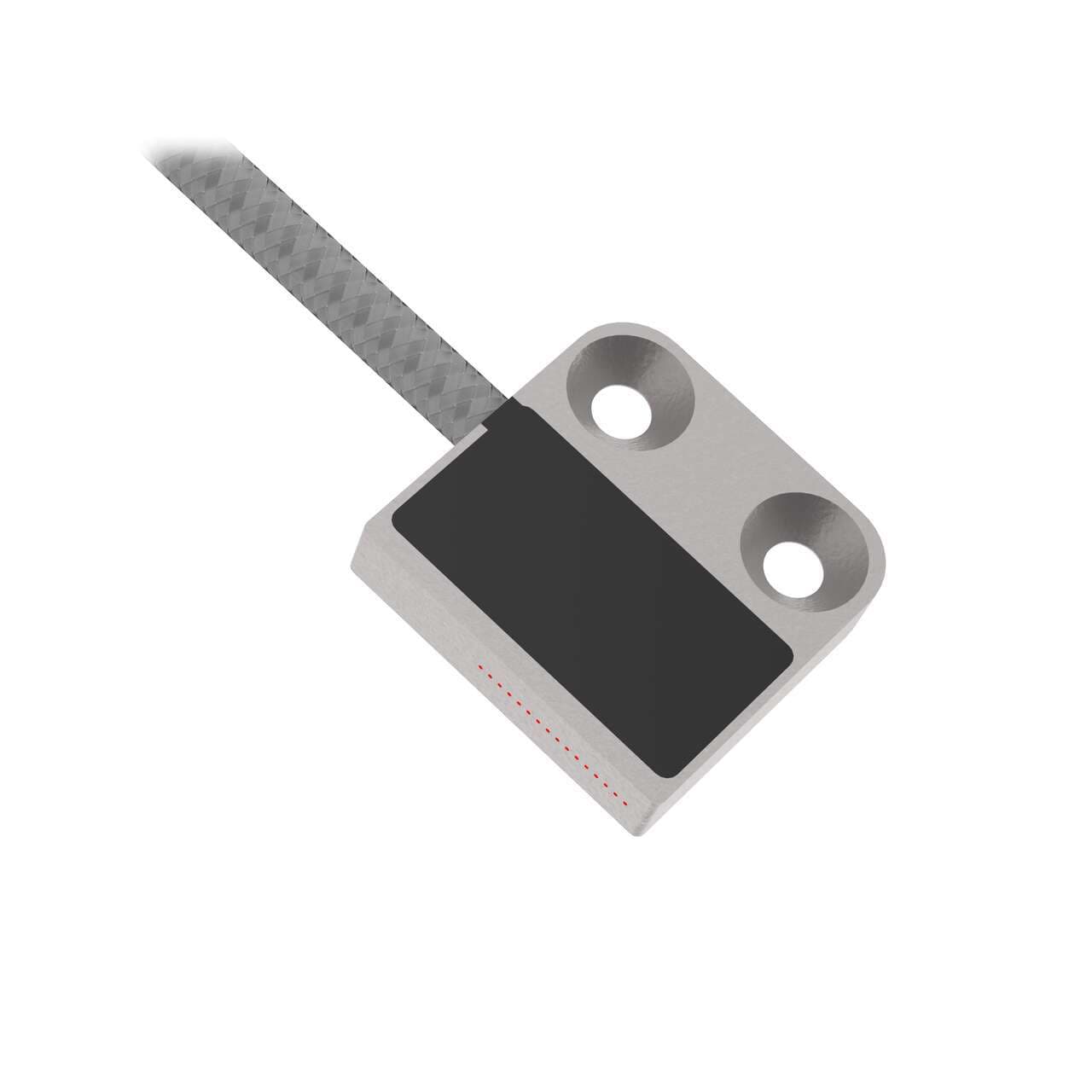

Plastic Fiber, Opposed Mode; Core Dia.: 16 x 0.25 mm; Fiber Length 2 m; Rectangle, Sideview; SteelSkin, TMB5 Termination

Product Details

  • Weight
    113.398 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    529
  • Max Distance: DF-G3 (mm)
    4110
  • Application: Liquid Level
    No
  • Measured Max Distance (mm)
    529
  • Fiber Sensing End Size - Mounting Area
    20.0 x 20.0 mm
  • Max Distance: DF-G2 (mm)
    857
  • Termination Type
    Plastic Fiber Sensors
  • Tariff Fiber Meters (fbm)
    64
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    Yes
  • Feature: Extended Range
    No
  • Feature: Chemical Resistant
    No
  • Minimum Repeat Bending Endurance
    10000
  • Integrated Lens
    No
  • Minimum Bend Radius (mm)
    12
  • Termination
    Terminated
  • Max Temp ( °C)
    70
  • Core Diameter (mm)
    16 x 0.3
  • Retractile
    No
  • Flex Relief
    No
  • Sensing End Segment 3
    Array
  • Array Length (mm)
    10
  • Sensing End Segment 2
    Sideview
  • Sensing End Segment 1
    Rectangle
  • Fiber Sensing End Size
    20.0 x 20.0 mm
  • Fiber Length (m)
    2
  • Fiber Sensing End Tip
    Array
  • Sensing End Material (Specific)
    Aluminum
  • Fiber Sheathing Material (Jacket)
    STEELSKIN
  • Sensing Mode (Detailed)
    Array
  • Beam Exit
    Right Angle
  • Sensing Mode (General)
    Opposed
  • Fiber Optic Type
    Plastic
  • Housing Style
    Rectangular
  • Quantity Included
    2
  • Max Range: DF-G3 (mm)
    >3m - <=5m

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIRS1X166TMB5M.4 on Powermatic Associates is $366.00. Order now.

About the product

Banner Engineering PIRS1X166TMB5M.4 is a fiber sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor falls under the Plastic fiber series, characterized by a 0.25mm fiber core diameter and a 6ft (approximately 2m) length. The sensing end and the fiber are made of plastic, while the fiber sheath is constructed from Steelskin, enhancing its durability. It operates effectively at an ambient air temperature of up to +70°C. The sensor's design is rectangular, aligning with its application requirements and installation settings.

PIRS1X166TMB5M.4 Related Documents

PIRS1X163 SERIED STEEL SKIN-1630955386345.pdfPIRS1X163 SERIED STEEL SKIN-1630955386348.stp
