PIPS46TMB5 Banner Through Beam Sensors

PIPS46TMB5 on Powermatic Associates
Banner
  • PIPS46TMB5
  • PIPS46TMB5

Part#:PIPS46TMB5

Alt. Part#:70861

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

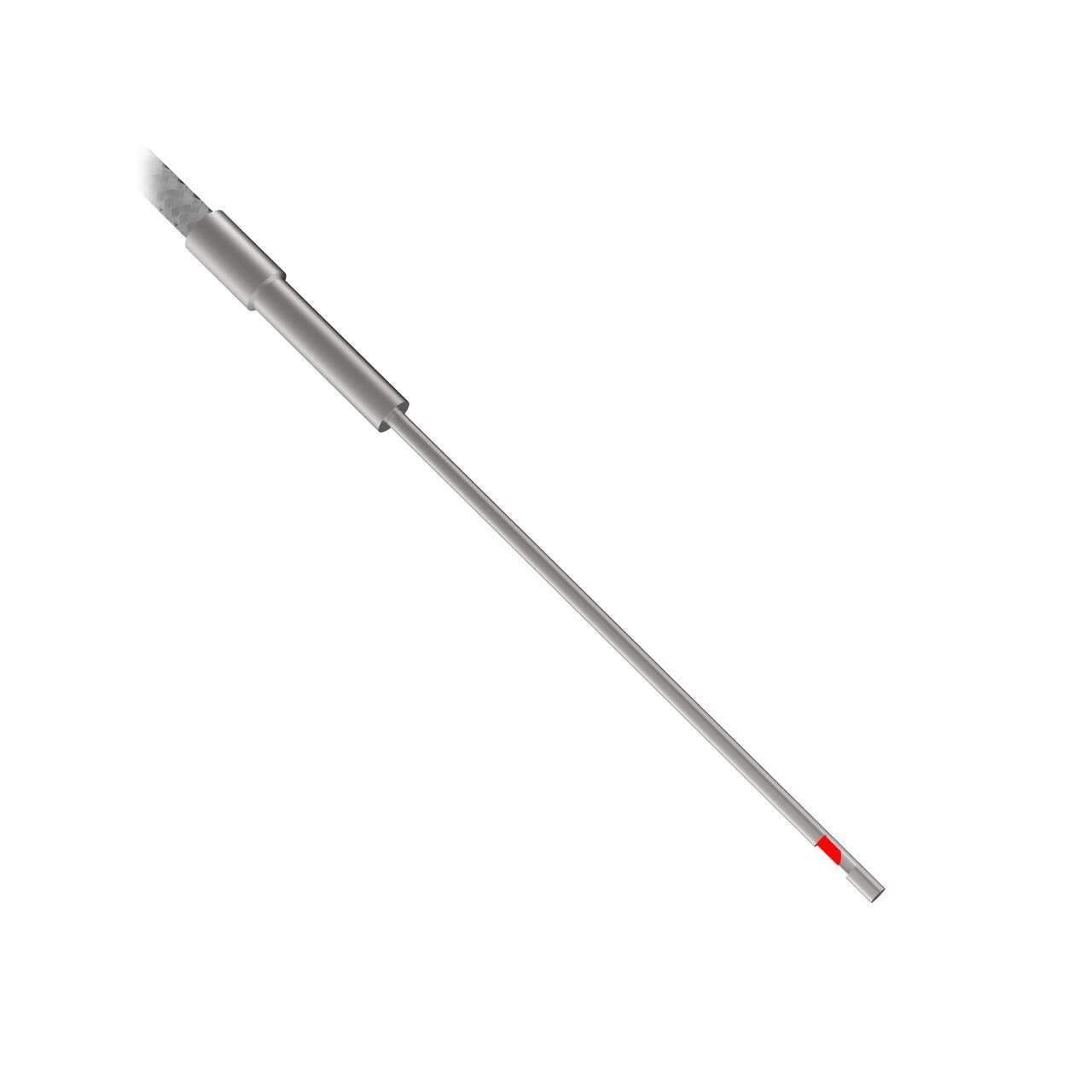

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Probe, Sideview; SteelSkin, TMB5 Termination

Product Details

  • Weight
    108.86208 g
  • Country Of Origin
    JP
  • Fiber Sensing End Size - Mounting Area
    1.5 mm
  • Max Distance: DF-G1 (mm)
    313
  • Max Distance: DF-G2 (mm)
    508
  • Max Distance: DF-G3 (mm)
    2436
  • Measured Max Distance (mm)
    313
  • Tariff Fiber Meters (fbm)
    4
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    No
  • Sensing End Segment 2
    Probe
  • Beam Exit
    Right Angle
  • Integrated Lens
    No
  • Feature: Chemical Resistant
    No
  • Max Temp ( °C)
    70
  • Minimum Bend Radius (mm)
    12
  • Termination
    Terminated
  • Minimum Repeat Bending Endurance
    1000
  • Application: Liquid Level
    No
  • Flex Relief
    No
  • Sensing End Segment 1
    Ferrule
  • Core Diameter (mm)
    1
  • Retractile
    No
  • Sensing End Segment 3
    Sideview
  • Fiber Sensing End Size
    1.5 mm
  • Fiber Sensing End Tip
    Sideview
  • Fiber Length (m)
    2
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Sheathing Material (Jacket)
    STEELSKIN
  • Fiber Optic Type
    Plastic
  • Sensing End Material (Specific)
    Stainless Steel
  • Sensing Mode (General)
    Opposed
  • Quantity Included
    2
  • Housing Style
    Round
  • Max Range: DF-G3 (mm)
    >1m - <=3m

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIPS46TMB5 on Powermatic Associates is $341.00. Order now.

About the product

Banner Engineering PIPS46TMB5 is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode probe tip pair of individual fibers positioned side by side with right-angled sensing. This sensor falls under the Plastic fiber series and is equipped with a cylindrical (smooth) probe tip. The sensing end is made of stainless steel, while the fiber core has a diameter of 1mm, encased in a plastic fiber with a polyethylene (PE) fiber sheath. The overall length of the sensor is 6ft (2m), and it is capable of operating in ambient air temperatures up to +70°C.
