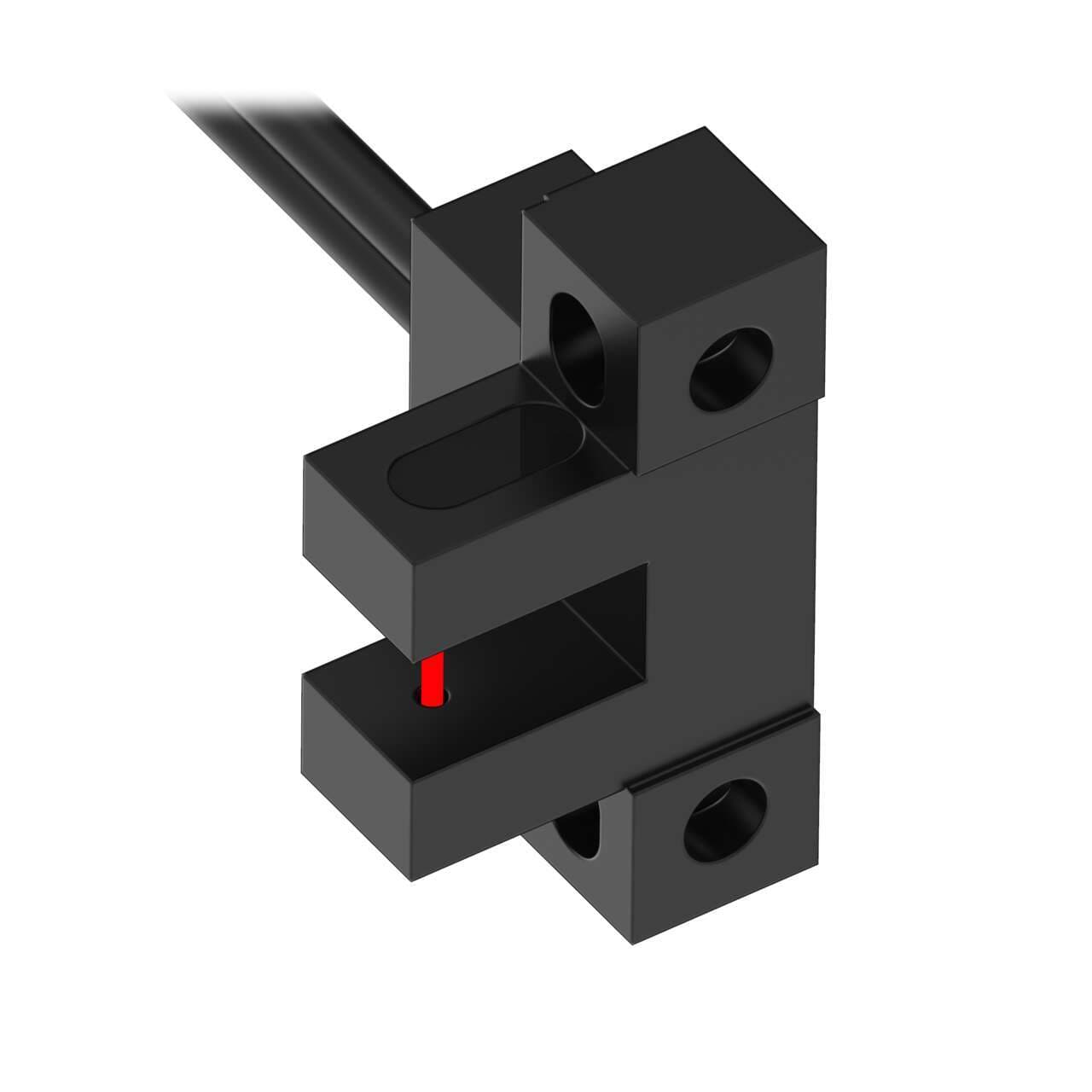

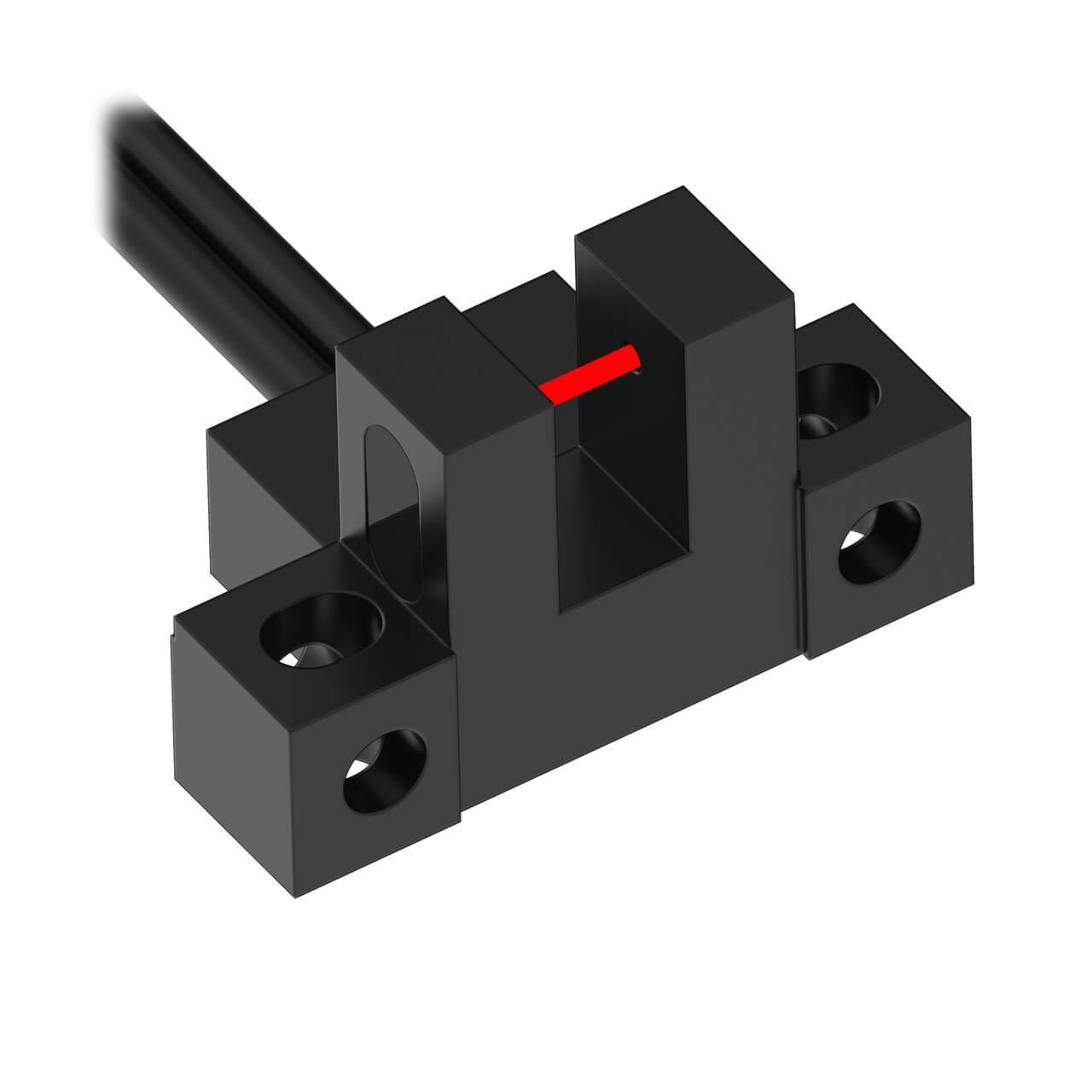

PDISM46UM5MA

Banner

Product Lifecycle: Active

Banner Engineering PDISM46UM5MA is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers for in-line sensing. This sensor falls under the Plastic fiber series, with a 1mm fiber core diameter and a 6ft (2m) length. It is built with a nickel-plated brass sensing end and a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various industrial environments. The cylindrical (threaded) end tip facilitates easy installation. This model is capable of operating in ambient air temperatures up to +85°C, making it suitable for a wide range of applications where precise fiber optic sensing is required.

PDISM46UM5MA

Banner Engineering PDISM46UM5MA is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers for in-line sensing. This sensor falls under the Plastic fiber series, with a 1mm fiber core diameter and a 6ft (2m) length. It is built with a nickel-plated brass sensing end and a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various industrial environments. The cylindrical (threaded) end tip facilitates easy installation. This model is capable of operating in ambient air temperatures up to +85°C, making it suitable for a wide range of applications where precise fiber optic sensing is required.

PDISM4 SERIES UNTERMINATED 5MM SLOT.pdf

PDISM4 SERIES UNTERMINATED 5MM SLOT.stp

Product details

PDISM4 SERIES UNTERMINATED 5MM SLOT.pdf

PDISM4 SERIES UNTERMINATED 5MM SLOT.stp

Application: Vacuum Feed ThroughNone
Max Distance: DF-G3 (mm)No Data
Fiber Sensing End Size - Mounting Area26.2 x 7.2 mm
Tariff Fiber Meters (fbm)4
Max Distance: DF-G1 (mm)No Data
Slot Width (mm)5

Measured Max Distance (mm)No Data

Max Distance: DF-G2 (mm)No Data

Termination TypePlastic Fiber Sensors

Application: Liquid LevelNo

Feature: Small Object DetectionNo

Feature: Extended RangeNo

Minimum Repeat Bending Endurance1000

Feature: Chemical ResistantNo

Integrated LensNo

Max Temp ( °C)70

TerminationFree Cut

Minimum Bend Radius (mm)2

Core Diameter (mm)1

Flex ReliefNo

RetractileNo

Sensing End Segment 1Slot

Fiber Sensing End Size26.2 x 7.2 mm

Fiber Length (m)2

Housing StyleFixtured

Fiber Sensing End TipSlot

Fiber Sheathing Material (Jacket)Polyethylene

Sensing Mode (Detailed)Slot

Sensing End Material (Specific)Polyethylene

Beam ExitRight Angle

Fiber Optic TypePlastic

Sensing Mode (General)Opposed

Quantity Included1

Product series / family nameFiber sensors

FunctionsFiber optic sensor

Length6ft / 2m

Dimensions15.5x8.3mm sensing area

Main functionFiber sensor

Designthrough-beam system / opposed mode Dual individual fiber

Ambient air temperature for operation+70 °C

Sub-range namePlastic fiber series

MaterialPlastic sensing end Plastic fiber Polyethylene fiber sheath

Primary brandBanner Engineering

Diameter1mm fiber core

Order code / Manufacturer SKU51829
