PDIRS1X326U10 Banner Through Beam Sensors

PDIRS1X326U10 on Powermatic Associates
Banner

Part#:PDIRS1X326U10

Manufacturer:Banner

Alt. Part#:97774

Product Lifecycle:Active

Get a quick Quote!

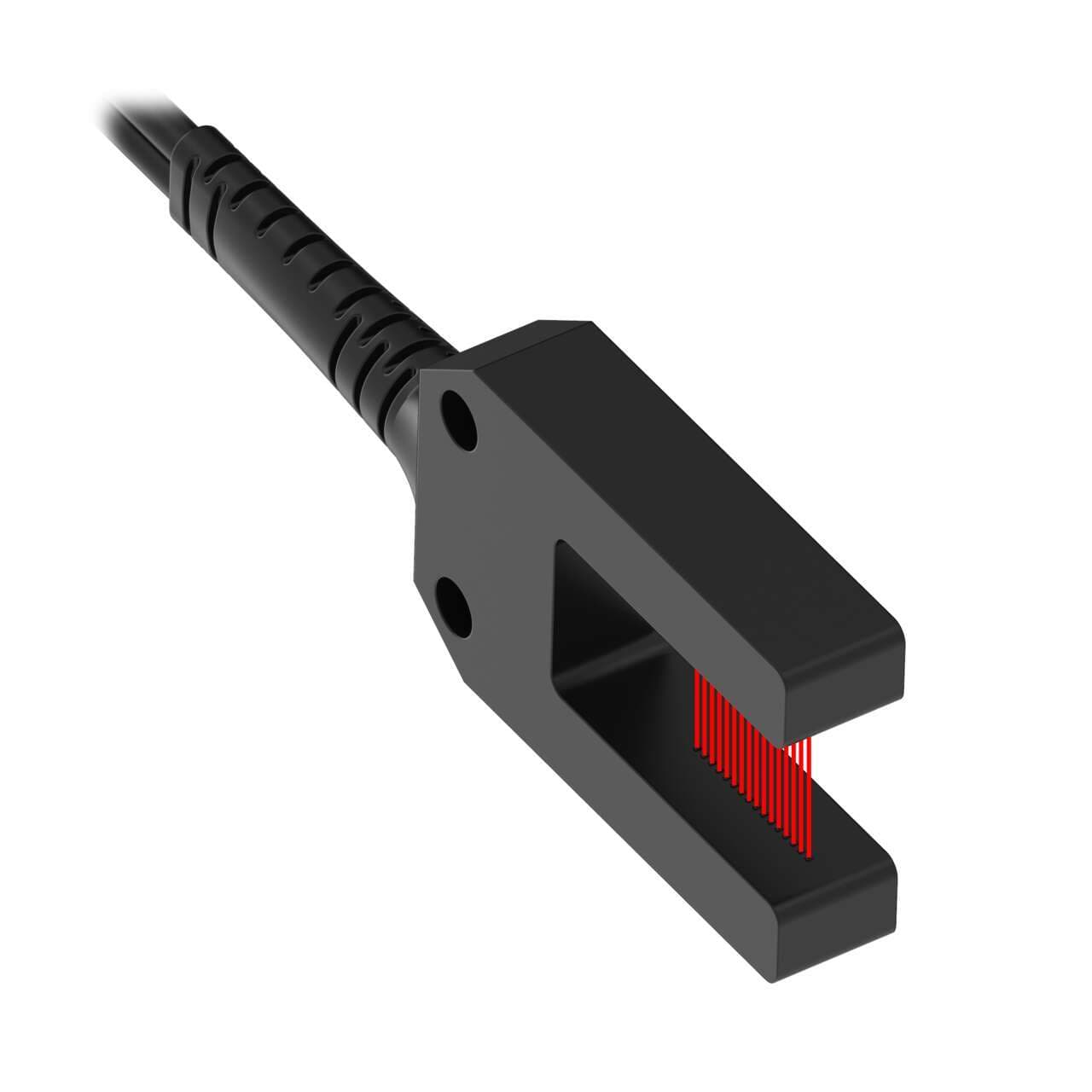

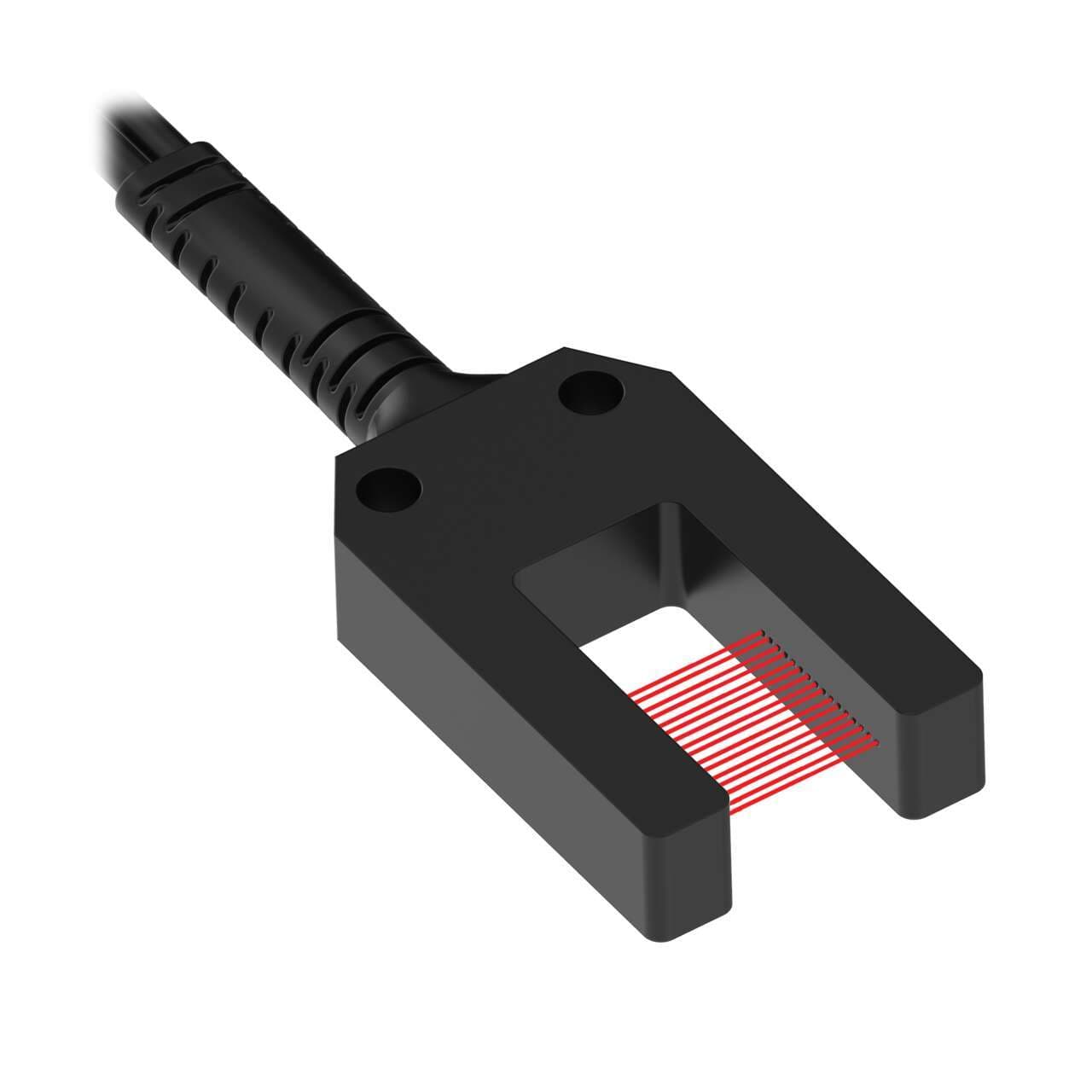

Plastic Fiber, Opposed Mode Array; Slot Width 10 mm, Core Dia.: 32 x 0.25 mm; Fiber Length 2 m, Free cut

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PDIRS1X326U10 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    TW
  • Slot Width (mm)
    10
  • Max Distance: DF-G1 (mm)
    No Data
  • Application: Vacuum Feed Through
    None
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    20.0 x 32.0 mm
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    4
  • Termination Type
    Plastic Fiber Sensors
  • Application: Liquid Level
    No
  • Feature: Extended Range
    No
  • Feature: Small Object Detection
    Yes
  • Feature: Chemical Resistant
    No
  • Minimum Repeat Bending Endurance
    10000
  • Integrated Lens
    No
  • Termination
    Free Cut
  • Max Temp ( °C)
    70
  • Minimum Bend Radius (mm)
    5
  • Flex Relief
    No
  • Core Diameter (mm)
    32 x 0.3
  • Sensing End Segment 2
    Array
  • Retractile
    No
  • Array Length (mm)
    10
  • Sensing End Segment 1
    Slot
  • Fiber Sensing End Size
    20.0 x 32.0 mm
  • Fiber Length (m)
    2
  • Sensing End Material (Specific)
    Polyethylene
  • Sensing Mode (General)
    Opposed
  • Fiber Sensing End Tip
    Array
  • Beam Exit
    Right Angle
  • Sensing Mode (Detailed)
    Array
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Quantity Included
    1
  • Housing Style
    Slot
  • Fiber Optic Type
    Plastic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PDIRS1X326U10 Description

Banner Engineering PDIRS1X326U10 is a fiber sensor designed for liquid level sensing applications. It features a through-beam system, also known as an opposed mode tubular-mounting configuration, which includes a pair of individual fibers for in-line sensing. The sensor is part of the Plastic fiber series, characterized by a 1mm fiber core diameter and a 6ft (approximately 2m) length. The sensing end and the fiber are made of plastic, with a polyethylene (PE) fiber sheath for added durability. Its design is optimized for operation in ambient air temperatures up to +70°C. The shape of the sensor is slot, making it suitable for various installation requirements.

Related documents PDIRS1X326U10 Specs

PDIRS1X326U10 PDIRS1X32 SERIES UNTERMINATED-1630955127131.stp
PDIRS1X326U10 PDIRS1X32 SERIES UNTERMINATED-1630955127126.pdf
