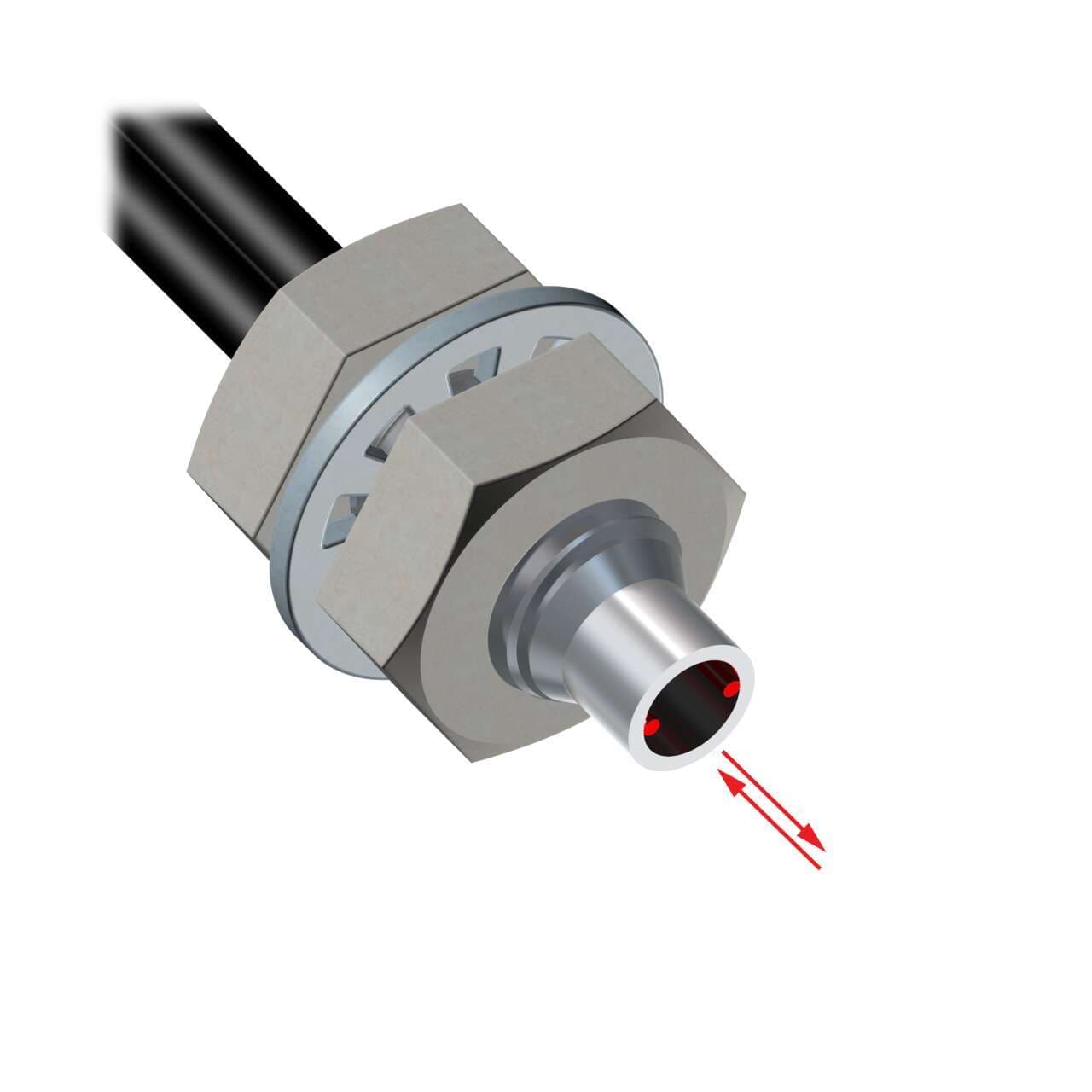

PBT26UM6M.1 Banner Through Beam Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  JP
• Fiber Sensing End Size - Mounting Area
  M6
• Max Distance: DF-G3 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Measured Max Distance (mm)
  No Data
• Termination Type
  Plastic Fiber Sensors
• Tariff Fiber Meters (fbm)
  4
• Feature: Small Object Detection
  No
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Integrated Lens
  No
• Minimum Repeat Bending Endurance
  10000
• Max Temp ( °C)
  70
• Core Diameter (mm)
  0.5
• Termination
  Free Cut
• Sensing End Segment 1
  Thread
Retractile
No
Minimum Bend Radius (mm)
10
Flex Relief
No
Fiber Sensing End Size
4.0 mm
Fiber Length (m)
2
Sensing Mode (General)
Diffuse
Beam Exit
In-line
Quantity Included
1
Fiber Sheathing Material (Jacket)
Polyethylene
Fiber Sensing End Tip
Thread
Fiber Optic Type
Plastic
Housing Style
Round
Sensing End Material (Specific)
Nickel-Plated Brass
Sensing Mode (Detailed)
Reflective
Main function
Fiber sensor
Functions
Fiber optic sensor
Ambient air temperature for operation
+70 °C
Primary brand
Banner Engineering
Shape
Cylindrical (threaded) end tip
Order code / Manufacturer SKU
65942
Design
diffuse-reflective system Bifurcated fiber
Material
Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
Sub-range name
Plastic fiber series
Length
6ft / 2m
Product series / family name
Fiber sensors
Diameter
0.5mm fiber core
Thread size
M6
