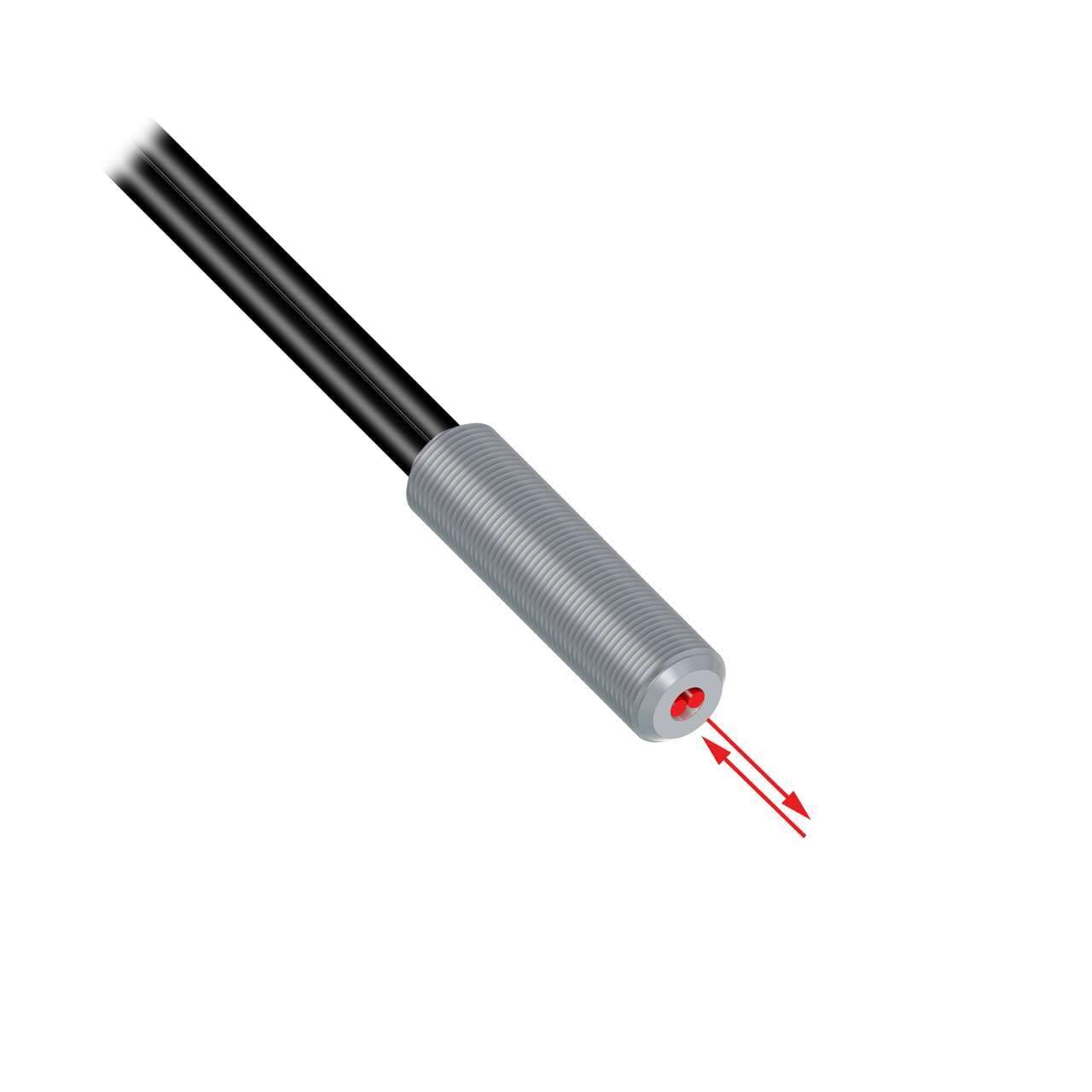

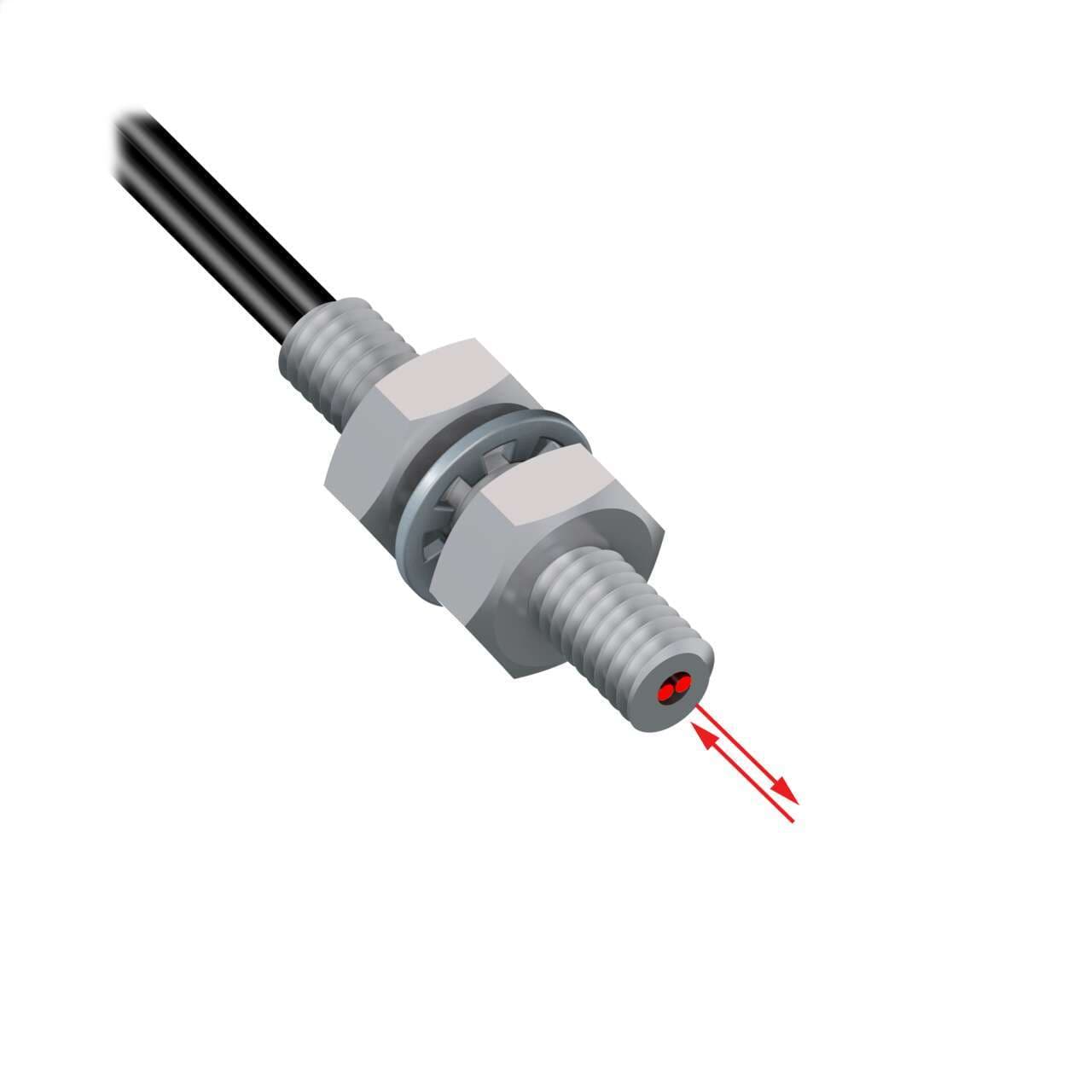

PBT26UHT2 Banner Through Beam Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  JP
• Max Distance: DF-G3 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Fiber Sensing End Size - Mounting Area
  M3
• Measured Max Distance (mm)
  No Data
• Tariff Fiber Meters (fbm)
  4
• Termination Type
  Plastic Fiber Sensors
• Application: Vacuum Feed Through
  None
• Feature: Small Object Detection
  No
• Termination
  Free Cut
• Minimum Bend Radius (mm)
  10
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Minimum Repeat Bending Endurance
  1000
• Integrated Lens
  No
• Max Temp ( °C)
  105
• Application: Liquid Level
  No
• Core Diameter (mm)
  0.5
Flex Relief
No
Sensing End Segment 1
Thread
Retractile
No
Fiber Sensing End Size
M3
Fiber Length (m)
2
Beam Exit
In-line
Fiber Sensing End Tip
Thread
Sensing End Material (Specific)
Stainless Steel
Sensing Mode (Detailed)
Reflective
Fiber Sheathing Material (Jacket)
Polyethylene
Quantity Included
1
Sensing Mode (General)
Diffuse
Housing Style
Round
Fiber Optic Type
Plastic
Functions
Fiber optic sensor
Sub-range name
Plastic fiber series
Order code / Manufacturer SKU
76825
Primary brand
Banner Engineering
Design
diffuse-reflective system Bifurcated fiber
Length
6ft / 2m
Main function
Fiber sensor
Product series / family name
Fiber sensors
Diameter
0.5mm fiber core
Thread size
M3
Shape
Cylindrical (threaded) end tip
Ambient air temperature for operation
+105 °C
Material
Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
