PBT26U-VL Banner Through Beam Sensors

PBT26U-VL on Powermatic Associates
Banner

Part#:PBT26U-VL

Manufacturer:Banner

Category:Through Beam Sensors

Alt. Part#:87532

Product Lifecycle:Active

Get a quick Quote!

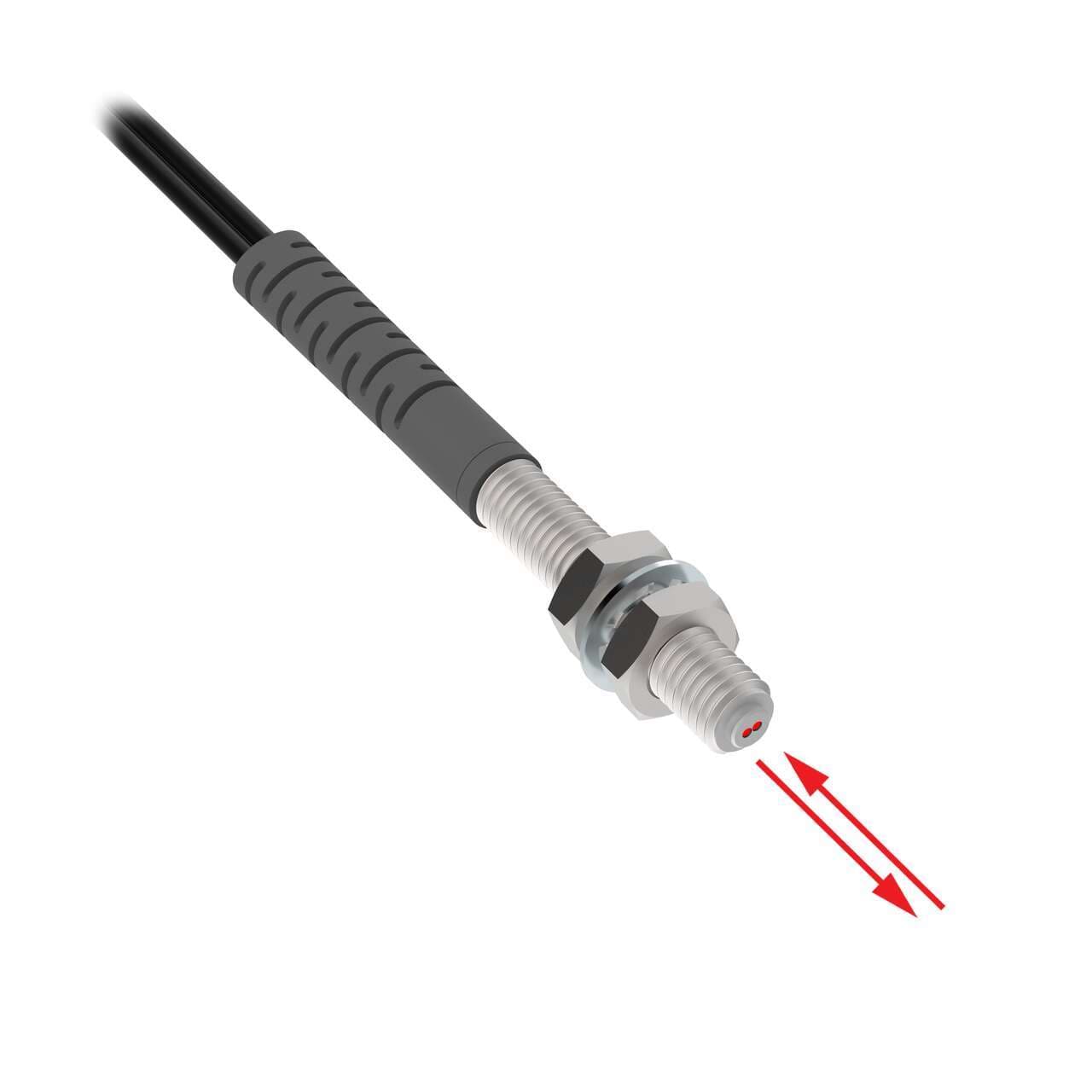

Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm; Fiber Length 2 m; Thread M3; Flex Relief; Free Cut; Vantage Line

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PBT26U-VL Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    12.3377024 g
  • Country Of Origin
    TW
  • Max Distance: DF-G1 (mm)
    65
  • Max Distance: DF-G3 (mm)
    503
  • Fiber Sensing End Size - Mounting Area
    M3
  • Feature: Small Object Detection
    No
  • Max Distance: DF-G2 (mm)
    105
  • Measured Max Distance (mm)
    65
  • Tariff Fiber Meters (fbm)
    4
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Max Temp ( °C)
    70
  • Feature: Extended Range
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Minimum Repeat Bending Endurance
    1000
  • Core Diameter (mm)
    0.5
  • Termination
    Free Cut
  • Minimum Bend Radius (mm)
    15
  • Flex Relief
    Yes
  • Sensing End Segment 1
    Thread
  • Fiber Sensing End Size
    M3
  • Retractile
    No
  • Fiber Length (m)
    2
  • Fiber Sensing End Tip
    Thread
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Beam Exit
    In-line
  • Sensing End Material (Specific)
    Nickel-Plated Brass
  • Fiber Optic Type
    Plastic
  • Sensing Mode (Detailed)
    Reflective
  • Housing Style
    Round
  • Sensing Mode (General)
    Diffuse
  • Quantity Included
    1
  • Max Range: DF-G3 (mm)
    >500mm - <=1000mm
  • Sub-range name
    Plastic fiber - Vantage Line
  • Shape
    Cylindrical (threaded) end tip
  • Material
    Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
  • Functions
    Fiber optic sensor
  • Thread size
    M3
  • Order code / Manufacturer SKU
    87532
  • Product series / family name
    Fiber sensors
  • Design
    diffuse-reflective system flex strain relief Bifurcated fiber In-line sensing
  • Primary brand
    Banner Engineering
  • Diameter
    0.5mm fiber core
  • Ambient air temperature for operation
    +70 °C
  • Main function
    Fiber sensor
  • Equivalent to
    PBT26UVL
  • Length
    6ft / 2m

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PBT26U-VL Description

Banner Engineering PBT26U-VL is a fiber optic sensor designed for diffuse-reflective system applications with a bifurcated fiber in-line sensing mechanism. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and features a 0.5mm fiber core diameter. The design includes a cylindrical (threaded) end tip made of stainless steel, coupled with a plastic fiber and a Steelskin fiber sheath for enhanced durability. The total length of the sensor is 6ft / 2m, accommodating various installation requirements.

Related documents PBT26U-VL Specs

PBT26U-VL PBT2 VALUE LINE SERIES UNTERMINATED-1630955180103.stp
PBT26U-VL PBT2 VALUE LINE SERIES UNTERMINATED-1630955180094.pdf
