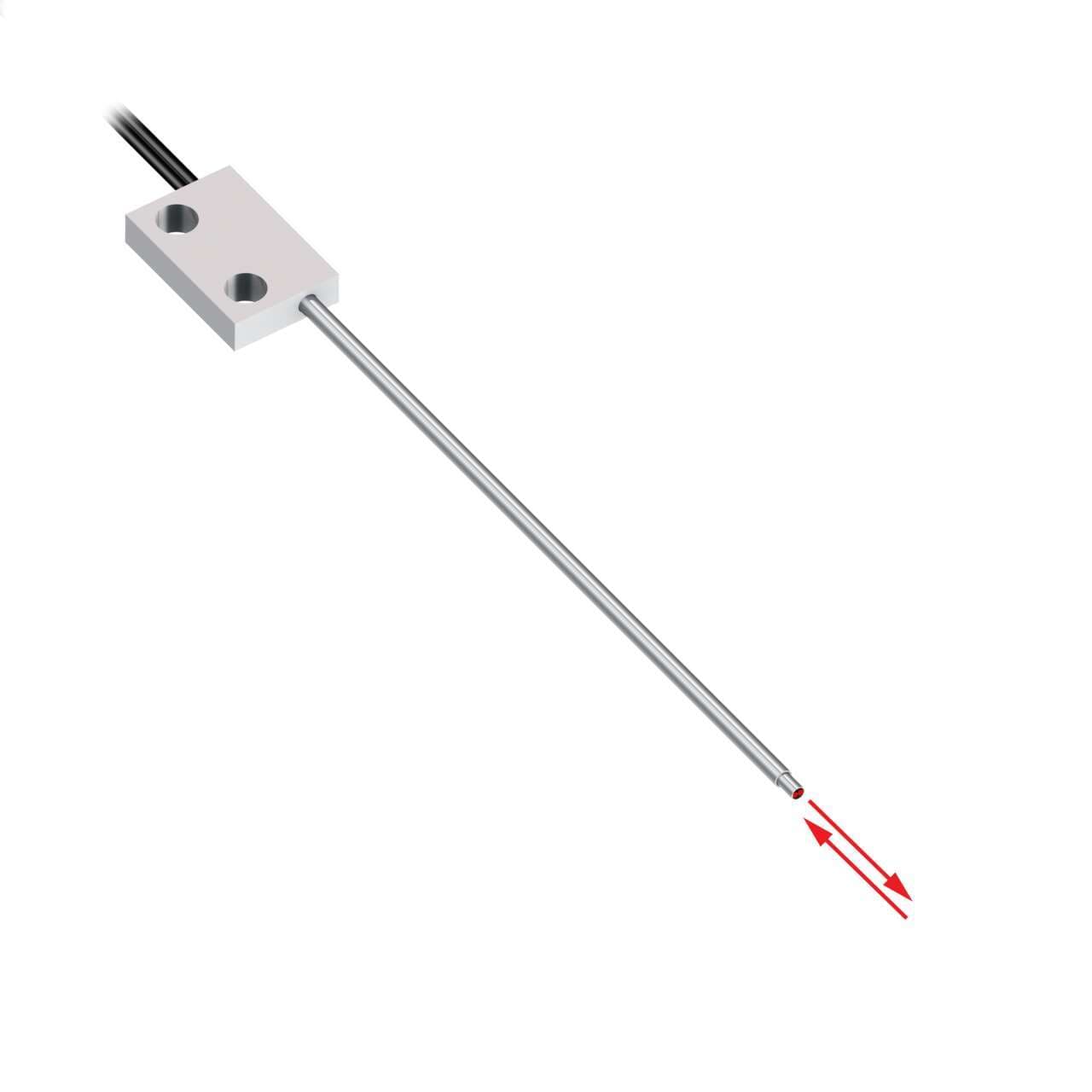

PBPF215U Banner Through Beam Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  JP
• Max Distance: DF-G3 (mm)
  No Data
• Measured Max Distance (mm)
  No Data
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Tariff Fiber Meters (fbm)
  10
• Fiber Sensing End Size - Mounting Area
  M4
• Termination Type
  Plastic Fiber Sensors
• Application: Vacuum Feed Through
  None
• Feature: Small Object Detection
  No
• Application: Liquid Level
  No
• Integrated Lens
  No
• Minimum Repeat Bending Endurance
  10000
• Max Temp ( °C)
  70
• Termination
  Free Cut
• Core Diameter (mm)
  0.5
• Minimum Bend Radius (mm)
  10
Flex Relief
No
Sensing End Segment 3
Ferrule
Retractile
No
Sensing End Segment 1
Thread
Sensing End Segment 2
Probe
Fiber Sensing End Size
1.2 mm
Fiber Length (m)
5
Fiber Sheathing Material (Jacket)
Polyethylene
Beam Exit
In-line
Sensing End Material (Specific)
Stainless Steel
Fiber Sensing End Tip
Ferrule
Sensing Mode (General)
Diffuse
Sensing Mode (Detailed)
Reflective
Quantity Included
1
Fiber Optic Type
Plastic
Housing Style
Round
Shape
Cylindrical (smooth) probe tip
Sub-range name
Plastic fiber series
Material
Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
Main function
Fiber sensor
Diameter
1.2mm (end) 0.5mm fiber core
Order code / Manufacturer SKU
61181
Primary brand
Banner Engineering
Design
diffuse-reflective system Bifurcated fiber In-line sensing
Ambient air temperature for operation
+70 °C
Product series / family name
Fiber sensors
Functions
Fiber optic sensor
Thread size
M4
Length
15ft / 4.5m
