PBFM46UHTMLR Banner Through Beam Sensors

PBFM46UHTMLR on Powermatic Associates
Banner
  • PBFM46UHTMLR
  • PBFM46UHTMLR

Part#:PBFM46UHTMLR

Alt. Part#:95350

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Diffuse Reflective,Core Dia.: 1 mm; High Temp. Fiber Length 2 m; Ferrule, PEEK; Free cut

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    5.9 x 4.9 mm
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    4
  • Application: Vacuum Feed Through
    None
  • Termination Type
    Plastic Fiber Sensors
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Core Diameter (mm)
    1
  • Max Temp ( °C)
    105
  • Termination
    Free Cut
  • Minimum Bend Radius (mm)
    15
  • Retractile
    No
  • Fiber Sensing End Size
    4.9 mm
  • Fiber Length (m)
    2
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Quantity Included
    1
  • Housing Style
    Round
  • Feature: Extended Range
    No
  • Minimum Repeat Bending Endurance
    1000
  • Flex Relief
    No
  • Sensing End Segment 1
    Ferrule
  • Sensing Mode (General)
    Diffuse
  • Fiber Sensing End Tip
    Ferrule
  • Sensing Mode (Detailed)
    Reflective
  • Sensing End Material (Specific)
    Polyethylene
  • Beam Exit
    In-line
  • Fiber Optic Type
    Plastic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBFM46UHTMLR on Powermatic Associates is $160.00. Order now.

About the product

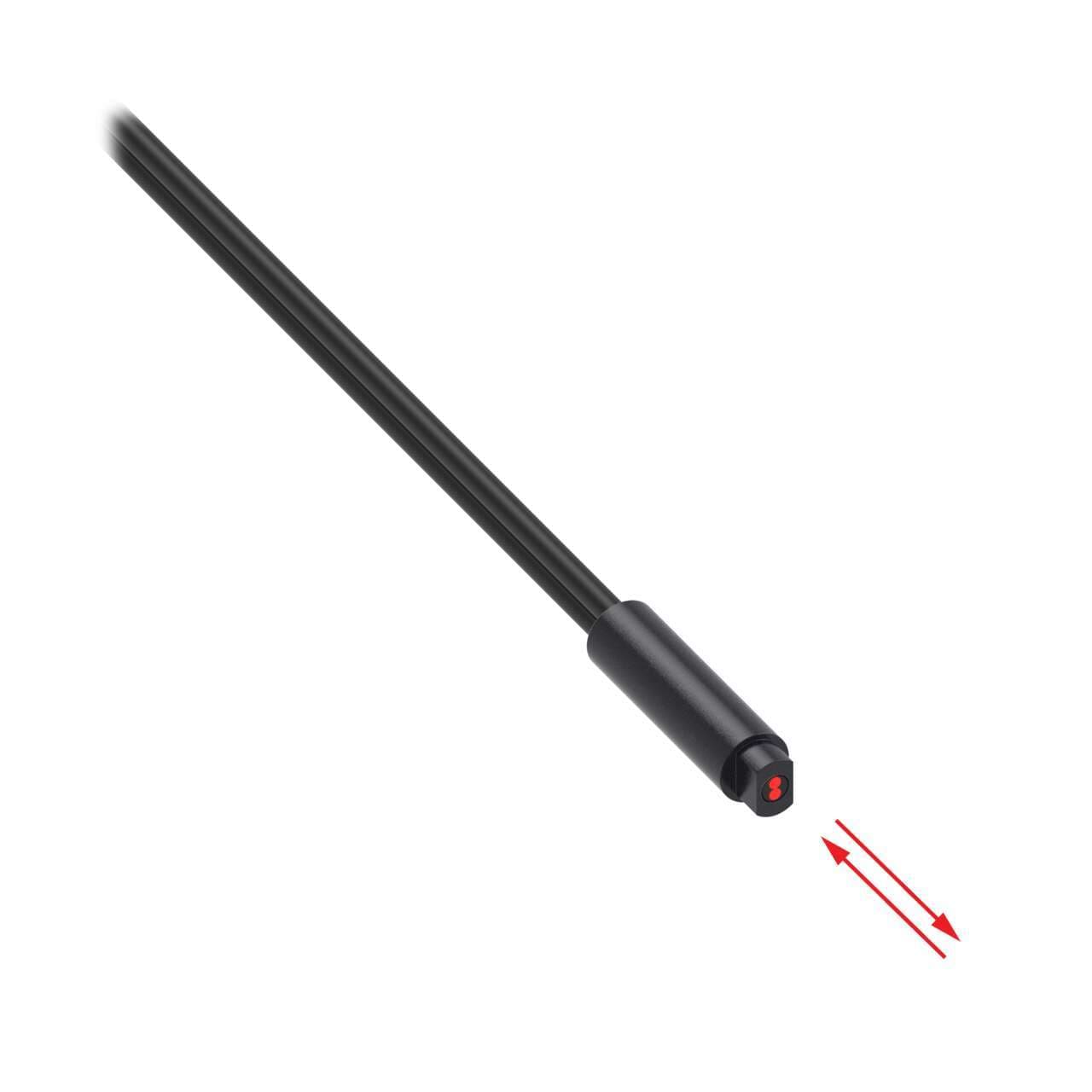

Banner Engineering PBFM46UHTMLR is a fiber optic sensor designed for diffuse-reflective system applications, featuring a miniature ferrule end tip and bifurcated fiber in-line sensing. This sensor operates at an ambient air temperature up to +70°C. It is part of the Plastic fiber series, with a cylindrical (smooth) end tip shape. The sensing end is made of stainless steel, while the fiber is plastic with a polyethylene (PE) fiber sheath. The diameter of the sensor is 3mm at the end with a 1mm fiber core, and it has a total length of 6ft / 2m.
