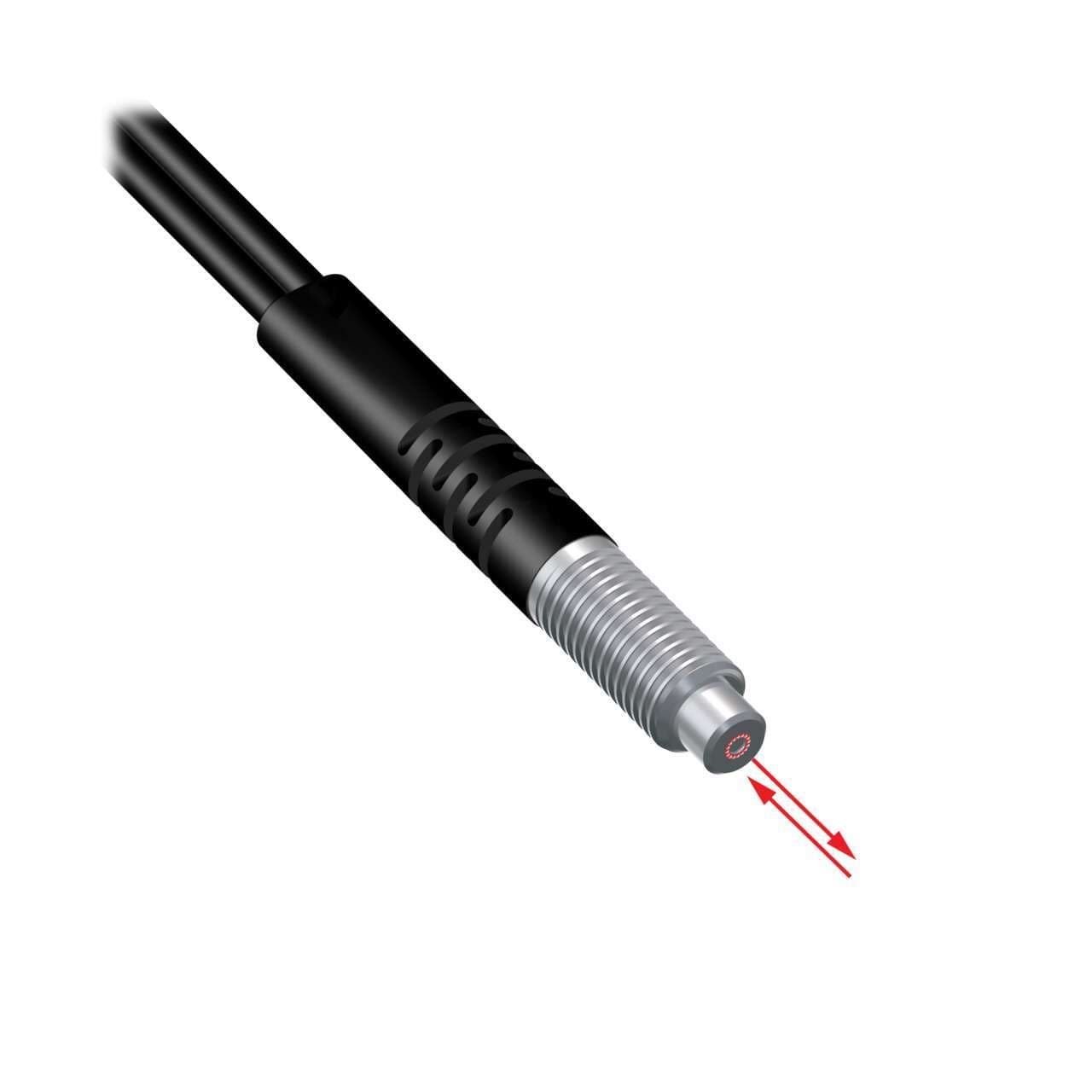

PBCT46UMFR Banner Through Beam Sensors

Product Details

• Weight
  40.82328 g
• Country Of Origin
  TW
• Max Distance: DF-G2 (mm)
  No Data
• Fiber Sensing End Size - Mounting Area
  M6
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Measured Max Distance (mm)
  No Data
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Feature: Small Object Detection
  No
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Tariff Fiber Meters (fbm)
  34
• Termination Type
  Plastic Fiber Sensors
• Integrated Lens
  No
• Minimum Repeat Bending Endurance
  1000
• Termination
  Free Cut
• Max Temp ( °C)
  70
• Minimum Bend Radius (mm)
  25
• Core Diameter (mm)
  1.0 & 16 x 0.3
Sensing End Segment 2
Ferrule
Flex Relief
Yes
Retractile
No
Sensing End Segment 1
Thread
Fiber Sensing End Size
M6
Fiber Length (m)
2
Fiber Sensing End Tip
Ferrule
Fiber Sheathing Material (Jacket)
Polyethylene
Beam Exit
In-line
Sensing End Material (Specific)
Stainless Steel
Sensing Mode (Detailed)
Coaxial
Fiber Optic Type
Plastic
Housing Style
Round
Sensing Mode (General)
Diffuse
Quantity Included
1
Sub-range name
Plastic fiber series
Primary brand
Banner Engineering
Product series / family name
Fiber sensors
Length
6ft / 2m
Design
diffuse-reflective system Bifurcated fiber In-line / coaxial sensing
Order code / Manufacturer SKU
16117
Main function
Fiber sensor
Diameter
1mm fiber core
Thread size
M6
Shape
Cylindrical (threaded) end tip
Functions
Fiber optic sensor
Ambient air temperature for operation
+70 °C
Material
Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
