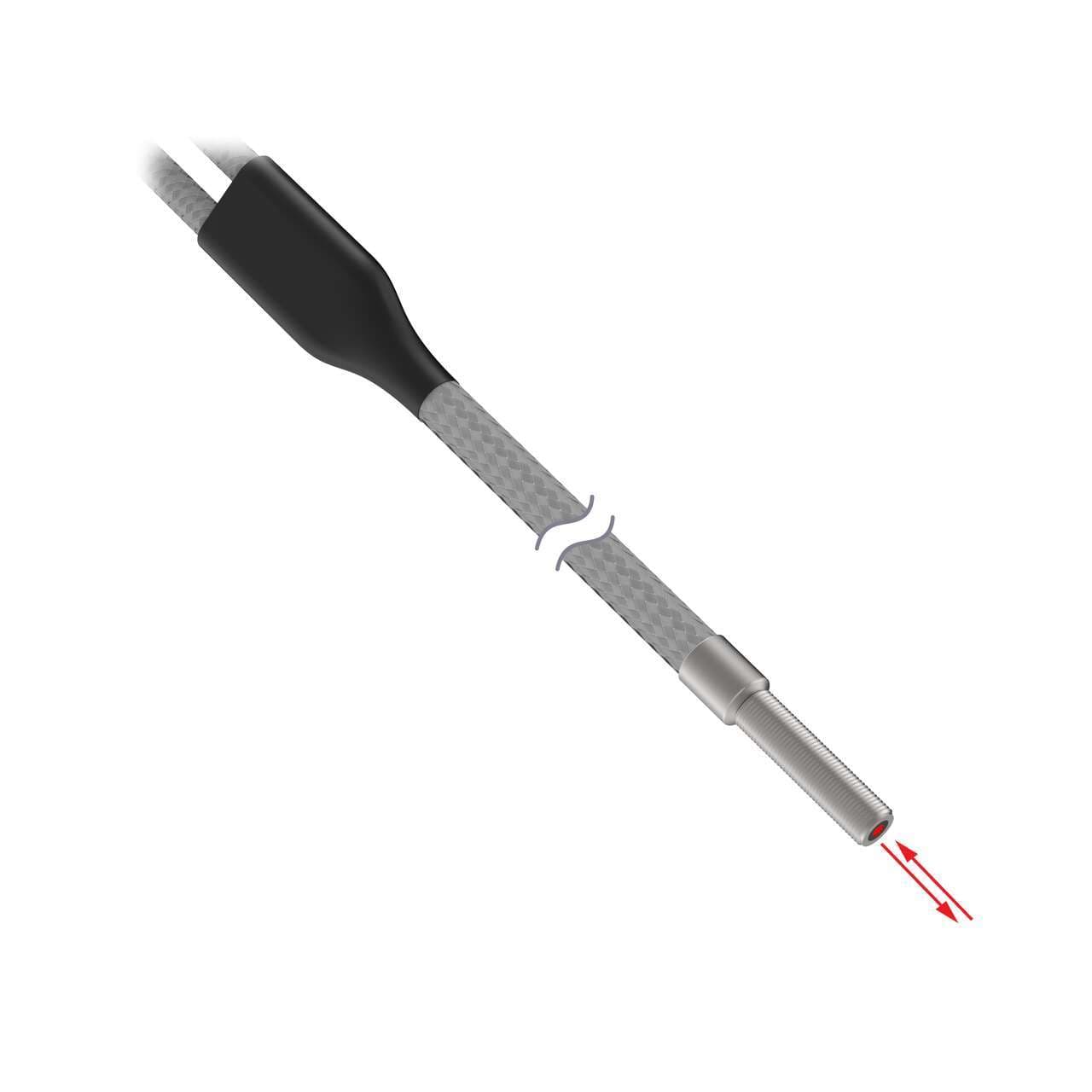

PBCT26TMB5 Banner Through Beam Sensors
Part#:PBCT26TMB5
Alt. Part#:70851
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 2 m; Coaxial, Thread; SteelSkin, TMB5 Termination
Product Details
- Weight 54.43104 g
- Country Of Origin JP
- Max Distance: DF-G1 (mm) 72
- Max Distance: DF-G2 (mm) 116
- Fiber Sensing End Size - Mounting Area M3
- Termination Type Plastic Fiber Sensors
- Tariff Fiber Meters (fbm) 20
- Max Distance: DF-G3 (mm) 559
- Measured Max Distance (mm) 72
- Application: Vacuum Feed Through None
- Application: Liquid Level No
- Feature: Small Object Detection No
- Minimum Repeat Bending Endurance 2000
- Feature: Extended Range No
- Feature: Chemical Resistant No
- Integrated Lens No
- Max Temp ( °C) 70
- Termination Terminated
- Flex Relief No
- Retractile No
- Sensing End Segment 1 Thread
- Fiber Length (m) 2
- Fiber Sensing End Tip Thread
- Minimum Bend Radius (mm) 12
- Core Diameter (mm) 0.5 & 9 x 0.3
- Fiber Sensing End Size M3
- Max Range: DF-G3 (mm) >500mm - <=1000mm
- Quantity Included 1
- Fiber Optic Type Plastic
- Housing Style Round
- Sensing Mode (General) Diffuse
- Sensing Mode (Detailed) Coaxial
- Beam Exit In-line
- Fiber Sheathing Material (Jacket) STEELSKIN
- Sensing End Material (Specific) Stainless Steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBCT26TMB5 on Powermatic Associates is $261.00. Order now.
About the product
Banner Engineering PBCT26TMB5 is a fiber optic sensor designed for diffuse-reflective system applications, featuring a bifurcated fiber in-line/coaxial sensing mechanism. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and comes with a 0.5mm fiber core diameter. It has a cylindrical (threaded) end tip shape, ensuring easy installation. The sensing end is made of stainless steel, while the fiber is encased in a plastic fiber with a Steelskin fiber sheath for enhanced durability. The total length of the sensor is 6ft / 2m, accommodating various installation requirements.
PBCT26TMB5 Related Documents
Similar products from: Banner Through Beam Sensors
Manufacturer warranty
PBCT26TMB5 Banner
$261.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$261.00
$261.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare PBCT26TMB5 with other Through Beam Sensors products
Weight
Country Of Origin
Max Distance: DF-G1 (mm)
Max Distance: DF-G2 (mm)
Fiber Sensing End Size - ...
Termination Type
Tariff Fiber Meters (fbm)
Max Distance: DF-G3 (mm)
Measured Max Distance (mm...
Application: Vacuum Feed ...
Selected product
PBCT26TMB5
Banner
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 2 m; Coaxial, Threa...
Weight54.43104 g
Country Of OriginJP
Max Distance: DF-G1 (mm)72
Max Distance: DF-G2 (mm)116
Fiber Sensing End Size - Mounting AreaM3
Termination TypePlastic Fiber Sensors
Tariff Fiber Meters (fbm)20
Max Distance: DF-G3 (mm)559
Measured Max Distance (mm)72
Application: Vacuum Feed ThroughNone
PBT26UMSSMFF
Banner
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm; Fiber Length 2 m; Thread; Free cut
Weight25.401152 g
Country Of OriginTW
Max Distance: DF-G1 (mm)-
Max Distance: DF-G2 (mm)-
Fiber Sensing End Size - Mounting Area-
Termination Type-
Tariff Fiber Meters (fbm)-
Max Distance: DF-G3 (mm)-
Measured Max Distance (mm)-
Application: Vacuum Feed Through-
P22-C1
Banner
Plastic Fiber, Convergent Distance 3 mm; Flat Pack Plastic Housing; 2 m Length; Free Cut
Weight36.28736 g
Country Of OriginJP
Max Distance: DF-G1 (mm)-
Max Distance: DF-G2 (mm)-
Fiber Sensing End Size - Mounting Area-
Termination Type-
Tariff Fiber Meters (fbm)-
Max Distance: DF-G3 (mm)-
Measured Max Distance (mm)-
Application: Vacuum Feed Through-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of PBCT26TMB5?
Purchase the PBCT26TMB5 from Powermatic Associates at the price of $261.00. Order today.
Out if stock but available for backorder.
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 2 m; Coaxial, Thread; SteelSkin, TMB5 Termination
