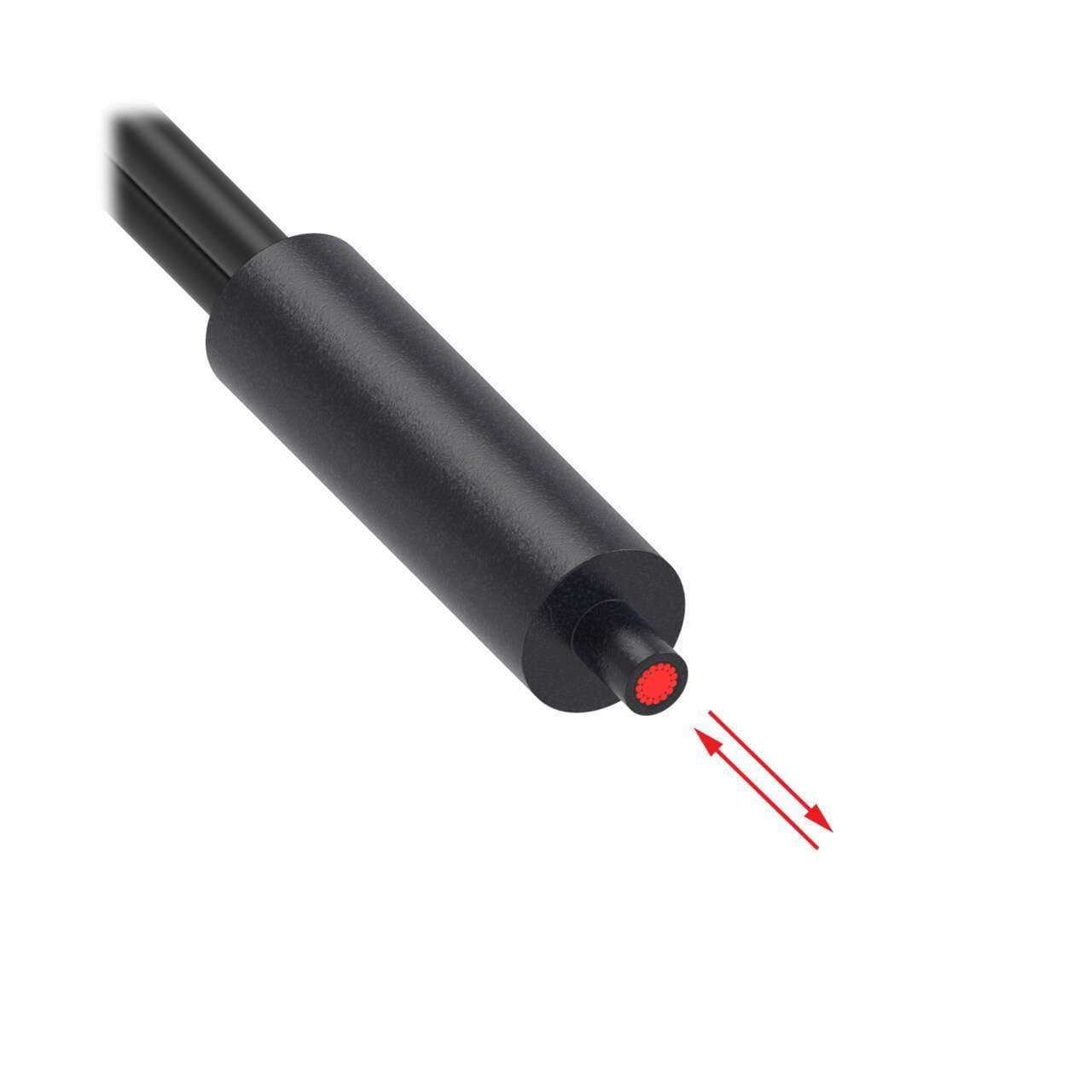

PBCFP46UMLR Banner Through Beam Sensors

PBCFP46UMLR on Powermatic Associates
Banner
  • PBCFP46UMLR
  • PBCFP46UMLR

Part#:PBCFP46UMLR

Alt. Part#:16014

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Diffuse Reflective; Core Dia.: 1.0 mm & 16 x 0.25; Fiber Length 2 m; Coaxial, 5.9 mm dia. Plastic Ferrule, 2.3 mm dia. Probe; Free Cut

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    5.9 mm
  • Max Distance: DF-G3 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Termination Type
    Plastic Fiber Sensors
  • Tariff Fiber Meters (fbm)
    20
  • Feature: Small Object Detection
    No
  • Application: Liquid Level
    No
  • Application: Vacuum Feed Through
    None
  • Feature: Extended Range
    No
  • Minimum Repeat Bending Endurance
    10000
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Termination
    Free Cut
  • Minimum Bend Radius (mm)
    5
  • Core Diameter (mm)
    1.0 & 16 x 0.3
  • Sensing End Segment 1
    Ferrule
  • Max Temp ( °C)
    70
  • Sensing End Segment 2
    Probe
  • Flex Relief
    No
  • Retractile
    No
  • Fiber Sensing End Size
    2.3 mm
  • Fiber Length (m)
    2
  • Fiber Sensing End Tip
    Probe
  • Sensing End Material (Specific)
    Polyethylene
  • Beam Exit
    In-line
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Fiber Optic Type
    Plastic
  • Housing Style
    Round
  • Sensing Mode (Detailed)
    Coaxial
  • Quantity Included
    1
  • Sensing Mode (General)
    Diffuse

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBCFP46UMLR on Powermatic Associates is $127.00. Order now.

About the product

Banner Engineering PBCFP46UMLR is a fiber optic sensor designed for diffuse-reflective system applications, featuring an end tip lens with a bifurcated fiber in-line/coaxial sensing mechanism. This sensor operates effectively at an ambient air temperature up to +70°C. It is part of the Plastic fiber series, characterized by a cylindrical (smooth) end tip. The sensor's construction includes a plastic sensing end, plastic fiber, and a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various environments. The fiber core is composed of 1x0.5mm + 9x0.25mm dimensions, and the sensor has a total length of 1ft / 300mm, accommodating a range of installation requirements.
