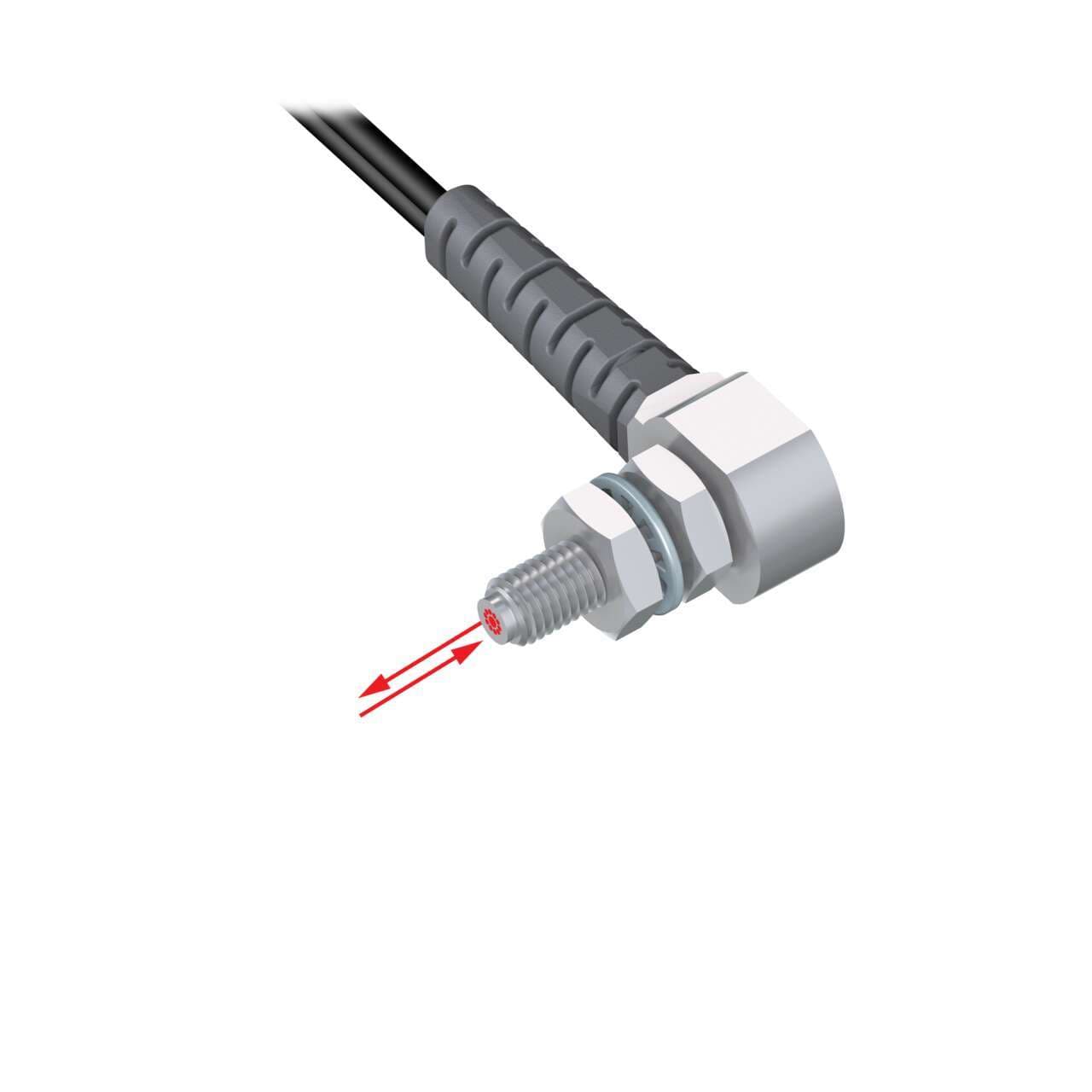

PBCAT26UTA-VL Banner Through Beam Sensors
Part#:PBCAT26UTA-VL
Alt. Part#:97755
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber; Diffuse Reflective; Core Dia.: 0.5 mm & 10 x 0.25 mm; Fiber Length 2 m; Right-Angle; Thread; Bend Radius 15 mm; Flex Relief; Free Cut; Vantage Line
Product Details
- Weight 12.9727312 g
- Country Of Origin TW
- Fiber Sensing End Size - Mounting Area M4
- Max Distance: DF-G2 (mm) 176
- Measured Max Distance (mm) 109
- Integrated Lens No
- Application: Vacuum Feed Through None
- Application: Liquid Level No
- Feature: Chemical Resistant No
- Flex Relief Yes
- Sensing End Material (Specific) Stainless Steel
- Max Distance: DF-G1 (mm) 109
- Max Distance: DF-G3 (mm) 845
- Tariff Fiber Meters (fbm) 22
- Termination Type Plastic Fiber Sensors
- Feature: Extended Range No
- Feature: Small Object Detection No
- Max Temp ( °C) 70
- Minimum Repeat Bending Endurance 1000
- Termination Free Cut
- Minimum Bend Radius (mm) 15
- Core Diameter (mm) 0.5
- Sensing End Segment 3 Thread
- Retractile No
- Sensing End Segment 2 Thread
- Sensing End Segment 1 Sideview
- Fiber Sensing End Size M2.6
- Fiber Length (m) 2
- Fiber Sensing End Tip Thread
- Sensing Mode (General) Diffuse
- Beam Exit Right Angle
- Sensing Mode (Detailed) Coaxial
- Fiber Sheathing Material (Jacket) Polyethylene
- Housing Style Round
- Quantity Included 1
- Max Range: DF-G3 (mm) >500mm - <=1000mm
- Fiber Optic Type Plastic
- Primary brand Banner Engineering
- Diameter 0.5mm fiber core
- Material Plastic fiber Plastic fiber Polyethylene fiber sheath
- Product series / family name Fiber sensors
- Main function Fiber sensor
- Thread size M4
- Sub-range name Plastic fiber - Vantage Line
- Length 6ft / 2m
- Functions Fiber optic sensor
- Design diffuse-reflective system flex strain relief Bifurcated fiber Side / right-angled coaxial sensing
- Order code / Manufacturer SKU 97755
- Shape Cylindrical (threaded) end tip
- Ambient air temperature for operation +70 °C
- Equivalent to PBCAT26UTAVL
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBCAT26UTA-VL on Powermatic Associates is $84.00. Order now.
About the product
Banner Engineering PBCAT26UTA-VL is a fiber optic sensor designed for diffuse-reflective system applications, featuring a ferrule end tip and bifurcated fiber in-line/coaxial sensing. This sensor operates effectively at an ambient air temperature up to +85°C. It is part of the Plastic fiber series, with a cylindrical (smooth) end tip shape. The sensor's construction includes a stainless steel sensing end, plastic fiber, and a polyethylene (PE) fiber sheath. It has a diameter of 1x0.5mm plus 4x0.25mm for the fiber core and comes in a length of 6ft / 2m.
