Powermatic Associates Logo

M25URB-13466 W/30 Banner Ultrasonic Sensors

M25URB-13466 W/30 on Powermatic Associates
Banner
  • M25URB-13466 W/30
  • M25URB-13466 W/30

Part#:M25URB-13466 W/30

Alt. Part#:13466

Manufacturer:Banner

Category:Ultrasonic Sensors

Product Lifecycle:Active

Product description

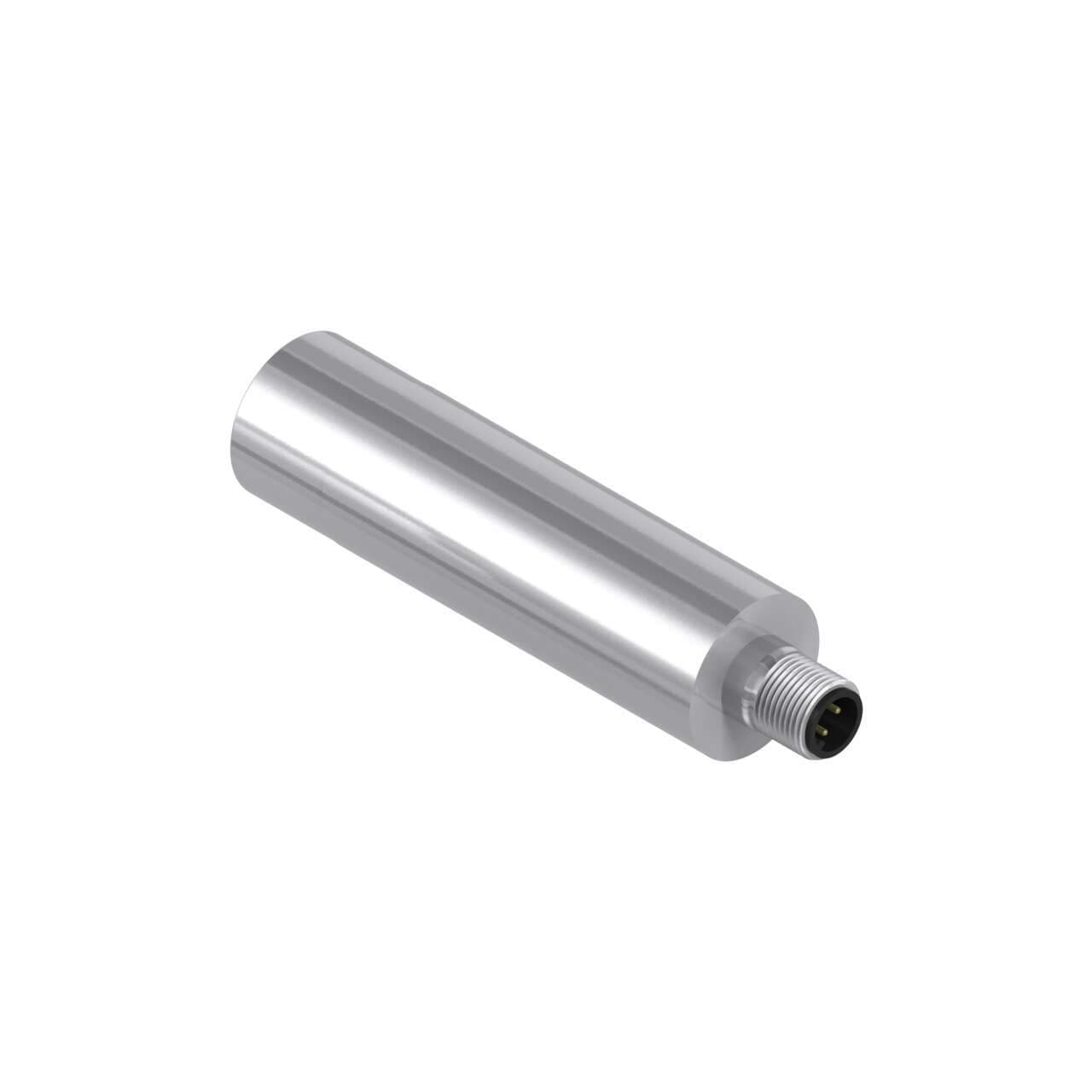

M25U Series Ultrasonic Receiver; Range: 500 mm (Normal Speed); 250 mm (High Speed); Input: 10-30 V dc; Rating: IP68; Output: Bipolar (1 NPN & 1 PNP); 30 ft 5-wire Plus Drain Cable With Polypropylene Jacket

Product Details

  • Weight
    563.361264 g
  • Country Of Origin
    US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M25URB-13466 W/30 on Powermatic Associates is $2,313.00. Order now.

About the product

Banner Engineering M25URB-13466 W/30 is an ultrasonic sensor designed for through-beam system applications, part of the M25U series. This sensor functions as a receiver alone, featuring a cylindrical M25 threaded/barrel shape with a stainless steel housing. It is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads for connectivity. The sensor is equipped with protection functions against short-circuit incidents. It operates within a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The M25URB-13466 W/30 can function in ambient air temperatures ranging from -20 to +70 degrees Celsius. It has a thread size of M25 and offers a sensing distance of up to 500mm. Additionally, it includes 1 x digital output (PNP/NPN transistor) and operates at a transmission frequency of 140kHz.
