M25UEQ8 Banner Ultrasonic Sensors
Part#:M25UEQ8
Manufacturer:Banner
Alt. Part#:79745
Product Lifecycle:Active
Get a quick Quote!

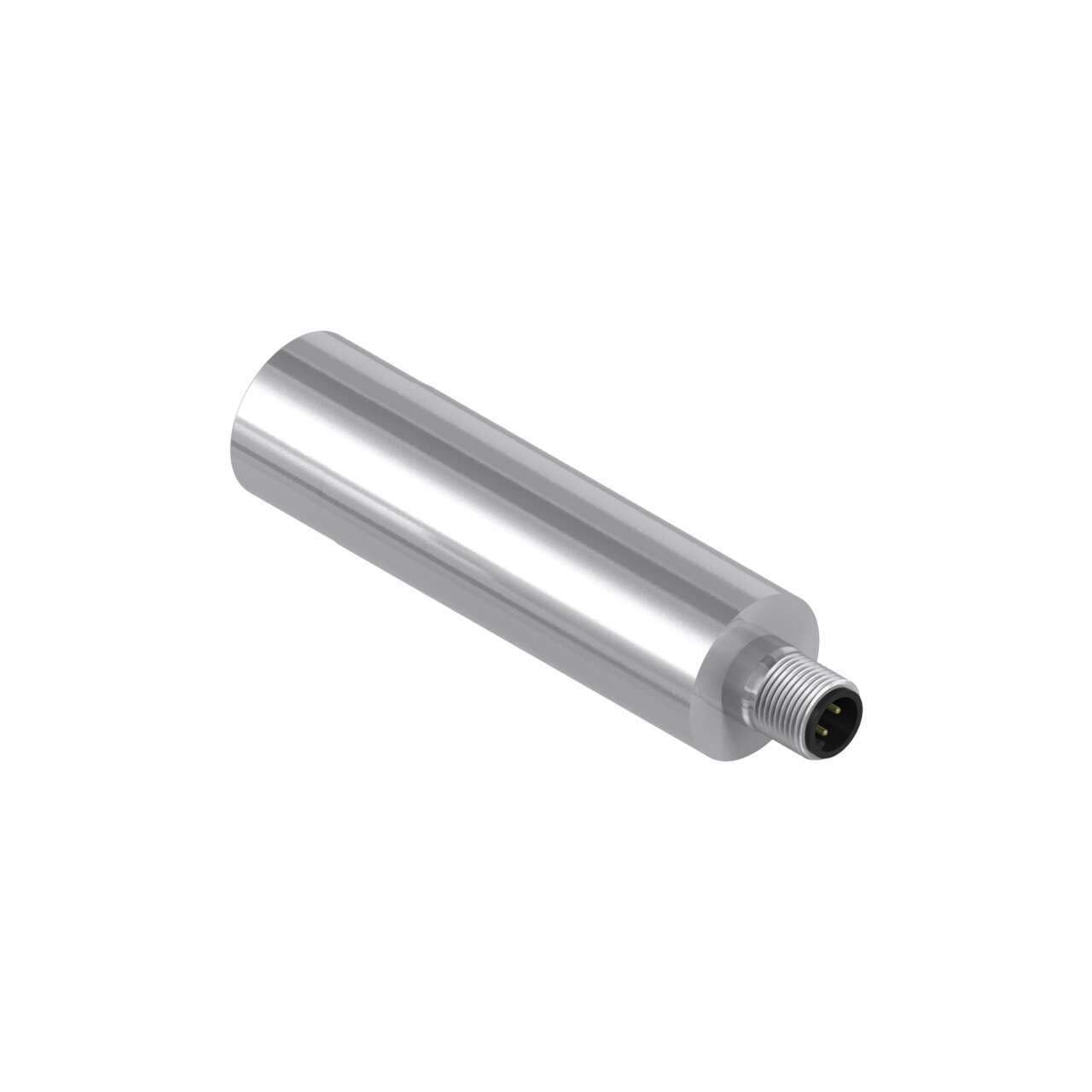

M25U Series Ultrasonic Emitter; Range: 500 mm (Normal Speed); 250 mm (High Speed); Input: 10-30 V dc; Rating: IP69K; Output: Bipolar (1 NPN & 1 PNP); 5-pin M12 QD
About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M25UEQ8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 158.7572 g
- Country Of Origin US
- 1-wire Serial Interface No
- Profibus No
- Wireless No
- SSI No
- RS-422 No
- RS-485 No
- RS-232 No
- PROFINET No
- IO Link No
- Application: Ultrasonic Yes
- Common Ethernet Protocol No
- Feature: Chemical Resistant Yes
- Feature: Timing (Hold/Delay) No
- Feature: Ecolab Certified Yes
- Feature: Washdown Rated Yes
- Feature: Clear Object Detection Yes
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Power/Current Consumption (exclusive of load) 38 mA
- Min Operating Temperature (°C) -20
- Ultrasonic Frequency (kHz) 140
- Barrel Diameter (mm) 25
- Minimum Response Time (ms) 3
- Max Op. Relative Humidity Non-Condensing (%) 95 at 50°C
- NEMA Rating NEMA 6
- Max Operating Temperature (°C) 70
- Output Protection Protected against short circuit conditions
- IP Rating IP67; IP69
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Power Supply 10-30 V dc
- Number of Pins 4
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Indicator LED(s)
- Connection Integral QD
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 250
- Max Sensing Distance (mm) 500
- Power DC
- PC Configurable No
- Housing Style Barrel
- Device Type Sensor
- Primary Housing Material Stainless Steel
- Max Measurement Range >100 mm - <=500 mm
- Sensing Mode (Detailed) Emitter
- Sensing Mode (General) Opposed
- Sensing Beam Ultrasonic
- Product series / family name U-GAGE series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M25
- Main function Sensor (Ultrasonic)
- Protection functions Short-circuit
- Sub-range name M25U series
- Shape Cylindrical threaded/barrel
- Ambient air temperature for operation -20...+70 °C
- Functions Ultrasonic emitter green LED (power ON) amber LED (output state)
- Degree of protection IP67 NEMA 6
- Emission frequency 140kHz
- Primary brand Banner Engineering
- Design through-beam system / opposed mode
- Material Stainless steel housing
- Order code / Manufacturer SKU 79745
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Compliant with standard(s) CE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
M25UEQ8 Description
Banner Engineering M25UEQ8 is an ultrasonic sensor designed for precise detection tasks, belonging to the M25U series. This sensor operates as an emitter in a through-beam system or opposed mode configuration. It features a durable stainless steel housing in an M25 cylindrical threaded/barrel shape, ensuring robustness in various environments. The sensor is pre-equipped with a 4-pin Euro-style M12 connector for straightforward installation. It offers protection against short-circuits, enhancing its operational reliability. The M25UEQ8 operates within a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function in ambient air temperatures ranging from -20 to +70°C. It boasts a high degree of protection, rated at IP67, IP69, and NEMA 6, making it suitable for demanding applications. The sensor has a thread size of M25 and is capable of sensing distances up to 500mm, with a transmission frequency of 140kHz.
