LX9E Banner Measurement Sensors

Name: LX9E
Brand: Banner

Banner LX9E LX Series: Emitter; Standard Range; Range: Normal 300 mm - 2 m; Input 10-30 V dc; Output: No output; 2 m (6.5 ft) Cable

Part#:LX9E

Manufacturer:Banner

Alt. Part#:71794

Product Lifecycle:Active

Get a quick Quote!

LX Series: Emitter; Standard Range; Range: Normal 300 mm - 2 m; Input 10-30 V dc; Output: No output; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LX9E Banner price in the box on the right side or send a quick quote.

Product Details

Weight
462.66384 g
Country Of Origin
MX
NEMA Rating
N/A
Minimum Object Detection [mm]
9.5
Max Op. Temperature (°C)
70
Slot Overall Depth (mm)
31.8
Minimum Object Detection (mm)
9.5
Min Op. Temperature (°C)
-20
IP Rating
IP65
Max Op. Relative Humidity (%)
90% @ 50°C
Special Feature: Remote Teach
No
Indicator
LEDs
Operation
N/A
Lens Material
Acrylic
Adjustments
N/A
Repeatability (µs)
N/A
Power Supply/Supply Voltage
10-30 V dc
Output response time (ms)
2.4 ON/7.5 OFF
Number of Pins
5
Connection
Cable

Primary Housing Material

Aluminum

Housing Style

Array

Slot Depth/Array Length (mm)

218

Sensing Mode (Detailed)

Emitter

Cable Length (m)

Quick Disconnect Type

No QD

Max Sensing Range (mm)

2000

Power

Primary brand

Banner Engineering

Functions

Standard-range part-sensing light screen cross-hatched array emitter green LED (power ON) red LED (failure)

Compliant with standard(s)

cURus CE

Main function

Sensor (Array)

Material

Aluminium housing Acrylic lns. Zinc (die-cast) (end cap)

Dimensions

218mm array length

Detectable object size

9.5mm

Sub-range name

LX series

Degree of protection

IP65

Order code / Manufacturer SKU

71794

Net Height (mm)

265.8 mm

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Ambient air temperature for operation

-20...+70 °C

Net Width (mm)

25.4 mm

Net Depth (mm)

31.8 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LX9E Description

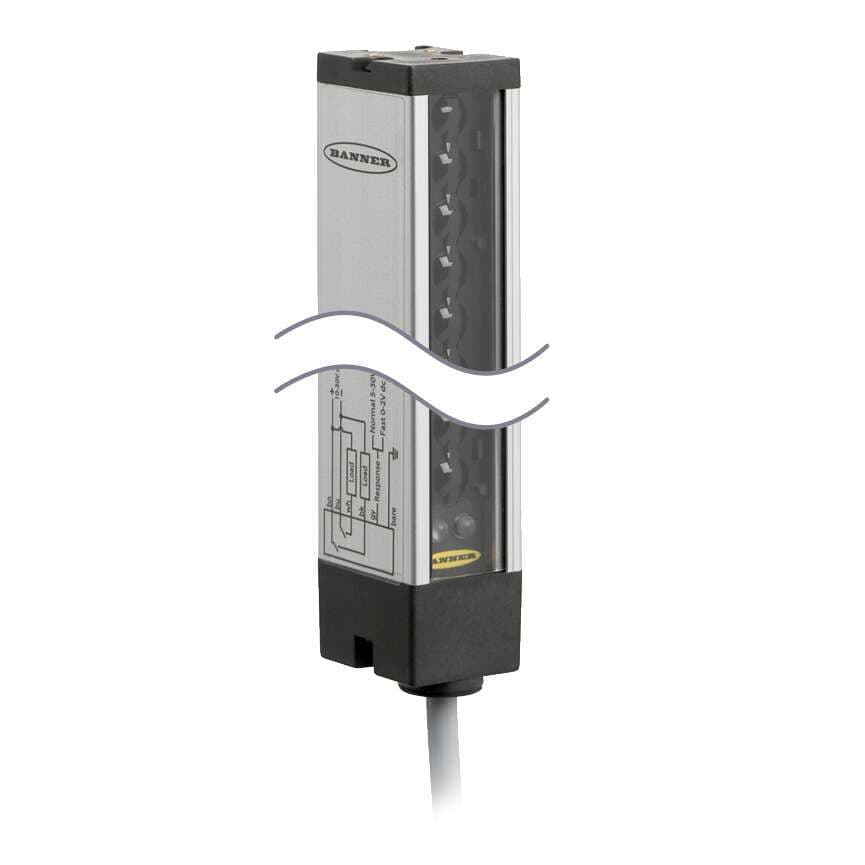

Banner Engineering LX9E is a sensor array characterized by its standard-range part-sensing light screen cross-hatched array, functioning as an emitter alone. It features a 218mm array length within a rectangular shape, constructed from an aluminium housing with an acrylic lens and die-cast zinc end caps. This part is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. The LX9E has a net height of 266mm, a width of 26mm, and a depth of 32mm. It is designed to operate within an ambient air temperature range of -20 to +70°C. With an IP65 degree of protection, it ensures durability against dust and water ingress. The sensing distance spans from 30cm to 2m, and it is capable of detecting objects as small as 9.5mm.
