LX3RQ-72028 Banner Measurement Sensors

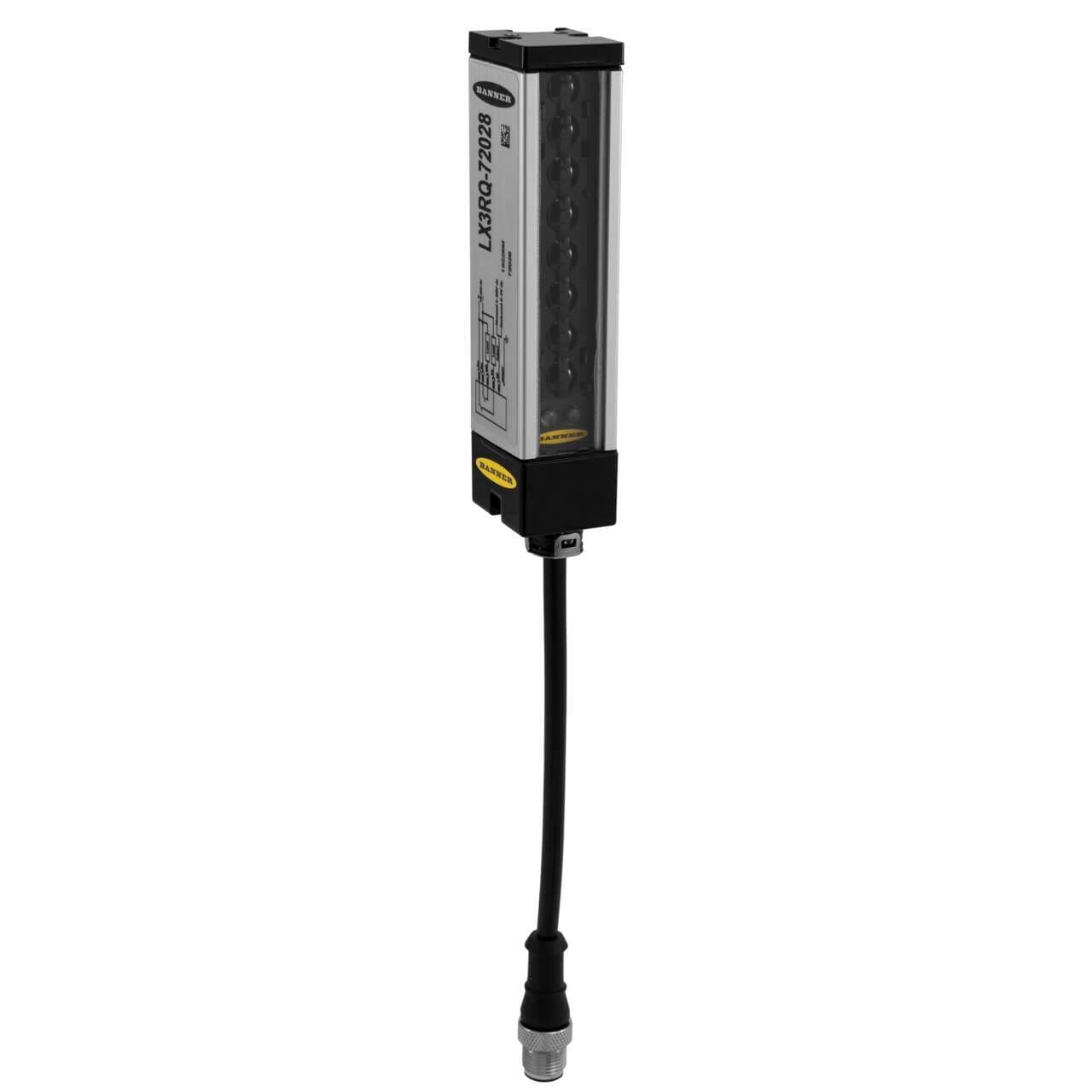

Banner LX3RQ-72028 LX3RQ-72028 LX Series Part-Sensing Light Screen Special Receiver; Input: 10-30 V dc; Output: Bipolar Light Operate; 150 mm (6 in) 5-pin M12 Pigtail QD
Banner

Part#:LX3RQ-72028

Manufacturer:Banner

Alt. Part#:72028

Product Lifecycle:Active

Get a quick Quote!

LX3RQ-72028 LX Series Part-Sensing Light Screen Special Receiver; Input: 10-30 V dc; Output: Bipolar Light Operate; 150 mm (6 in) 5-pin M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LX3RQ-72028 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    246.6179704 g
  • Country Of Origin
    MX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LX3RQ-72028 Description

Banner Engineering LX3RQ-72028 is a sensor array designed for standard-range part-sensing with a cross-hatched array, functioning as the receiver alone. It features a bipolar light-operate mode within a rectangular shape. The housing is made of aluminum with an acrylic lens and die-cast zinc end caps. This sensor is pre-wired with a 6-inch (150mm) pigtail terminated with a 5-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The dimensions include a 67mm array length, a net height of 114mm, a net width of 26mm, and a net depth of 32mm. It is designed to operate in ambient air temperatures ranging from -20 to +70 degrees Celsius. The LX3RQ-72028 offers a degree of protection rated at IP65 and features both Light-ON and Dark-ON operating modes. It has a sensing distance of 30cm to 2m and includes 1 x digital output (PNP/NPN transistor) with a response time of 0.8ms (0.0008 seconds). The minimum detectable object size is 9.5mm.

Related documents LX3RQ-72028 Specs

LX3RQ-72028 108865.pdf
