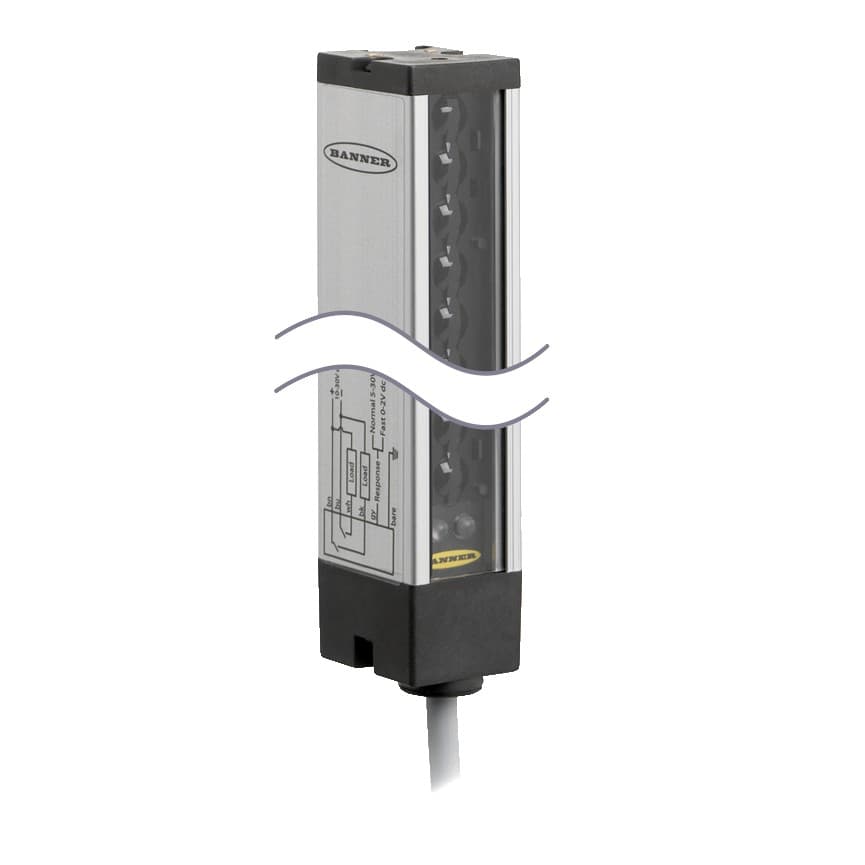

Part#:LX3E W/15

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

LX Series : Emitter ; Standard Range, Range : Normal 300 mm to 2 m; Input 10-30 V dc, Output: No output, 5 m (15 ft) Cable

Product Details

  • Minimum Object Detection [mm]
    9.5
  • NEMA Rating
    N/A
  • Indicator
    LEDs
  • Operation
    N/A
  • IP Rating
    IP65
  • Special Feature: Remote Teach
    No
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Min Op. Temperature (°C)
    -20
  • Max Op. Temperature (°C)
    70
  • Lens Material
    Acrylic
  • Repeatability (µs)
    N/A
  • Adjustments
    N/A
  • Output response time (ms)
    0.8 ON/6 OFF
  • Power Supply/Supply Voltage
    10-30 V dc
  • Number of Pins
    5
  • Minimum Object Detection (mm)
    9.5
  • Slot Overall Depth (mm)
    31.8
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Max Sensing Range (mm)
    2000
  • Housing Style
    Array
  • Sensing Mode (Detailed)
    Emitter
  • Primary Housing Material
    Aluminum
  • Slot Depth/Array Length (mm)
    67
  • Cable Length (m)
    2
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LX3E W/15 Related Documents

LX Series Part-Sensing Light Curtain-1630950315021.pdf
