LTF12UC2LDQP-801519 Banner Optical Sensors

LTF12UC2LDQP-801519 on Powermatic Associates
Banner
  • LTF12UC2LDQP-801519
  • LTF12UC2LDQP-801519

Part#:LTF12UC2LDQP-801519

Alt. Part#:801519

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

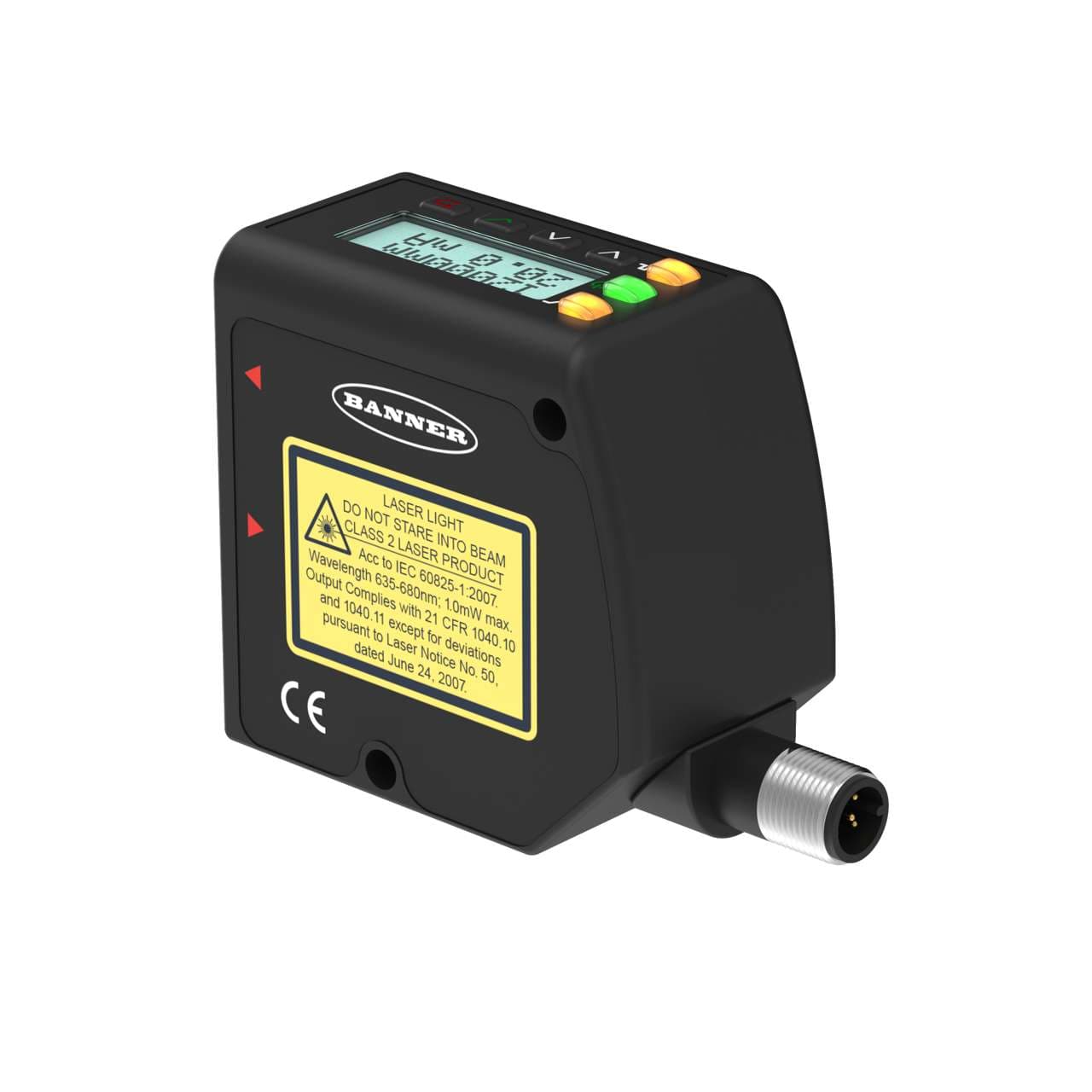

Laser Diffuse Time-of-Flight Sensor; Range: 50-12000 mm; Input: 12-30 V dc; Output: Analog: 0-10 V; Class 2 Laser; Discrete: NPN/PNP Configurable; Pigtail QD; Display from mm to inches, Lockout Buttons

Product Details

  • Weight
    390.08912 g
  • Country Of Origin
    US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LTF12UC2LDQP-801519 on Powermatic Associates is $984.00. Order now.

About the product

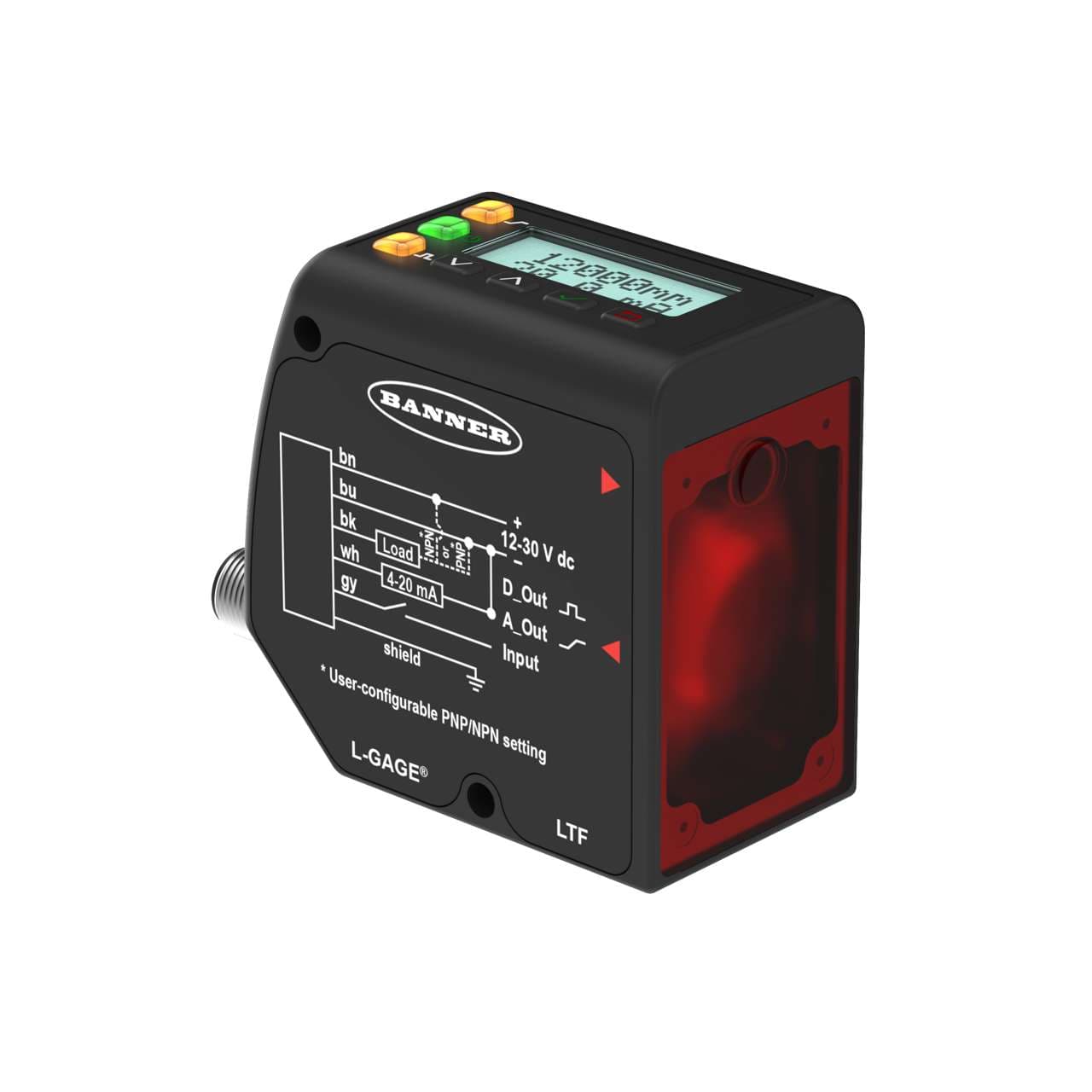

Banner Engineering LTF12UC2LDQP-801519 is a Class 2 laser photo-electric distance sensor/transmitter from the LTF series, designed with a diffuse time-of-flight system and a lockout button for TEACH mode, allowing display measurements to toggle between millimeters and inches. This sensor features a visible class 2 red laser housed in a rectangular, die-cast zinc alloy body with an acrylic window. It is pre-wired with a 6-inch (150mm) pigtail terminated with a 5-pin Euro-style M12 connector. The sensor offers protection against overload and short-circuit conditions. It operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and has a wavelength of 660 nm. Suitable for ambient air temperatures ranging from -20 to +55°C, it boasts an IP67 and NEMA 6 degree of protection. The LTF12UC2LDQP-801519 provides one analog output (0-10Vdc) and one digital output (PNP/NPN transistor), capable of sensing distances from 5cm up to 12m.

LTF12UC2LDQP-801519 Related Documents

194136.pdf

Similar products from: Banner Optical Sensors

Q10AP6D on Powermatic Associates

Q10AP6D

Banner

Q10 Series: Diffuse; Range: 0.5 m; Input: 10-30 V dc; Output: Light Operate - PNP; 2 m (6.5 ft) Cable

1 in stock
Q10AN6D on Powermatic Associates

Q10AN6D

Banner

Q10 Series: Diffuse; Range: 0.5 m; Input: 10-30 V dc; Output: Light Operate - NPN; 2 m (6.5 ft) Cable

2 in stock
SB12E1-10747 on Powermatic Associates

SB12E1-10747

Banner

DISCONTINUED, USE STD SB12E1 FOR GUNNEBO

11 in stock

Manufacturer warranty

LTF12UC2LDQP-801519 Banner

$984.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$984.00

$984.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare LTF12UC2LDQP-801519 with other Optical Sensors products

Weight

Country Of Origin

Selected product

LTF12UC2LDQP-801519
Backordered
LTF12UC2LDQP-801519
Banner

Laser Diffuse Time-of-Flight Sensor; Range: 50-12000 mm; Input: 12-30 V dc; Output: Analog: 0-10 V; ...

Weight390.08912 g

Country Of OriginUS

Q10AP6D
1 in stock
Q10AP6D
Banner

Q10 Series: Diffuse; Range: 0.5 m; Input: 10-30 V dc; Output: Light Operate - PNP; 2 m (6.5 ft) Cabl...

Weight63.50288 g

Country Of OriginMX

Q10AN6D
2 in stock
Q10AN6D
Banner

Q10 Series: Diffuse; Range: 0.5 m; Input: 10-30 V dc; Output: Light Operate - NPN; 2 m (6.5 ft) Cabl...

Weight63.50288 g

Country Of OriginMX

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...

Recently viewed products

MDI4MRQ34B2-EQ on Powermatic Associates

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

Relevant products

LTF12IC2LD W/30 on Powermatic Associates

LTF12IC2LD W/30

Verified stock: 0

Banner Engineering LTF12IC2LD W/30 is a Class 2 laser photo-electric distance sensor/transmitter from the LTF series, designed with a diffuse time-of-flight system and TEACH mode. It features a visible class 2 red laser with a wavelength of 660 nm. The sensor is housed in a rectangular, die-cast zinc alloy casing with an acrylic window. It is pre-wired with a 30ft / 9m cable terminated with bare end flying leads for connection. This sensor operates within a supply voltage range of 12Vdc-30Vdc, with 24Vdc nominal. It offers a sensing distance of 5cm to 12m and includes both analog (1 x analog output 4-20mA) and digital outputs (1 x digital output PNP/NPN transistor). The LTF12IC2LD W/30 is equipped with protection functions against overload and short-circuit, ensuring its durability. It operates effectively in ambient air temperatures ranging from -20 to +55 °C and is rated with a degree of protection of IP67 NEMA 6, making it suitable for challenging environments.

Banner

LTF12UC2LD W/30 on Powermatic Associates

LTF12UC2LD W/30

Verified stock: 0

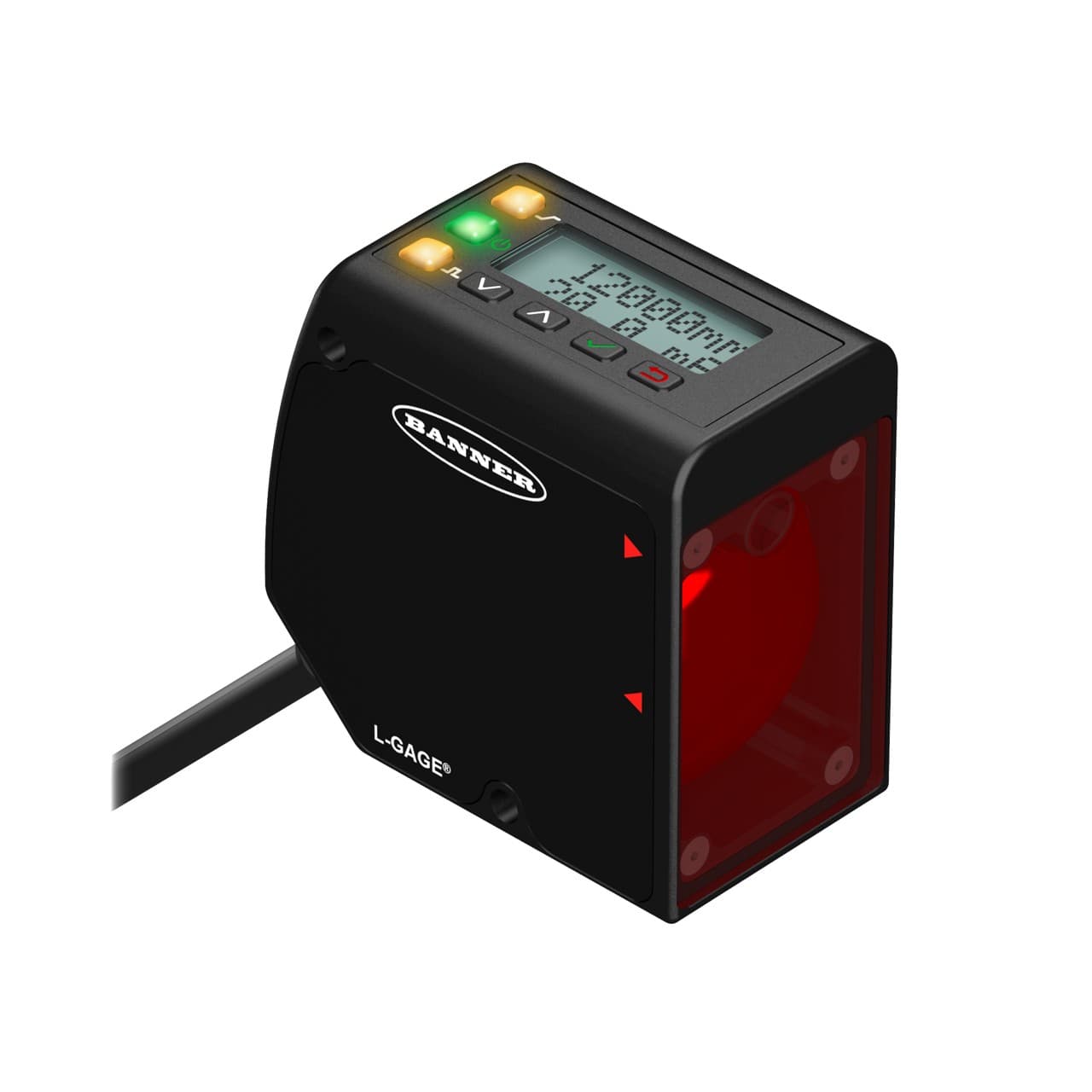

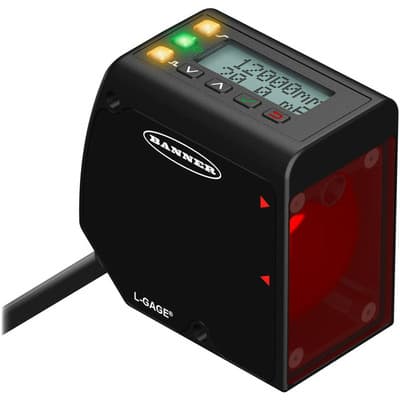

Banner Engineering LTF12UC2LD W/30 is a Class 2 laser photo-electric distance sensor/transmitter belonging to the LTF series. This sensor features a diffuse time-of-flight system with TEACH mode and emits a visible class 2 red laser with a wavelength of 660 nm. It is designed with a rectangular shape and constructed from a die-cast zinc alloy housing with an acrylic window. The sensor is pre-wired with a 30ft / 9m cable terminated with bare end flying leads for connectivity. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The LTF12UC2LD W/30 offers protection functions against overload and short-circuit, ensuring its durability in various applications. It is capable of sensing distances from 5cm to 12m and provides both analog (1 x analog output 0-10Vdc) and digital outputs (1 x digital output PNP/NPN transistor). This sensor operates within an ambient air temperature range of -20 to +55 °C and is rated with a degree of protection of IP67 NEMA 6, making it suitable for challenging environments.
