LTF12UC2LD
Banner
Product Lifecycle: Active

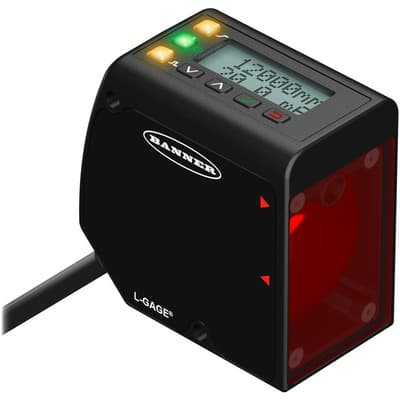

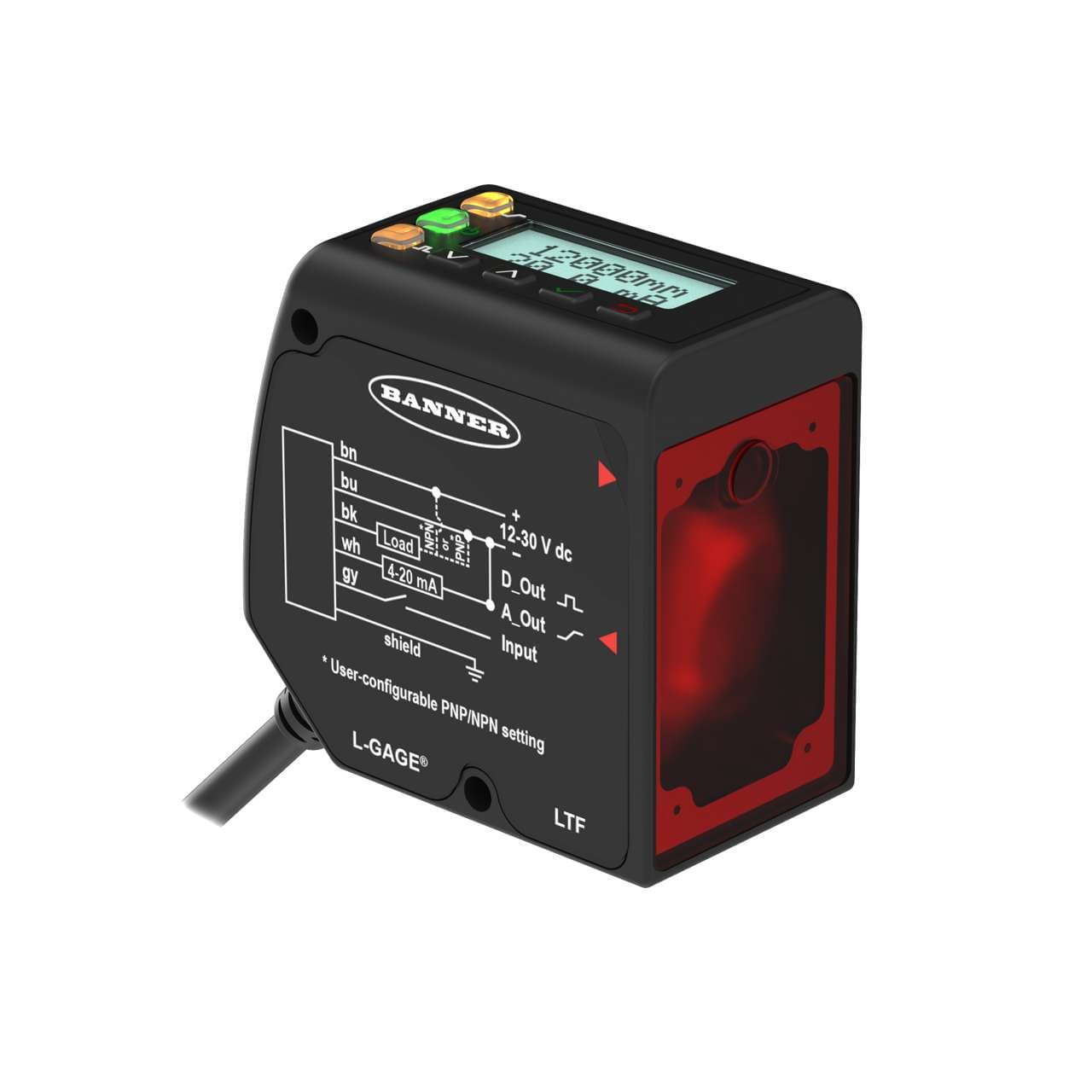

Banner Engineering LTF12UC2LD is a Class 2 laser photo-electric distance sensor/transmitter from the LTF series, designed with a diffuse time-of-flight system and TEACH mode. It features a visible class 2 red laser with a wavelength of 660 nm. The sensor is housed in a rectangular, die-cast zinc alloy with an acrylic window. It is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for connection. This sensor offers overload and short-circuit protection functions. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The LTF12UC2LD can operate in ambient air temperatures ranging from -20 to +55 °C and is rated with a degree of protection of IP67 NEMA 6. It provides 1 x analog output (0-10Vdc) and 1 x digital output (PNP/NPN transistor), with a sensing distance of 5cm to 12m.
Banner Engineering LTF12UC2LD is a Class 2 laser photo-electric distance sensor/transmitter from the LTF series, designed with a diffuse time-of-flight system and TEACH mode. It features a visible class 2 red laser with a wavelength of 660 nm. The sensor is housed in a rectangular, die-cast zinc alloy with an acrylic window. It is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for connection. This sensor offers overload and short-circuit protection functions. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The LTF12UC2LD can operate in ambient air temperatures ranging from -20 to +55 °C and is rated with a degree of protection of IP67 NEMA 6. It provides 1 x analog output (0-10Vdc) and 1 x digital output (PNP/NPN transistor), with a sensing distance of 5cm to 12m.
Product details
- ProfibusNo
- WirelessNo
- RS-232No
- IO LinkNo
- Feature: Timing (Hold/Delay)Yes
- Feature: Remote TeachYes
- Power/Current Consumption (exclusive of load)<85 mA @ 24 V (< 2.1 W)
- Supply Protection CircuitryProtected against reverse polarity and transient overvoltages
- Analog Linearity (mm)+/- 10
- Warm-up Time (minutes)15
- RS-485No
- SSINo
- 1-wire Serial InterfaceNo
- RS-422No
- Common Ethernet ProtocolNo
- PROFINETNo
- Feature: Health/ Marginal Signal OutputYes
- Feature: Chemical ResistantNo
- Typical Laser Lifetime (Hours)60000
- Minimum Response Time (ms)1.5
- Max Off-state Leakage Current (µA)PNP <10µA at 30V, NPN <200µa at 30V
- Alarm Output (mA)100
- Max Ambient Light (Lux)40000
- Laser ControlYes
- Minimum Window Size (mm)10
- Discrete Output Hysteresis (mm)Automatically adjusted
- Spot Size (@ Reference Distance)6.5 mm at 50 mm, 12.5 mm at 12000 mm
- Window MaterialAcrylic
- Max Operating Temperature (°C)55
- Max Op. Relative Humidity Non-Condensing (%)90 at 55°C
- NEMA RatingNEMA 6
- Storage Temperature (°C)-30 to 65
- Min Operating Temperature (°C)-20
- Output ProtectionProtected against continuous overload and short circuit
- IP RatingIP67
- Analog Voltage Output Rating2.5 kΩ min. load impedance
- Discrete (Switched) Outputs1 NPN/PNP Configurable
- Output Saturation Voltage PNP Outputs< 3V @ 100ma
- Max Discrete (Switched) Output (mA)100
- Output Saturation Voltage NPN Outputs< 1.6V @ 100ma
- VibrationMIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Number of Pins5
- Temperature Effect (mm/°C)0.25mm/C (typical)
- Sensing Beam Wavelength (nm)660
- AdjustmentsPush Button; Remote Teach
- Delay at Power-up (ms)2000
- Power Supply12-30 V dc
- Minimum Sensing Distance (mm)50
- Analog Resolution/Discrete Repeatability1
- Input/OutputAnalog & Discrete
- Quick Disconnect TypeNo QD
- Max Sensing Distance (mm)12000
- Analog Output Configuration0-10 V dc
- ConnectionFlying Leads
- Laser ClassificationClass 2
- IndicatorDisplay; LED(s)
- Primary Housing MaterialZinc Alloy Die-Cast
- Sensing Mode (General)Proximity
- Sensing Mode (Detailed)Time of Flight
- PC ConfigurableNo
- Housing StyleRectangular
- Cable Length (m)2
- PowerDC
- Device TypeSensor
- Max Measurement Range>1 m - <=20 m
- Sensing BeamVisible Red Laser
- Product series / family nameL-GAGE series
- DisplayLCD 2 lines x 8 characters
- Wavelength660 nm
- Analog outputs1 x analog output (0-10Vdc)
- Order code / Manufacturer SKU94855
- Primary brandBanner Engineering
- Supply voltage (DC)12Vdc-30Vdc (24Vdc nom.)
- Digital outputs1 x digital output (PNP/NPN transistor)
- Degree of protectionIP67 NEMA 6
- Light ColorVisible class 2 red Laser
- Compliant with standard(s)cULus CE
- Main functionSensor (Distance)
- FunctionsClass 2 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON) TEACH mode
- Sensing distance5cm...12m
- ShapeRectangular
- MaterialDie-cast Zinc alloy housing Acrylic window
- Sub-range nameLTF
- Designdiffuse time-of-flight system
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation-20...+55 °C
- Protection functionsOverload Short-circuit
