LEDWRM62X62W Banner Vision Accessories

LEDWRM62X62W on Powermatic Associates
Banner

Part#:LEDWRM62X62W

Manufacturer:Banner

Alt. Part#:12403

Product Lifecycle:Active

Get a quick Quote!

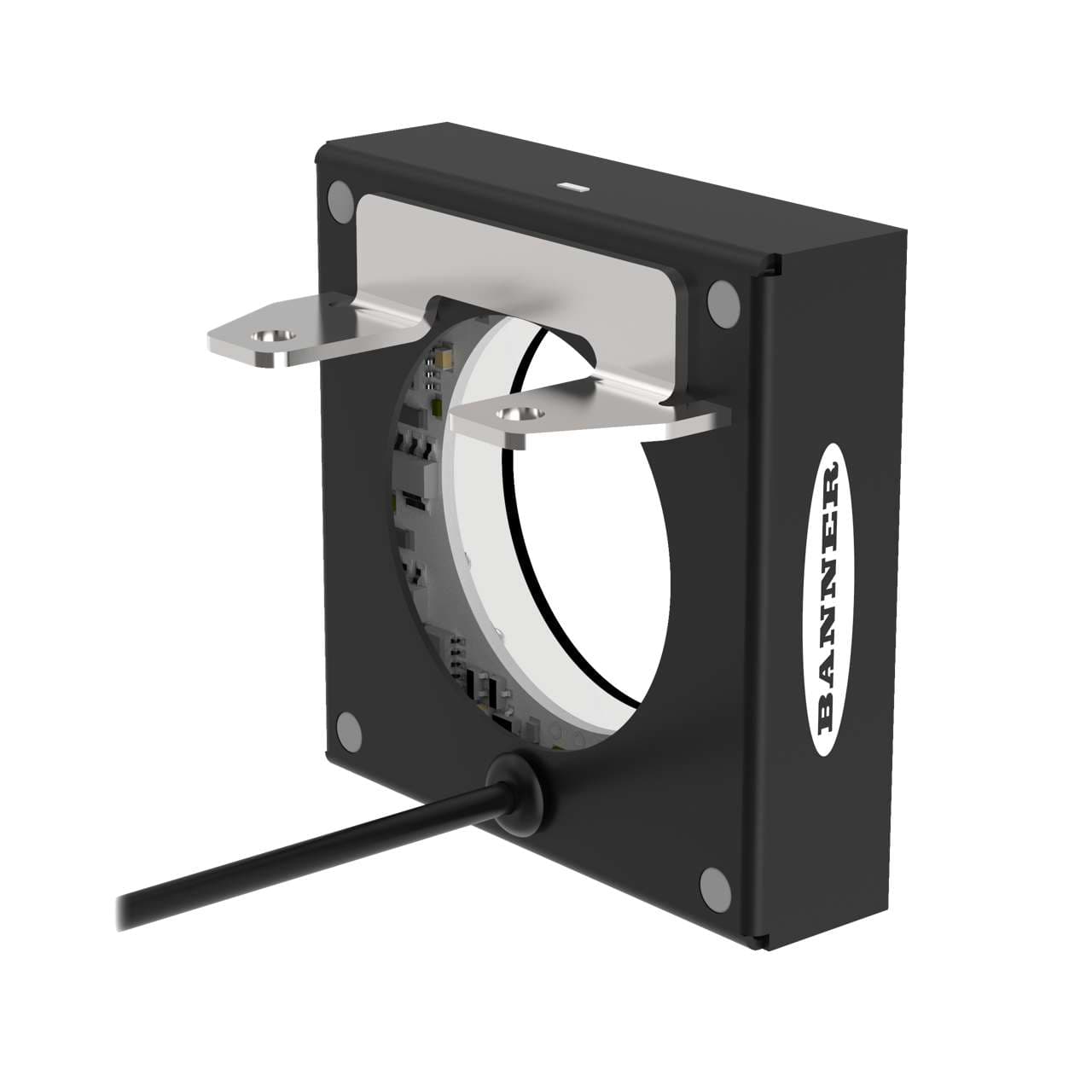

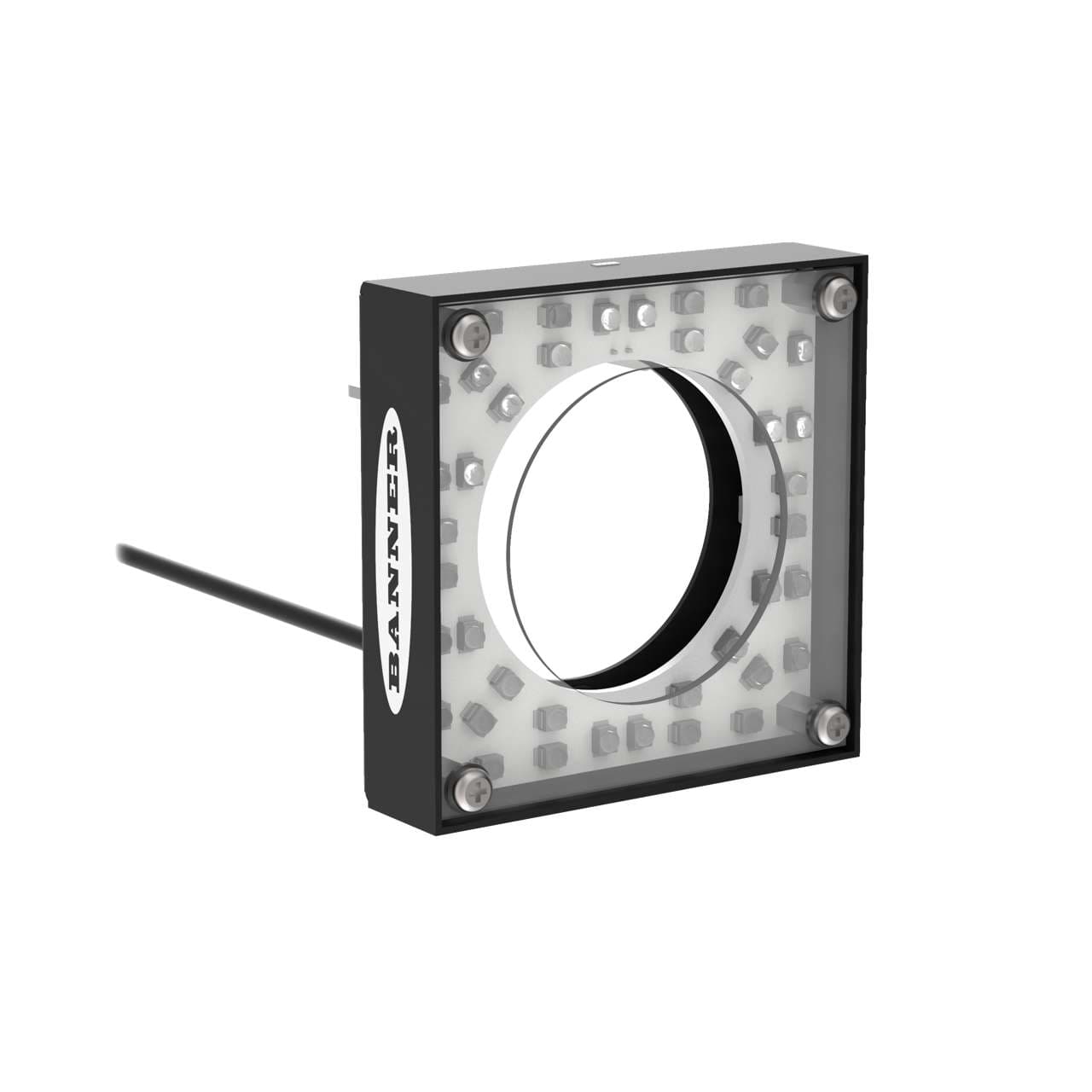

PresencePLUS 62x62 mm Ring Light; for Pro Mini Camera; Visible White LED 24 V dc; 2 m (6.5 ft) Cable with flying leads

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWRM62X62W Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    199.126888 g
  • Country Of Origin
    US
  • Color Technology
    Standard LED
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    130
  • Physical Dimensions (LxWxH or DxH mm)
    66.7 x 66.7 x 104.1
  • Supply Voltage
    24 V dc
  • QD Type/Cable Length
    2 m
  • Primary Housing Material
    Low-Carbon Steel
  • Color
    White
  • Window Material
    Acrylic
  • Connection Type
    Cable
  • Number of Input Pins/Conductors
    3
  • Housing Style
    Rectangular
  • Device Type
    Ring Light
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWRM62X62W Description

Banner Engineering LEDWRM62X62W is an illumination unit designed for ring illumination light applications. It features a rectangular shape with a ring passage, suitable for various lighting needs. The dimensions of this unit are 62x62mm, and it emits visible white light. Constructed with a low-carbon steel housing and an acrylic window, it ensures durability and clear light transmission. This unit is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. It operates on a supply voltage of 24Vdc, making it compatible with a wide range of industrial automation systems.

Related documents LEDWRM62X62W Specs

LEDWRM62X62W 108626.pdf
