LEDWLB145XW6-XQ Banner Vision Accessories

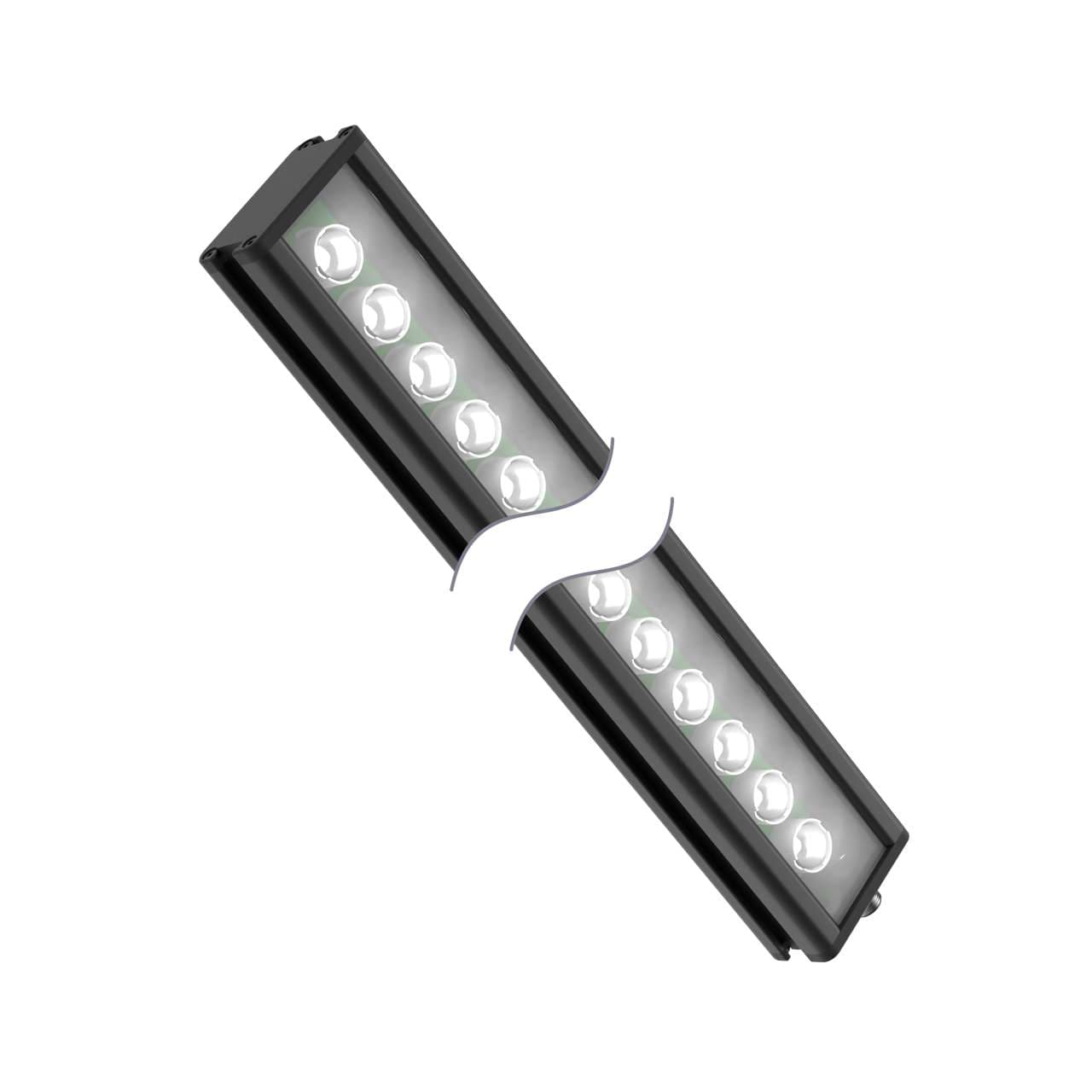

Banner LEDWLB145XW6-XQ Vision Light-Linear Back Light 145 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: White; 5-pin M12 QD
Banner

Part#:LEDWLB145XW6-XQ

Manufacturer:Banner

Alt. Part#:29643

Product Lifecycle:Active

Get a quick Quote!

Vision Light-Linear Back Light 145 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: White; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLB145XW6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    453.592 g
  • Country Of Origin
    MX
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    500
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    187.1 x 59.4 x 32.6
  • Supply Voltage
    24 V DC
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Window Material
    Acrylic
  • Number of Input Pins/Conductors
    5
  • Connection Type
    Integral QD
  • Color
    White
  • Housing Style
    Linear Strip
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Linear Array Backlight
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLB145XW6-XQ Description

Banner Engineering LEDWLB145XW6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 145mm / 5.7" array length, emitting visible white light. The unit has a rectangular shape and is constructed with a black anodized aluminum housing and a white acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDWLB145XW6-XQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50.

Related documents LEDWLB145XW6-XQ Specs

LEDWLB145XW6-XQ 166314.pdf

Manufacturer warranty
