LEDWLA870XP6-XQ Banner Vision Accessories
Part#:LEDWLA870XP6-XQ
Alt. Part#:13000
Manufacturer:Banner
Category:Vision Accessories
Product Lifecycle:Active
Product description

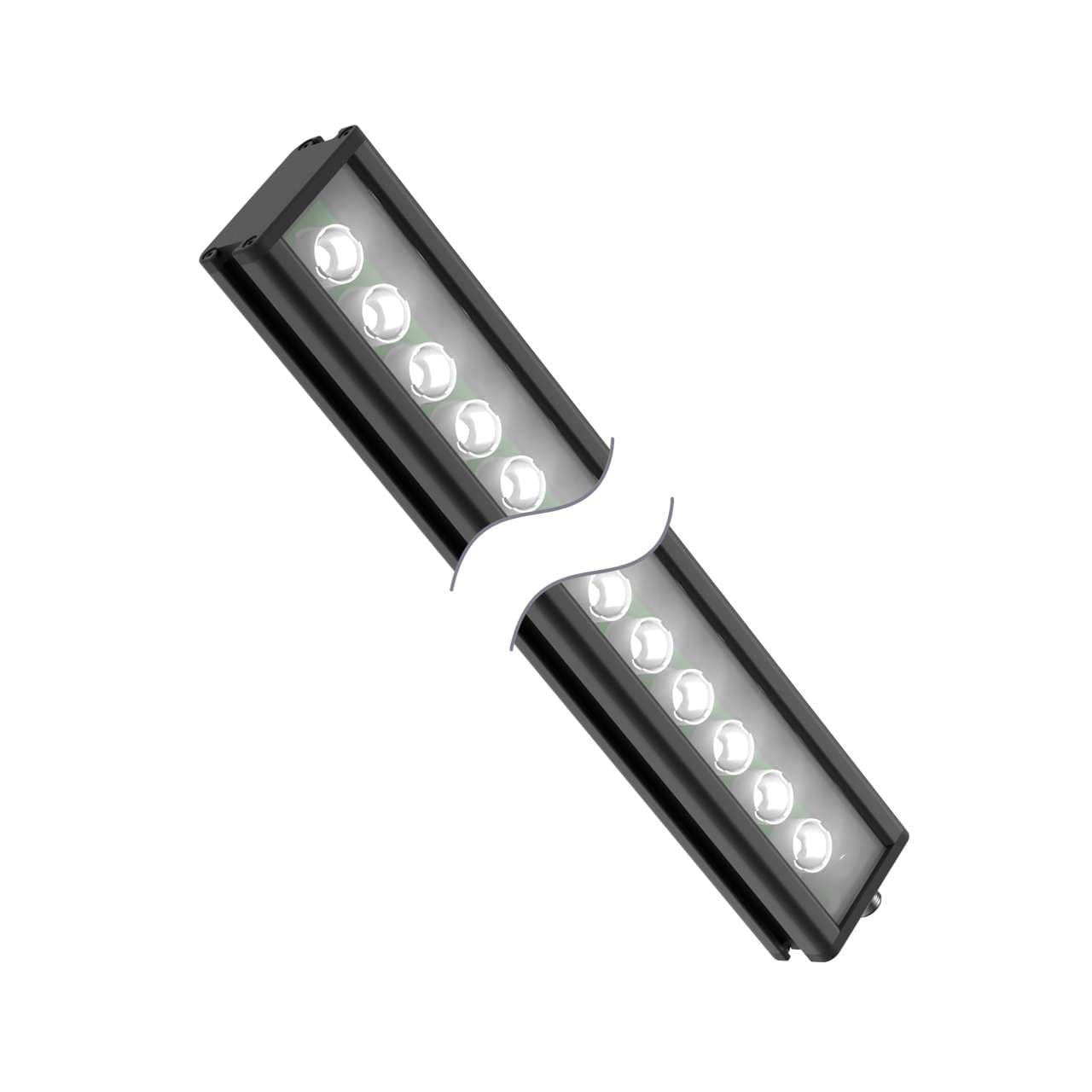

Vision Light - 870 mm Linear Array - IP50; 36 High Intensity White LEDs - 24 V dc; Clear Plastic Window; Requires Cable MQDC20-xxx
Product Details
- Weight 2086.5232 g
- Country Of Origin MX
- Housing Style Linear Strip
- Lens Focusing Angle (°)/Field of View 6.5
- Color Technology Standard LED
- Max Current Color (mA) 3000
- Max Op. Temperature (°C) 50
- Physical Dimensions (LxWxH or DxH mm) 914.6 x 59.4 x 32.6
- Supply Voltage 24 V DC
- Power DC
- Window Material Acrylic
- Number of Input Pins/Conductors 5
- Device Type Bar Light
- QD Type/Cable Length M12 (Euro) requires mating cordset
- Connection Type Integral QD
- Color White
- Primary Housing Material Anodized Aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDWLA870XP6-XQ on Powermatic Associates is $2,782.00. Order now.
About the product

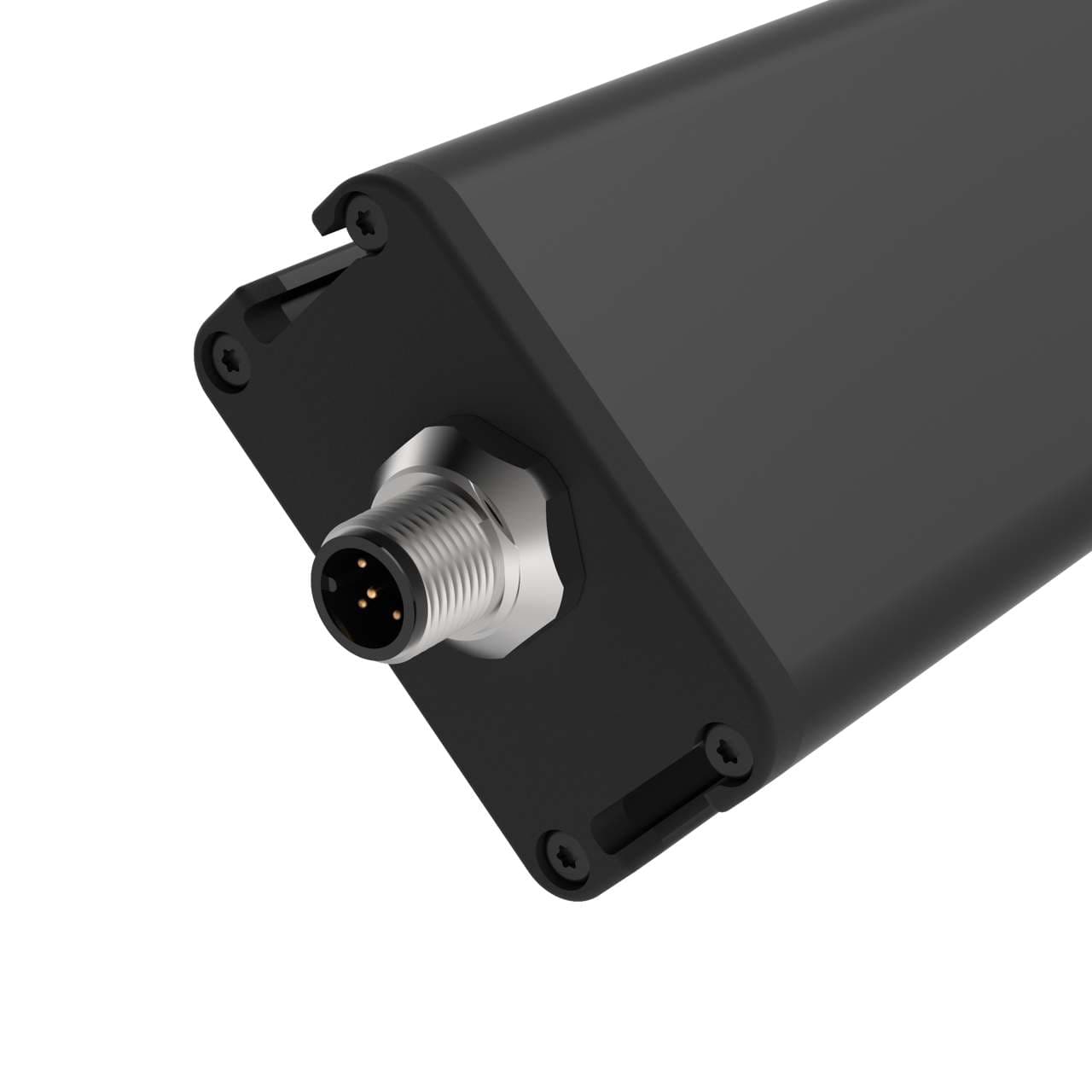

Banner Engineering LEDWLA870XP6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a rectangular shape, measuring 870mm (34.2 inches or approximately 3 feet) in array length. The unit emits visible white light and is constructed with a black anodized aluminum housing and an acrylic window for durability. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy connection. The LEDWLA870XP6-XQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50, indicating a level of protection against dust ingress.
