LEDWLA870XD6-XQ Banner Vision Accessories

LEDWLA870XD6-XQ on Powermatic Associates
Banner

Part#:LEDWLA870XD6-XQ

Manufacturer:Banner

Alt. Part#:12867

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 870 mm Linear Array - IP50; 36 High Intensity White LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLA870XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1905.0864 g
  • Country Of Origin
    MX
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    3000
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    914.6 x 59.4 x 32.6
  • Color Technology
    Standard LED
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Housing Style
    Linear Strip
  • Connection Type
    Integral QD
  • Number of Input Pins/Conductors
    5
  • Window Material
    Diffuse Acrylic
  • Power
    DC
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Bar Light
  • Color
    White

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLA870XD6-XQ Description

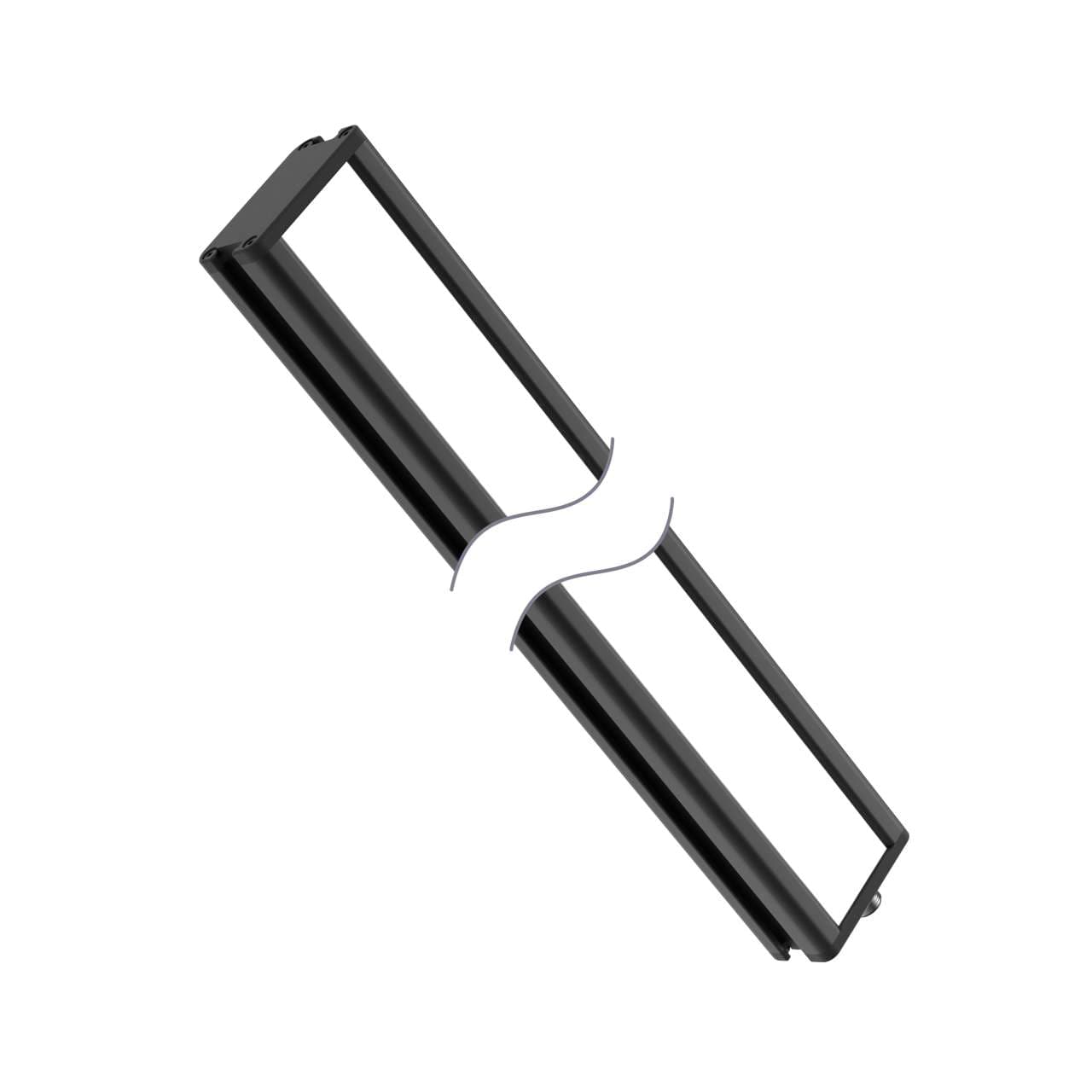

Banner Engineering LEDWLA870XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a rectangular shape, measuring 870mm in length, equivalent to 34.2 inches or approximately 3 feet. The unit emits visible white light and is constructed with a black anodized aluminum housing and a diffused acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDWLA870XD6-XQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50.

Related documents LEDWLA870XD6-XQ Specs

LEDWLA870XD6-XQ 151466.pdf

Manufacturer warranty

$2,782.00

Request a quote, and we will send availability within minutes.

Select Qty:

$2,782.00

$2,782.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty
