LEDWLA580XP6-XQ Banner Vision Accessories

LEDWLA580XP6-XQ on Powermatic Associates
Banner

Part#:LEDWLA580XP6-XQ

Manufacturer:Banner

Alt. Part#:13954

Product Lifecycle:Active

Get a quick Quote!

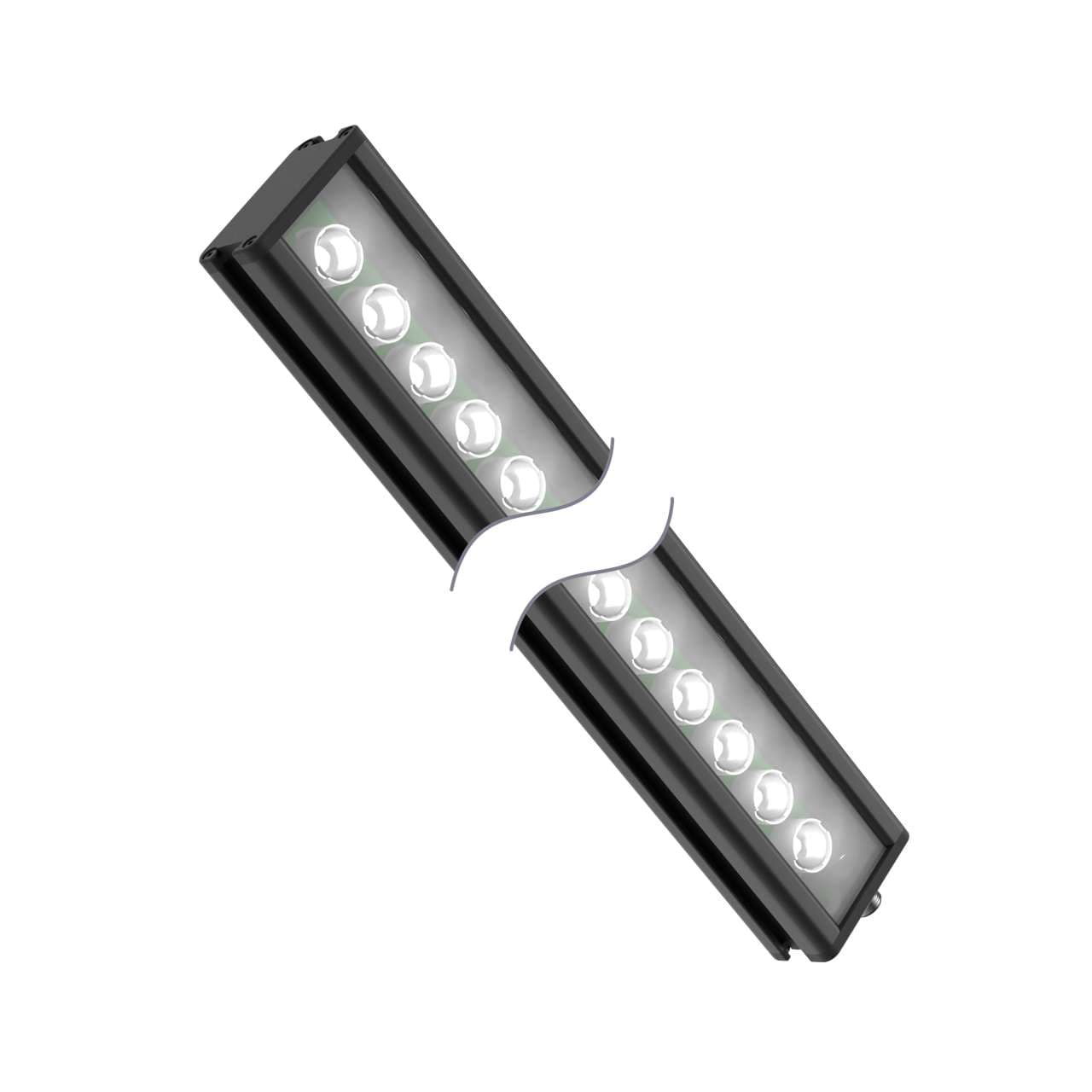

Vision Light - 580 mm Linear Array - IP50; 24 High Intensity White LEDs - 24 V dc; Clear Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLA580XP6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    793.786 g
  • Country Of Origin
    US
  • Feature: Quick Disconnect
    Yes
  • Physical Dimensions (LxWxH or DxH mm)
    623.6 x 59.4 x 32.6
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Supply Voltage
    24 V DC
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    2000
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Window Material
    Acrylic
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Bar Light
  • Connection Type
    Integral QD
  • Color
    White
  • Housing Style
    Linear Strip
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLA580XP6-XQ Description

Banner Engineering LEDWLA580XP6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 580mm (22.8 inches or approximately 2 feet) array length. The unit emits visible white light and has a rectangular shape. It is constructed with a black anodized aluminum housing and an acrylic window for durability. This model is pre-equipped with a 5-pin Euro-style M12 connector for easy connection. It operates on a 24Vdc supply voltage and has an IP50 degree of protection, indicating a level of protection against dust.

Related documents LEDWLA580XP6-XQ Specs

LEDWLA580XP6-XQ 151466.pdf

Manufacturer warranty

$1,879.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,879.00

$1,879.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
