LEDWLA580XP6-PLQ Banner Vision Accessories
Part#:LEDWLA580XP6-PLQ
Alt. Part#:814002
Manufacturer:Banner
Category:Vision Accessories
Product Lifecycle:Active
Product description

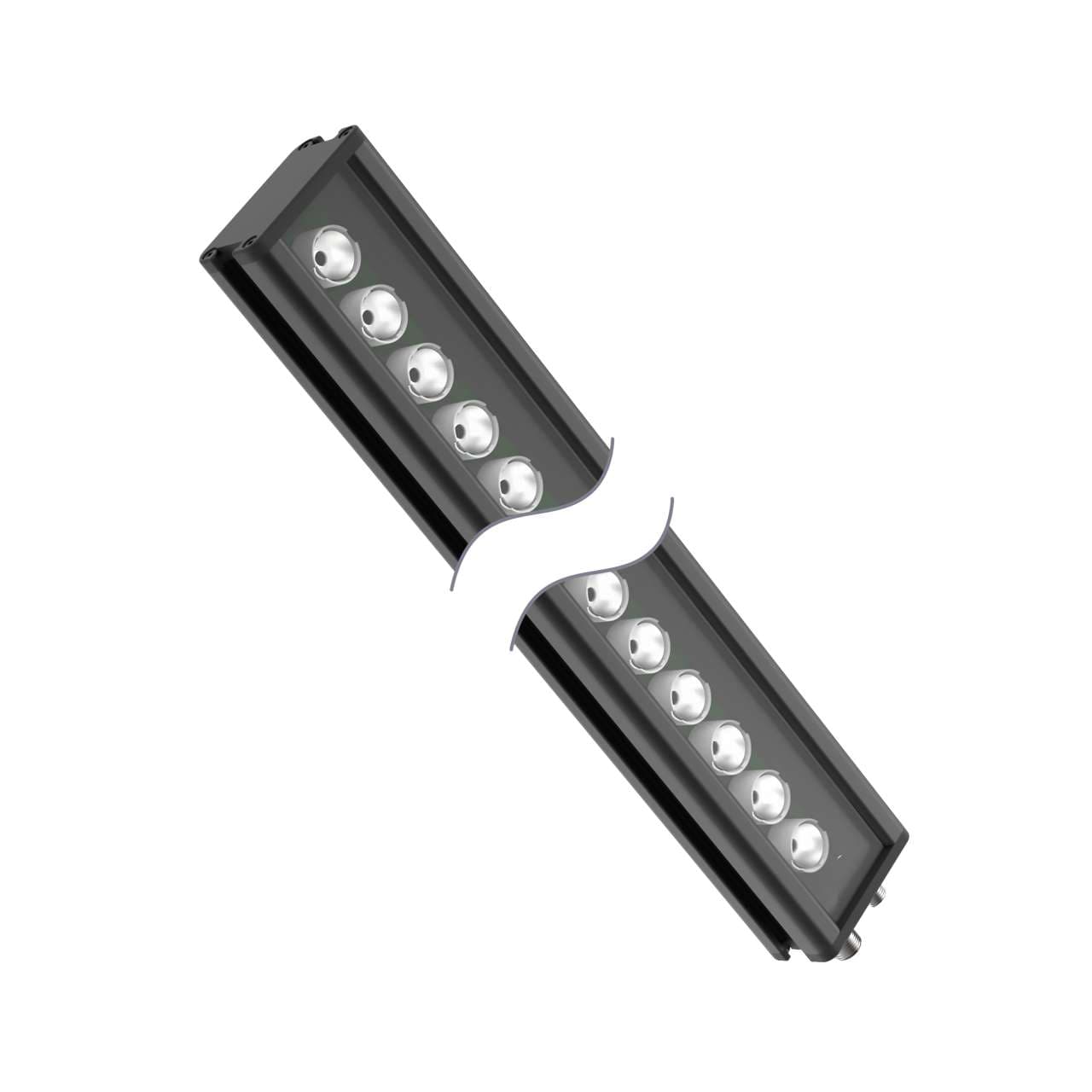

Vision Light - 580 mm Linear Array - IP50; 24 High Intensity White LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx: 5000K LEDs
Product Details
- Weight 1133.98 g
- Country Of Origin US
- Lens Focusing Angle (°)/Field of View 6.5
- Number of Input Pins/Conductors 5
- Color White
- Max Op. Temperature (°C) 50
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 623.6 x 59.4 x 32.6
- Max Current Color (mA) 2000
- Supply Voltage 24 V DC
- Primary Housing Material Anodized Aluminum
- QD Type/Cable Length M12 (Euro) requires mating cordset
- Housing Style Linear Strip
- Device Type Bar Light
- Connection Type Integral QD
- Intensity Adjustment Potentiometer and Analog
- Window Material Acrylic
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDWLA580XP6-PLQ on Powermatic Associates is $1,918.00. Order now.
About the product
LINEAR ARRAY WHT ACRY 2FT DIMM ACTIVE LOW
