LEDWLA290XP6-XQ Banner Vision Accessories
Part#:LEDWLA290XP6-XQ
Alt. Part#:13951
Manufacturer:Banner
Category:Vision Accessories
Product Lifecycle:Active
Product description
Vision Light - 290 mm Linear Array - IP50; 12 High Intensity White LEDs - 24 V dc; Clear Plastic Window; Requires Cable MQDC20-xxx
Product Details
- Weight 771.1064 g
- Country Of Origin MX
- Max Op. Temperature (°C) 50
- Connection Type Integral QD
- Physical Dimensions (LxWxH or DxH mm) 332.6 x 59.4 x 32.6
- Lens Focusing Angle (°)/Field of View 6.5
- Supply Voltage 24 V DC
- Color Technology Standard LED
- Max Current Color (mA) 1000
- Number of Input Pins/Conductors 5
- Device Type Bar Light
- Window Material Acrylic
- Power DC
- Color White
- QD Type/Cable Length M12 (Euro) requires mating cordset
- Housing Style Linear Strip
- Primary Housing Material Anodized Aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDWLA290XP6-XQ on Powermatic Associates is $977.00. Order now.
About the product

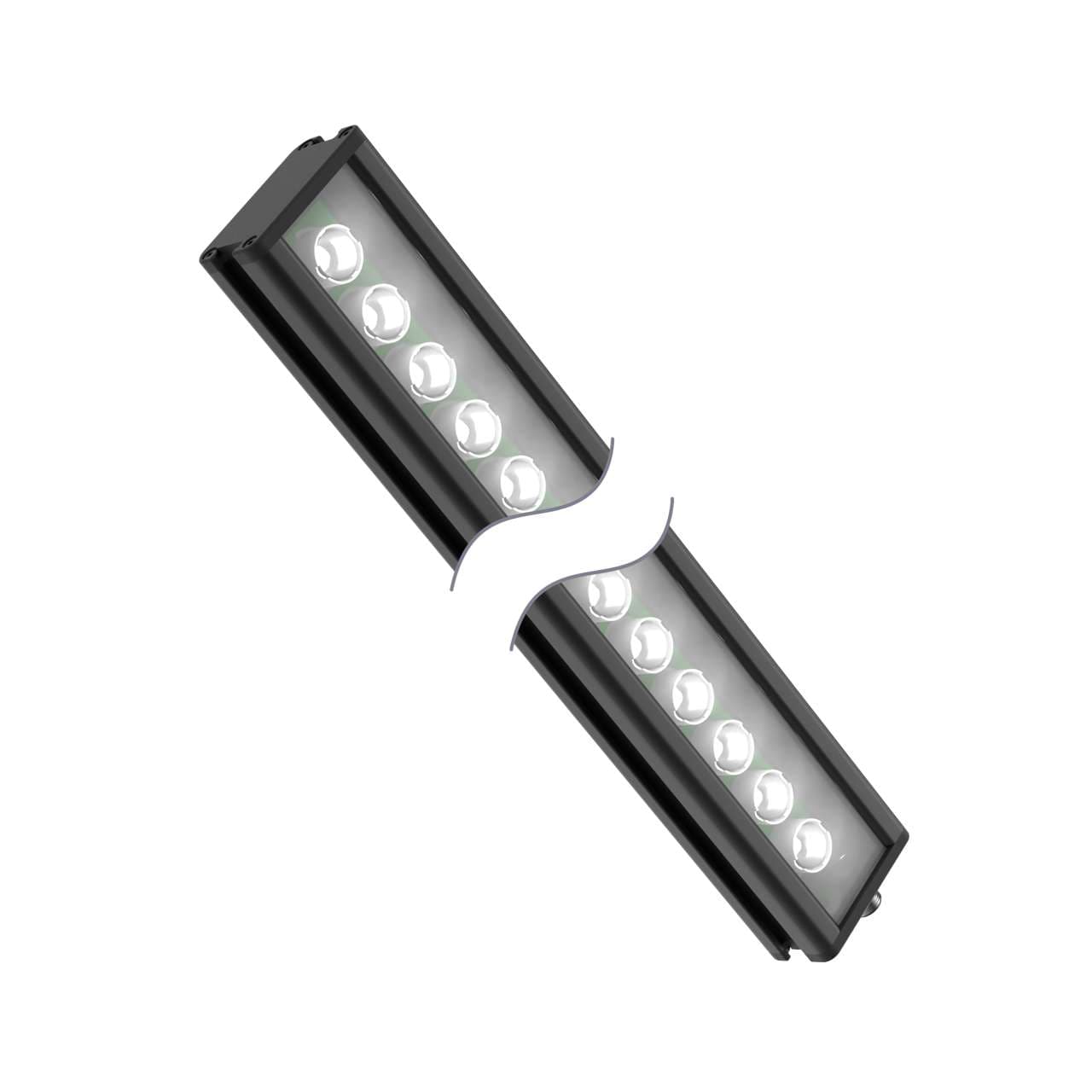

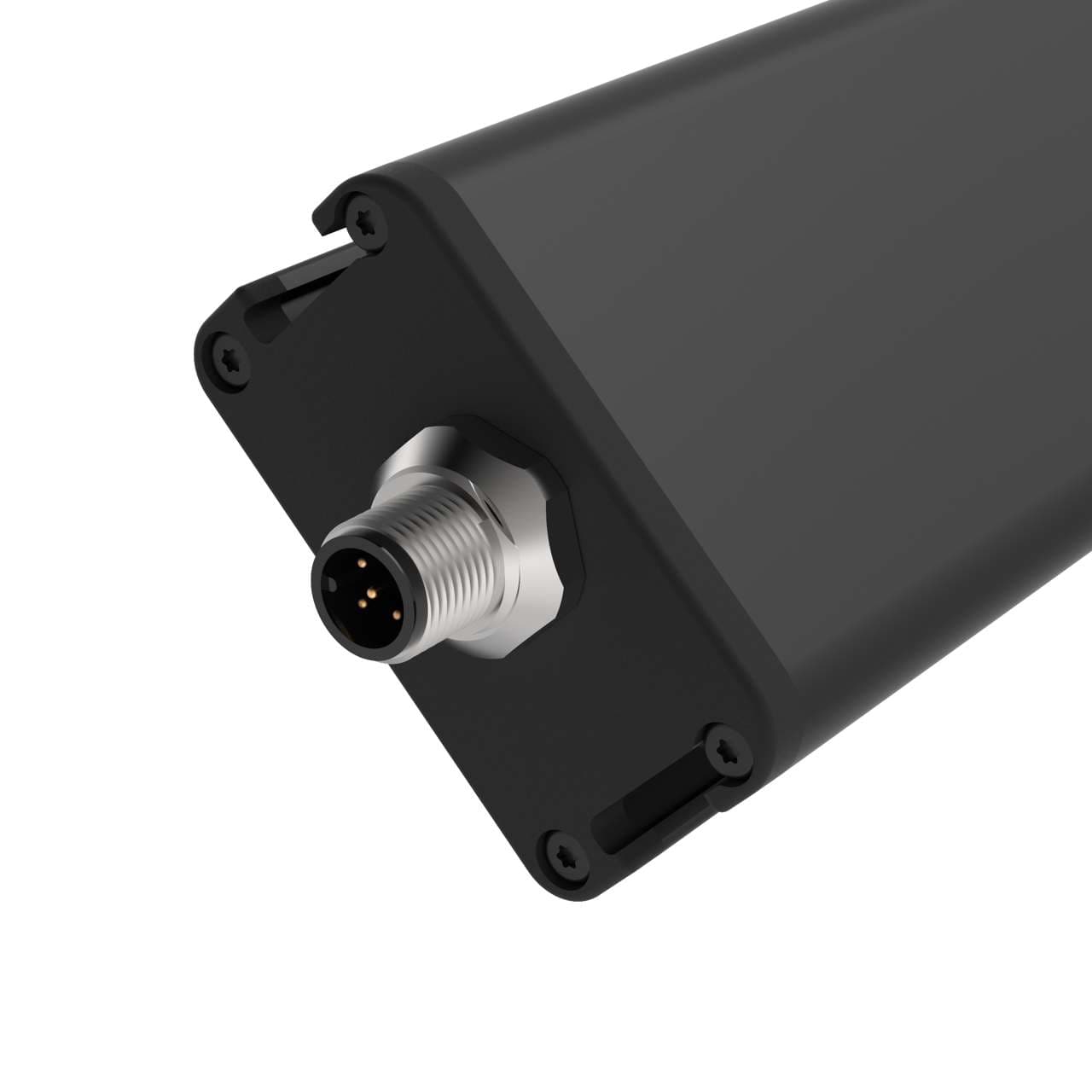

Banner Engineering LEDWLA290XP6-XQ is a linear array illumination backlight designed for high-intensity applications. It features a 290mm (11.4 inches or approximately 1 foot) array length, emitting visible white light. The unit is encased in a rectangular, black anodized aluminum housing with an acrylic window, ensuring durability and clarity. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. The LEDWLA290XP6-XQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.
