LEDWLA290XG6-XQ Banner Vision Accessories

LEDWLA290XG6-XQ on Powermatic Associates
Banner

Part#:LEDWLA290XG6-XQ

Manufacturer:Banner

Alt. Part#:13952

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 290 mm Linear Array - IP50; 12 High Intensity White LEDs - 24 V dc; Clear Glass Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLA290XG6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    777.003096 g
  • Country Of Origin
    MX
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Max Current Color (mA)
    1000
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Connection Type
    Integral QD
  • Color
    White
  • Device Type
    Bar Light
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • Housing Style
    Linear Strip
  • Power
    DC
  • Primary Housing Material
    Anodized Aluminum
  • Window Material
    Glass

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLA290XG6-XQ Description

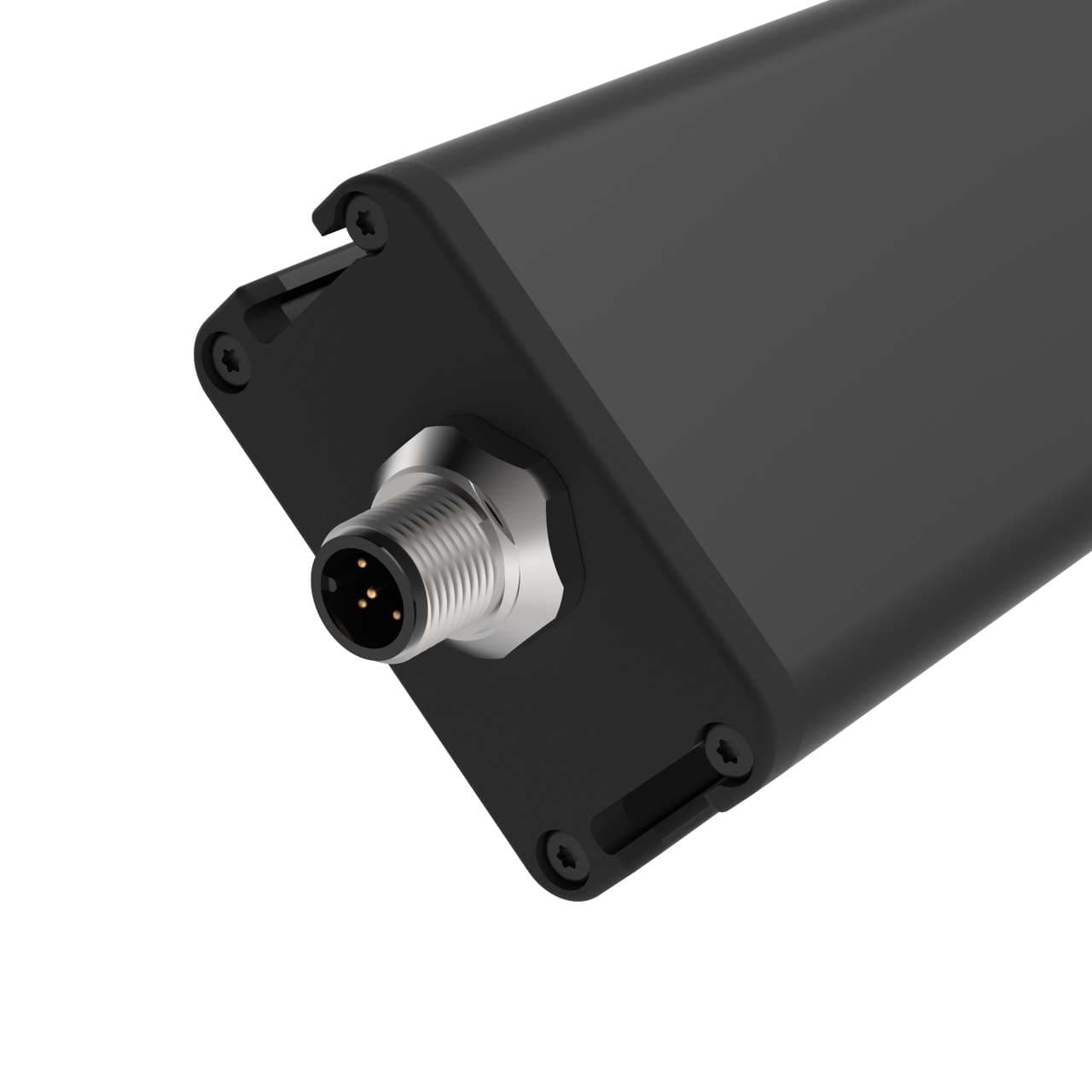

Banner Engineering LEDWLA290XG6-XQ is a linear array illumination backlight designed for high-intensity applications. It features a 290mm (11.4 inches or approximately 1 foot) array length, emitting visible white light. The unit is constructed with a black anodized aluminum housing and a glass window, ensuring durability and clarity. It comes pre-equipped with a 5-pin Euro-style M12 connector for straightforward integration. The LEDWLA290XG6-XQ operates on a 24Vdc supply voltage and is rated with an IP50 degree of protection, indicating a level of resistance to dust ingress.

Related documents LEDWLA290XG6-XQ Specs

LEDWLA290XG6-XQ 151466.pdf

Manufacturer warranty

$977.00

Request a quote, and we will send availability within minutes.

Select Qty:

$977.00

$977.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
