LEDWLA145XP6-XQ Banner Vision Accessories

Name: LEDWLA145XP6-XQ
Brand: Banner
Price: 602 USD
Availability: BackOrder

LEDWLA145XP6-XQ on Powermatic Associates

Part#:LEDWLA145XP6-XQ

Manufacturer:Banner

Alt. Part#:13930

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 145 mm Linear Array - IP50; 6 High Intensity White LEDs - 24 V dc; Clear Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLA145XP6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
453.592 g
Country Of Origin
MX
Max Op. Temperature (°C)
50
Lens Focusing Angle (°)/Field of View
6.5
Physical Dimensions (LxWxH or DxH mm)
187.1 x 59.4 x 32.6
Number of Input Pins/Conductors
5
Color Technology
Standard LED
Supply Voltage
24 V DC
Max Current Color (mA)
500
Device Type
Bar Light
QD Type/Cable Length
M12 (Euro) requires mating cordset
Window Material
Acrylic
Connection Type
Integral QD
Color
White
Primary Housing Material
Anodized Aluminum
Housing Style
Linear Strip
Power
DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLA145XP6-XQ Description

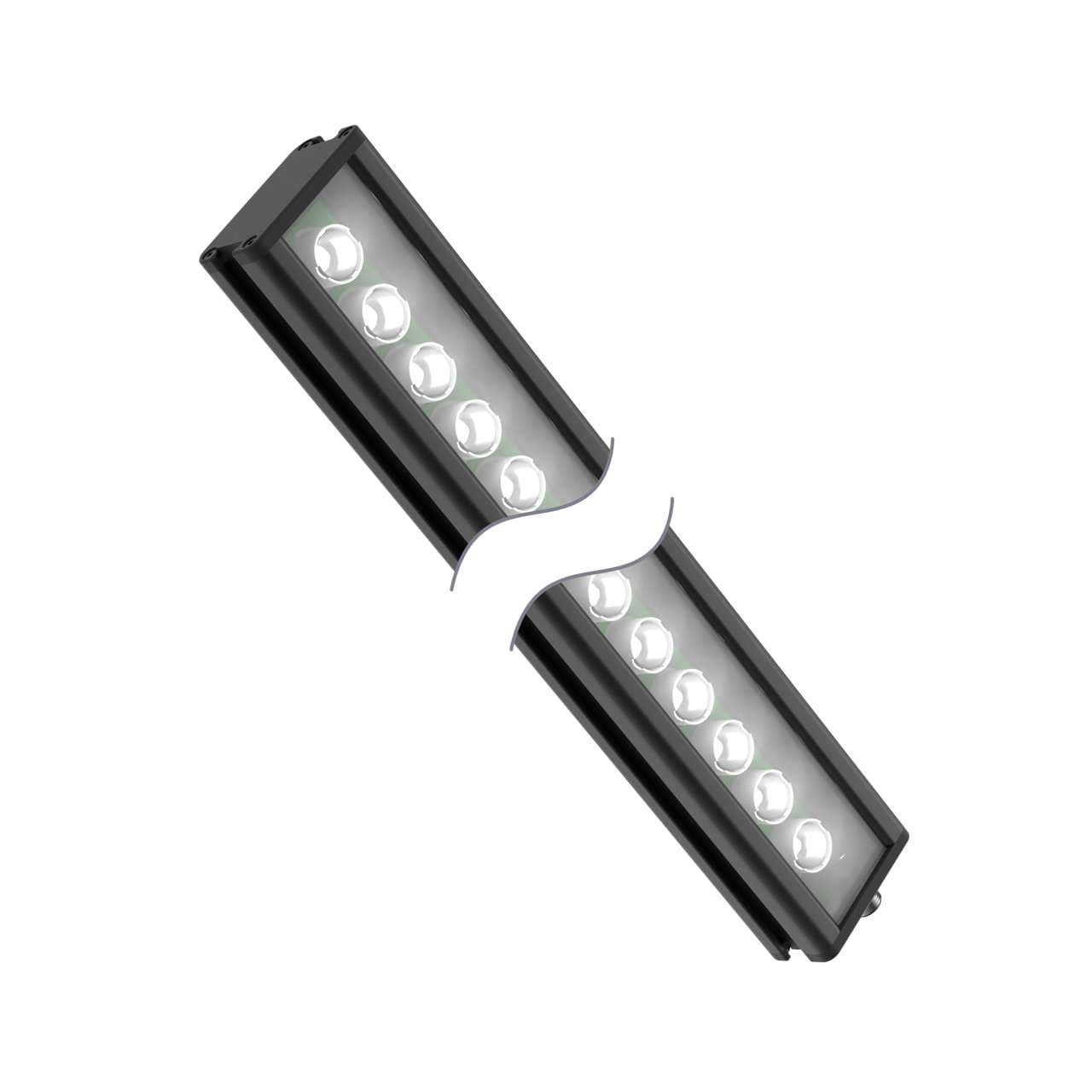

Banner Engineering LEDWLA145XP6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 145mm / 5.7" array length, emitting visible white light. The unit has a rectangular shape and is constructed with a black anodized aluminum housing and an acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDWLA145XP6-XQ operates on a 24Vdc supply voltage and has an IP50 degree of protection.
