LEDWA70AD5-PQ Banner Vision Accessories
Part#:LEDWA70AD5-PQ
Alt. Part#:16172
Manufacturer:Banner
Category:Vision Accessories
Product Lifecycle:Active
Product description

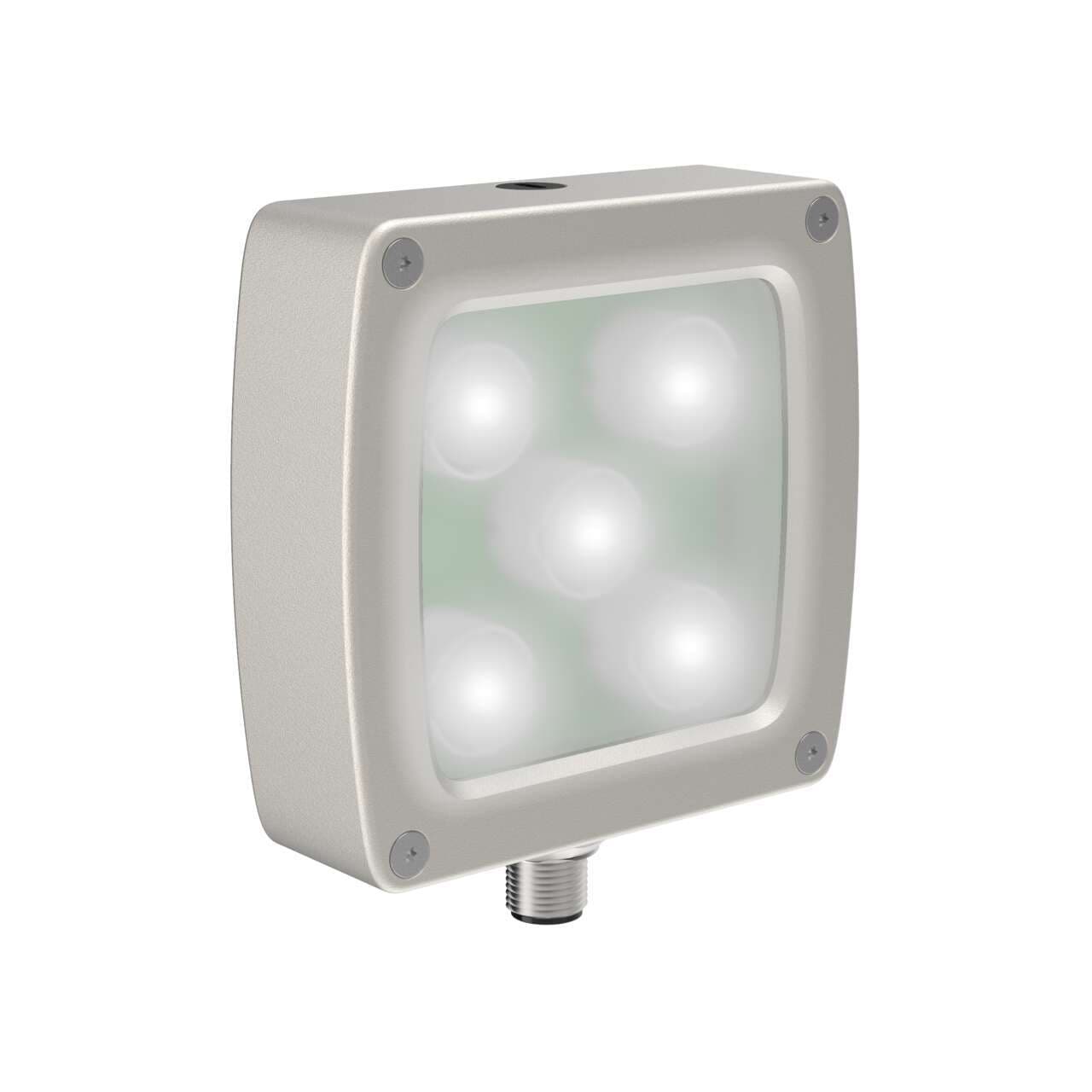

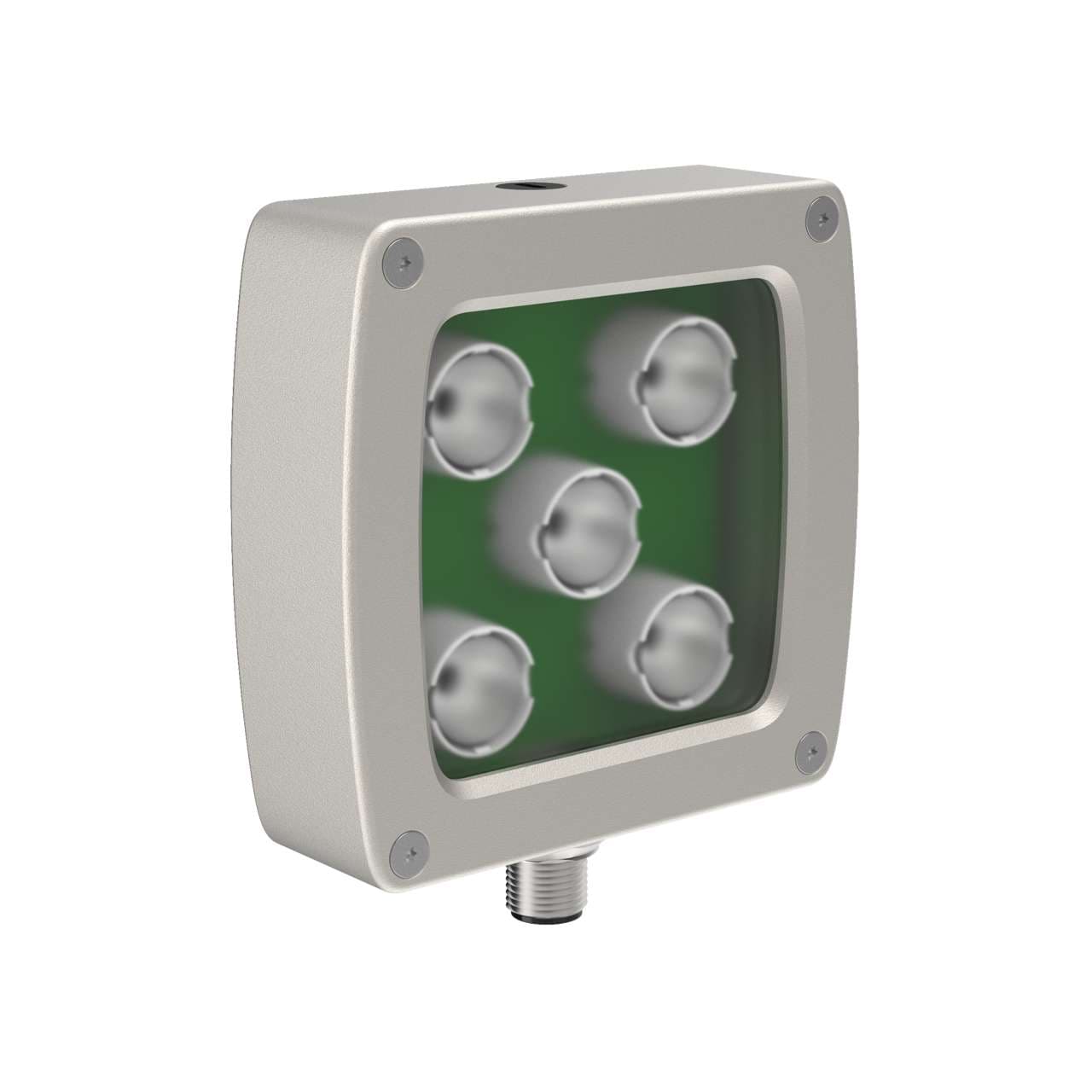

Vision Light - 70 mm Area with Potentiometer; IP68 - 5 High Intensity White LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx
Product Details
- Weight 408.2328 g
- Country Of Origin MX
- Max Op. Temperature (°C) 50
- Supply Voltage 24 V DC
- Physical Dimensions (LxWxH or DxH mm) 102.0 x 91.0 x 28.2
- Max Current Color (mA) 500
- Connection Type Integral QD
- Color Technology Standard LED
- Primary Housing Material Nickel-Plated Aluminum
- Window Material Diffuse Acrylic
- Power DC
- QD Type/Cable Length M12 (Euro) requires mating cordset
- Intensity Adjustment Potentiometer
- Number of Input Pins/Conductors 5
- Housing Style Rectangular
- Device Type Area Light
- Feature: Quick Disconnect Yes
- Color White
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDWA70AD5-PQ on Powermatic Associates is $998.00. Order now.
About the product
Banner Engineering LEDWA70AD5-PQ is an illumination unit designed for area lighting applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer to achieve high-intensity illumination. The unit measures 70x70mm, has a square shape, and emits visible white light. It is constructed with a nickel-plated aluminum housing and a diffused acrylic window for durability. The LEDWA70AD5-PQ comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity and operates on a 24Vdc supply voltage. It is rated with a degree of protection of IP68, indicating a high level of protection against dust and water ingress.
LEDWA70AD5-PQ Related Documents
Similar products from: Banner Vision Accessories
Manufacturer warranty
LEDWA70AD5-PQ Banner
$998.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$998.00
$998.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare LEDWA70AD5-PQ with other Vision Accessories products
Weight
Country Of Origin
Max Op. Temperature (°C)
Supply Voltage
Physical Dimensions (LxWx...
Max Current Color (mA)
Connection Type
Color Technology
Primary Housing Material
Window Material
Selected product
LEDWA70AD5-PQ
Banner
Vision Light - 70 mm Area with Potentiometer; IP68 - 5 High Intensity White LEDs - 24 V dc; Clear Di...
Weight408.2328 g
Country Of OriginMX
Max Op. Temperature (°C)50
Supply Voltage24 V DC
Physical Dimensions (LxWxH or DxH mm)102.0 x 91.0 x 28.2
Max Current Color (mA)500
Connection TypeIntegral QD
Color TechnologyStandard LED
Primary Housing MaterialNickel-Plated Aluminum
Window MaterialDiffuse Acrylic
PSD-24-4
Banner
DC Power Supply - Desktop Style; Input: 90-264 V ac 50/60 Hz: 1.8 m (6 ft) US Style Outlet Plug; Out...
Weight555.6502 g
Country Of OriginCN
Max Op. Temperature (°C)-
Supply Voltage-
Physical Dimensions (LxWxH or DxH mm)-
Max Current Color (mA)-
Connection Type-
Color Technology-
Primary Housing Material-
Window Material-
SMBWLS28RA
Banner
Bracket: Right Hand Mounting (Set of Two) hardware included; Used with WLS28 models
Weight68.0388 g
Country Of OriginMX
Max Op. Temperature (°C)-
Supply Voltage-
Physical Dimensions (LxWxH or DxH mm)-
Max Current Color (mA)-
Connection Type-
Color Technology-
Primary Housing Material-
Window Material-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of LEDWA70AD5-PQ?
Purchase the LEDWA70AD5-PQ from Powermatic Associates at the price of $998.00. Order today.
Out if stock but available for backorder.
Vision Light - 70 mm Area with Potentiometer; IP68 - 5 High Intensity White LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx
