LEDRR80X80W Banner Vision Accessories

Banner LEDRR80X80W PresencePLUS 80 X 80 mm Ring light; Visibile Red LED 24 V dc; 2 m (6.5 ft) Cable with flying leads
Banner

Part#:LEDRR80X80W

Manufacturer:Banner

Alt. Part#:70015

Product Lifecycle:Active

Get a quick Quote!

PresencePLUS 80 X 80 mm Ring light; Visibile Red LED 24 V dc; 2 m (6.5 ft) Cable with flying leads

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRR80X80W Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    317.5144 g
  • Country Of Origin
    US
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Supply Voltage
    24 V dc
  • Physical Dimensions (LxWxH or DxH mm)
    87.3 x 87.3 x 35.5
  • Max Current Color (mA)
    250
  • Connection Type
    Cable
  • QD Type/Cable Length
    2 m
  • Number of Input Pins/Conductors
    3
  • Color
    Red
  • Window Material
    Acrylic
  • Primary Housing Material
    Low-Carbon Steel
  • Device Type
    Ring Light
  • Housing Style
    Rectangular
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRR80X80W Description

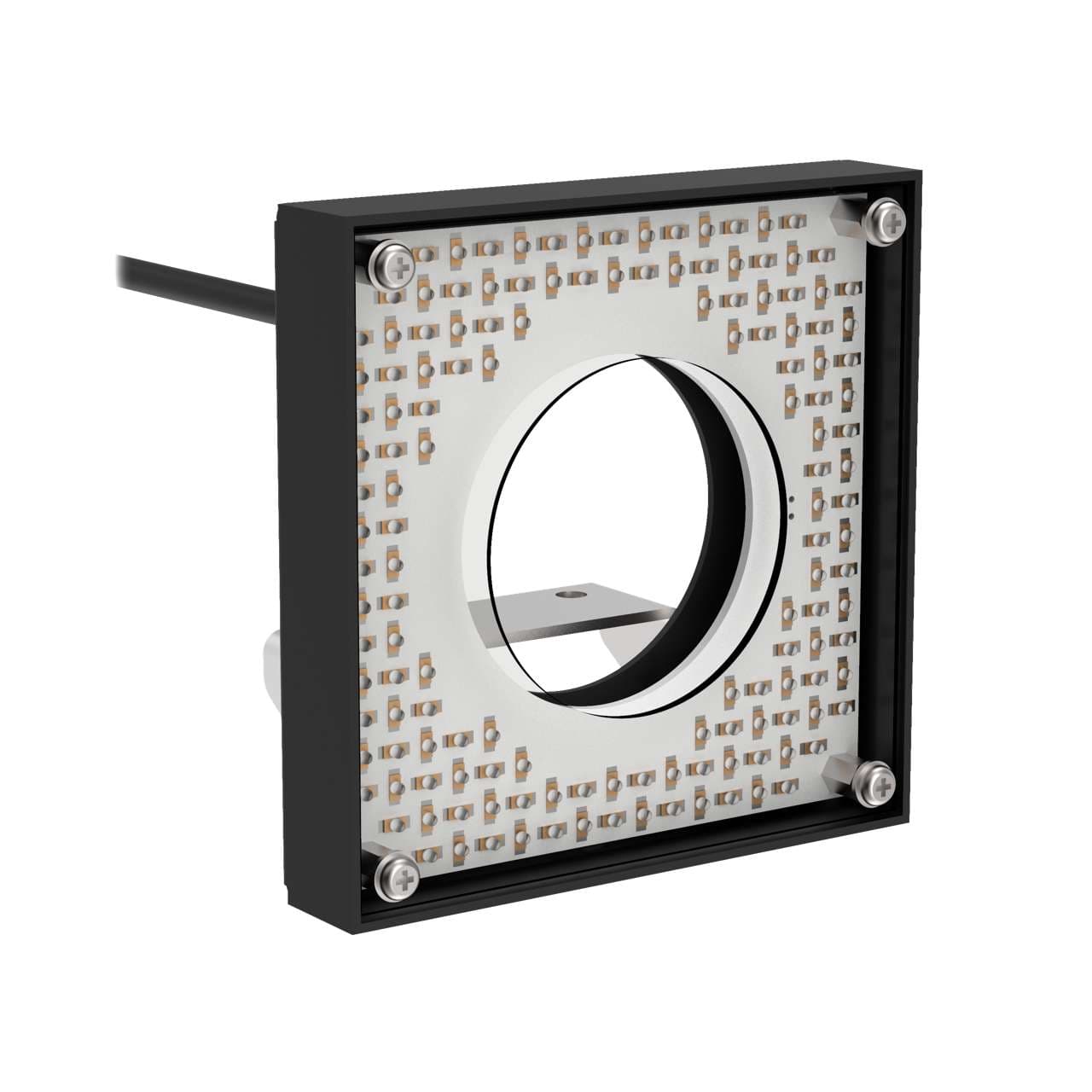

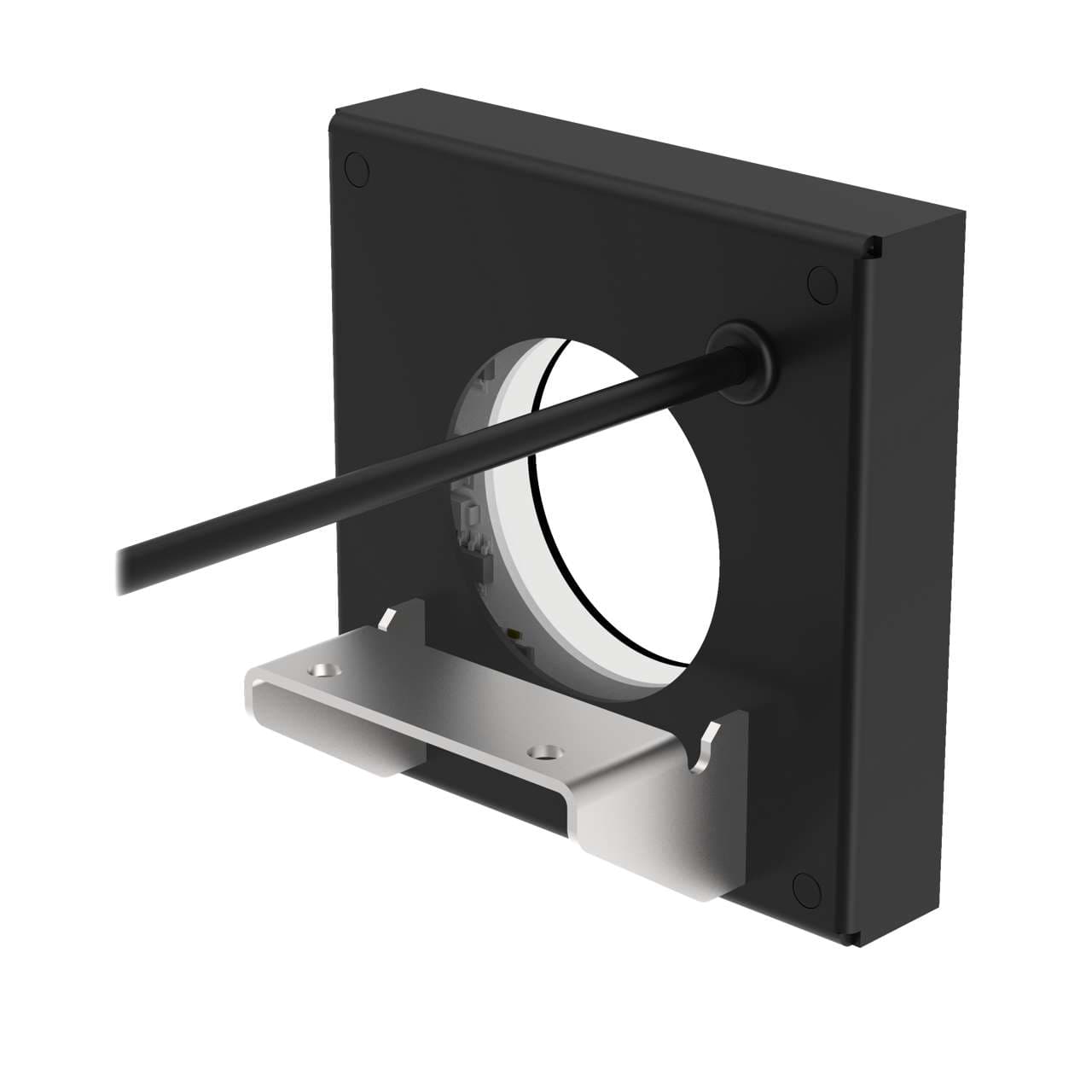

Banner Engineering LEDRR80X80W is an illumination unit designed for ring illumination light applications. It features dimensions of 80x80mm and emits visible red light. The unit has a rectangular shape with a ring passage, constructed from low-carbon steel housing and an acrylic window. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for connectivity. The LEDRR80X80W operates on a supply voltage of 24Vdc.

Related documents LEDRR80X80W Specs

LEDRR80X80W 108626.pdf
