Powermatic Associates Logo

LEDRA80X80W Banner Vision Accessories

LEDRA80X80W on Powermatic Associates
Banner

Part#:LEDRA80X80W

Manufacturer:Banner

Alt. Part#:69905

Product Lifecycle:Active

Get a quick Quote!

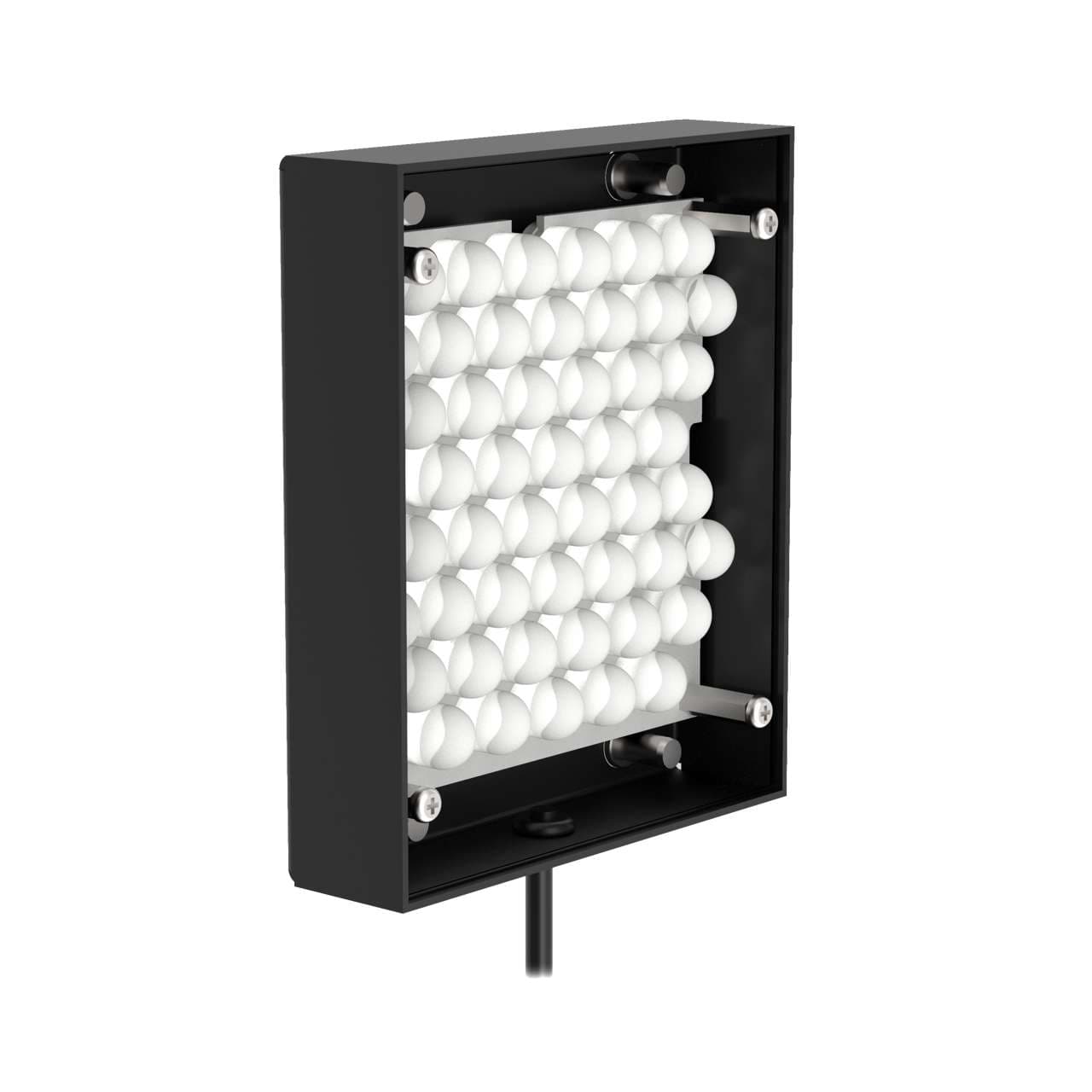

PresencePLUS 80 x 80 mm Area Light; Visible Red LED 24 V dc; 2 m (6.5 ft) Cable with flying leads

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRA80X80W Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    408.2328 g
  • Country Of Origin
    MX
  • Number of Input Pins/Conductors
    3
  • Supply Voltage
    24 V dc
  • Physical Dimensions (LxWxH or DxH mm)
    92.6 x 110.4 x 25.4
  • QD Type/Cable Length
    2 m
  • Max Op. Temperature (°C)
    50
  • Connection Type
    Cable
  • Max Current Color (mA)
    250
  • Primary Housing Material
    Low-Carbon Steel
  • Device Type
    Area Light
  • Window Material
    Acrylic
  • Color Technology
    Standard LED
  • Housing Style
    Rectangular
  • Power
    DC
  • Color
    Red
  • Feature: Quick Disconnect
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRA80X80W Description

Banner Engineering LEDRA80X80W is an area illumination light designed for various applications requiring visible red light. This unit features a square shape with dimensions of 80x80mm, making it suitable for compact spaces. It is constructed with a low-carbon steel housing and an acrylic window to ensure durability and clear light transmission. The LEDRA80X80W is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy installation. It operates on a supply voltage of 24Vdc, making it compatible with a wide range of industrial automation systems.

Related documents LEDRA80X80W Specs

LEDRA80X80W 115607.pdf

Manufacturer warranty

$542.00

Request a quote, and we will send availability within minutes.

Select Qty:

$542.00

$542.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
