LEDRI150-3M Banner Vision Accessories

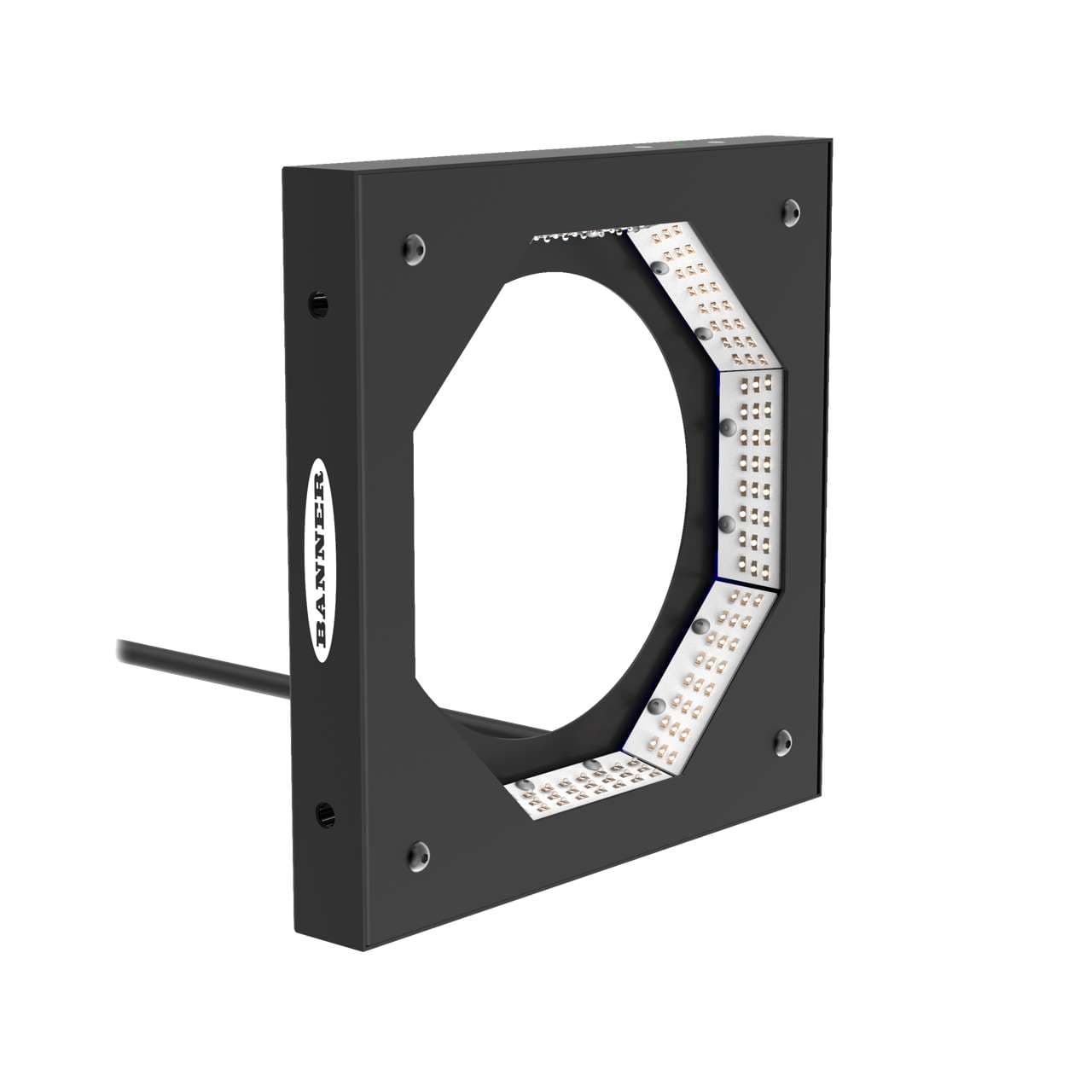

Banner LEDRI150-3M PresencePLUS - 150 mm dia. Low Angle Ring Light; Visible Red LED 24 V dc - 3 rows; 2 m (6.5 ft) cable with with 3-pin male Connector; Connects to P4
Banner

Part#:LEDRI150-3M

Manufacturer:Banner

Alt. Part#:76032

Product Lifecycle:Active

Get a quick Quote!

PresencePLUS - 150 mm dia. Low Angle Ring Light; Visible Red LED 24 V dc - 3 rows; 2 m (6.5 ft) cable with with 3-pin male Connector; Connects to P4

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRI150-3M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    589.6696 g
  • Country Of Origin
    MX
  • Supply Voltage
    24 V DC
  • Power
    DC
  • Physical Dimensions (LxWxH or DxH mm)
    192.5 x 192.5 x 25.8
  • Max Op. Temperature (°C)
    50
  • Feature: Quick Disconnect
    Yes
  • Max Current Color (mA)
    500
  • Color Technology
    Standard LED
  • Color
    Red
  • QD Type/Cable Length
    2 m; M8 (Pico)
  • Connection Type
    Pigtail QD
  • Primary Housing Material
    Anodized Aluminum
  • Number of Input Pins/Conductors
    3
  • Housing Style
    Rectangular
  • Device Type
    Low-Angle Ring Lights

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRI150-3M Description

Banner Engineering LEDRI150-3M is an illumination unit designed for low-angle ring illumination with visible red light. It features a rectangular shape and is constructed from black anodized aluminum housing for durability. This unit is pre-wired with a 6ft / 2m pigtail that terminates with a 3-pin Pico-style M8 connector, facilitating easy and secure connections. It operates on a 24Vdc supply voltage. The design includes a 127mm ring inner diameter, making it suitable for a variety of applications where specific illumination is required.

Related documents LEDRI150-3M Specs

LEDRI150-3M 127582.pdf

Manufacturer warranty

$1,308.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,308.00

$1,308.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
