LEDRB70X70W Banner Vision Accessories

Name: LEDRB70X70W
Brand: Banner
Price: 542 USD
Availability: BackOrder

Part#:LEDRB70X70W

Alt. Part#:69904

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

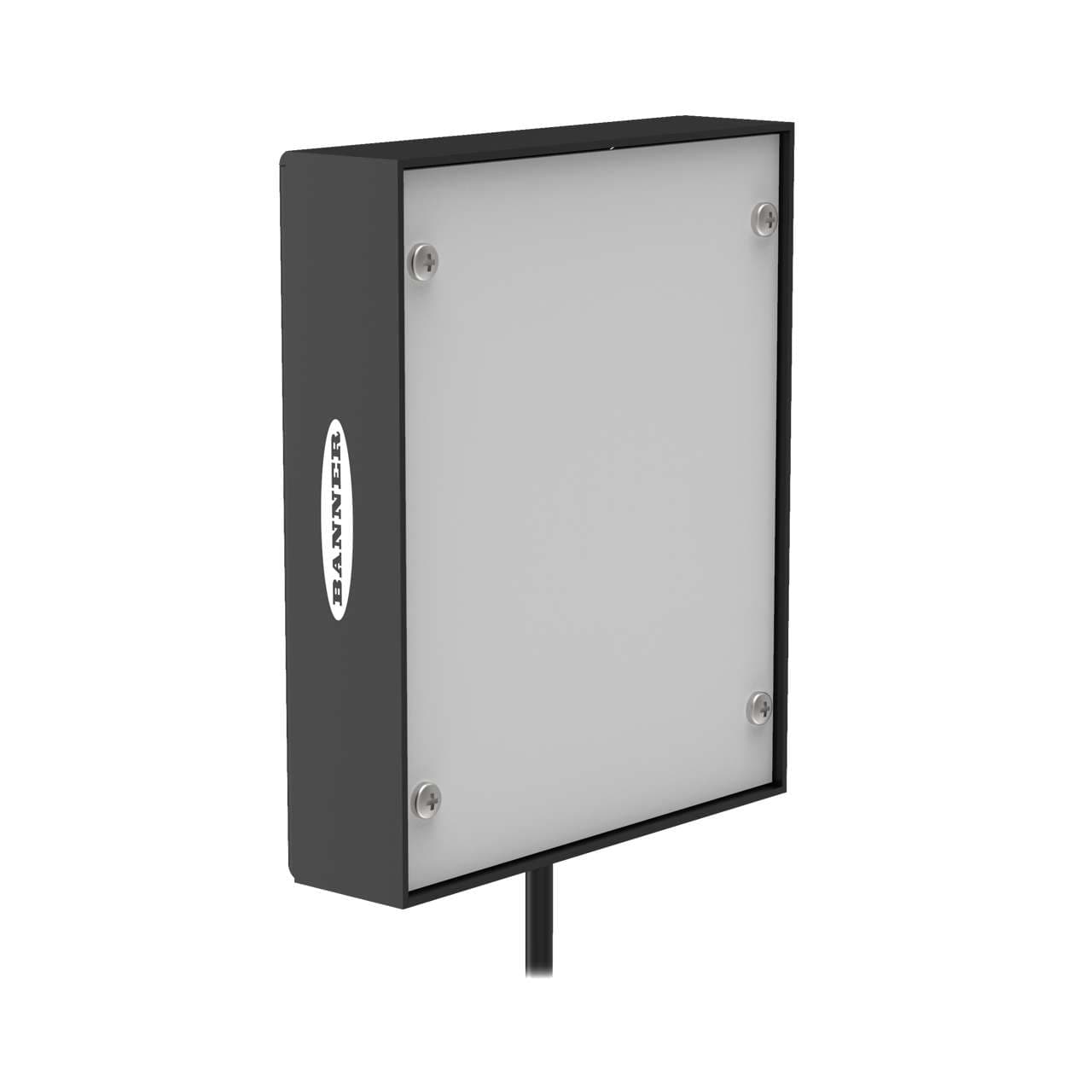

PresencePLUS 70 x 70 mm Backlight; Visible Red LED 24 V dc; 2 m (6.5 ft) Cable with flying leads

Product Details

Weight
362.8736 g
Country Of Origin
MX
Max Op. Temperature (°C)
50
Physical Dimensions (LxWxH or DxH mm)
110.4 x 92.6 x 25.0
Feature: Quick Disconnect
No
Supply Voltage
24 V dc
Max Current Color (mA)
250
Window Material
Acrylic
Color Technology
Standard LED
QD Type/Cable Length
2 m
Number of Input Pins/Conductors
3
Connection Type
Cable
Color
Red
Primary Housing Material
Low-Carbon Steel
Device Type
Backlight
Housing Style
Rectangular
Power
DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDRB70X70W on Powermatic Associates is $542.00. Order now.

About the product

Banner Engineering LEDRB70X70W is an illumination unit designed for backlighting applications. It features a square shape with dimensions of 70x70mm and emits visible red light. The construction includes a low-carbon steel housing and an acrylic window, ensuring durability, while the connection is facilitated by a pre-wired 6.5ft / 2m PUR cable terminated with bare end flying leads for easy integration. This unit operates on a 24Vdc supply voltage, making it suitable for a wide range of industrial automation tasks.
