LEDBR80X80M Banner Vision Accessories

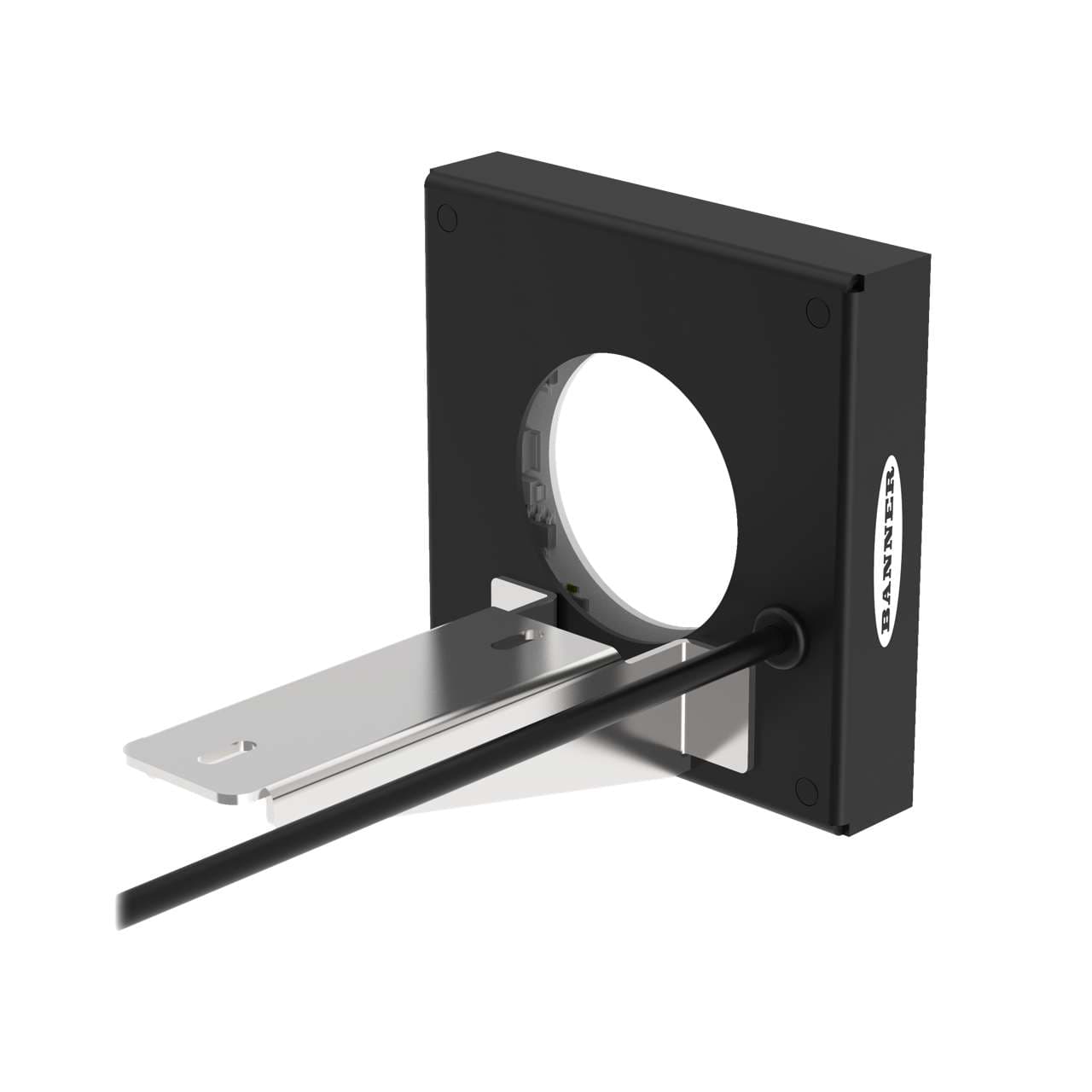

Banner LEDBR80X80M PresencePLUS 80 x 80 mm Ring Light; Visible Blue LED 24 V dc; 0.3 m (1 ft) 3-pin male M8 Pigtail QD; Connects to P4
Banner

Part#:LEDBR80X80M

Manufacturer:Banner

Alt. Part#:72261

Product Lifecycle:Active

Get a quick Quote!

PresencePLUS 80 x 80 mm Ring Light; Visible Blue LED 24 V dc; 0.3 m (1 ft) 3-pin male M8 Pigtail QD; Connects to P4

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDBR80X80M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    217.72416 g
  • Country Of Origin
    US
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    87.3 x 87.3 x 35.5
  • Max Current Color (mA)
    250
  • Feature: Quick Disconnect
    Yes
  • Color Technology
    Standard LED
  • Supply Voltage
    24 V dc
  • Power
    DC
  • Number of Input Pins/Conductors
    3
  • Device Type
    Ring Light
  • Connection Type
    Pigtail QD
  • QD Type/Cable Length
    300 mm; M8 (Pico)
  • Window Material
    Acrylic
  • Color
    Blue
  • Primary Housing Material
    Low-Carbon Steel
  • Housing Style
    Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDBR80X80M Description

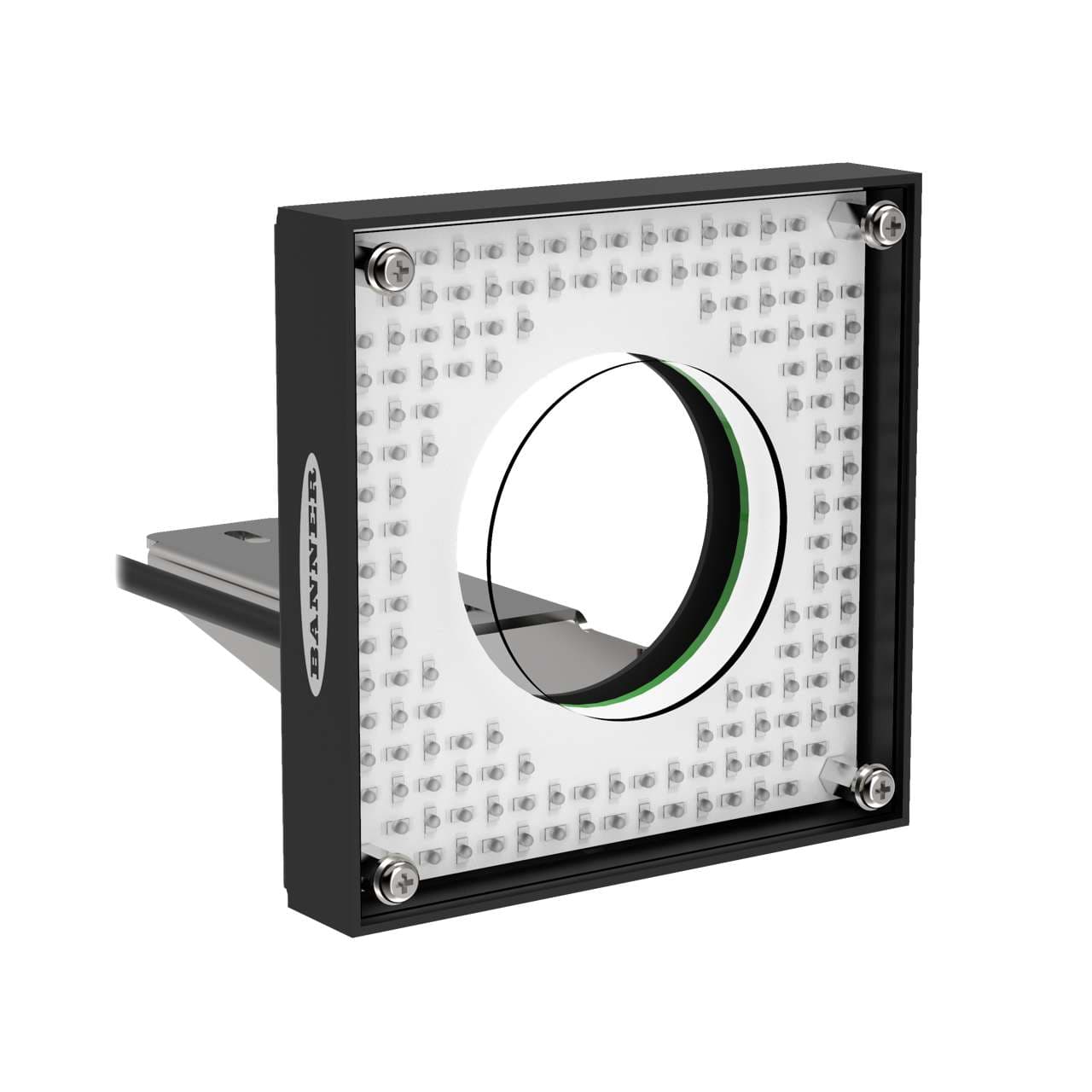

Banner Engineering LEDBR80X80M is an illumination unit designed for ring illumination light applications. It features dimensions of 80x80mm and emits visible blue light. The unit has a rectangular shape with a ring passage, constructed from a low-carbon steel housing and an acrylic window. It comes pre-wired with a 300mm pigtail that terminates with a 3-pin Pico-style M8 connector. The LEDBR80X80M operates on a supply voltage of 24Vdc.

Related documents LEDBR80X80M Specs

LEDBR80X80M 116941.pdf
