LEDBRV75PM Banner Vision Accessories

LEDBRV75PM on Powermatic Associates
Banner

Part#:LEDBRV75PM

Manufacturer:Banner

Alt. Part#:806063

Product Lifecycle:Active

Get a quick Quote!

VE Series Sealed IP67 Ring Light; Visible Blue LED; 24 V dc; Polycarbonate Window; 3-pin M8 QD; Connects to VE Smart Camera; 75 mm Length

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDBRV75PM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    512.55896 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Min Op. Temperature (°C)
    -20
  • Max Current Color (mA)
    270
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    98.0 x 75.8
  • Color Technology
    Standard LED
  • Housing Style
    Round
  • Device Type
    Ring Light
  • Power
    DC
  • Connection Type
    Pigtail QD
  • Number of Input Pins/Conductors
    3
  • QD Type/Cable Length
    350 mm; M8 (Pico)
  • Color
    Blue
  • Primary Housing Material
    Aluminum
  • Window Material
    Polycarbonate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDBRV75PM Description

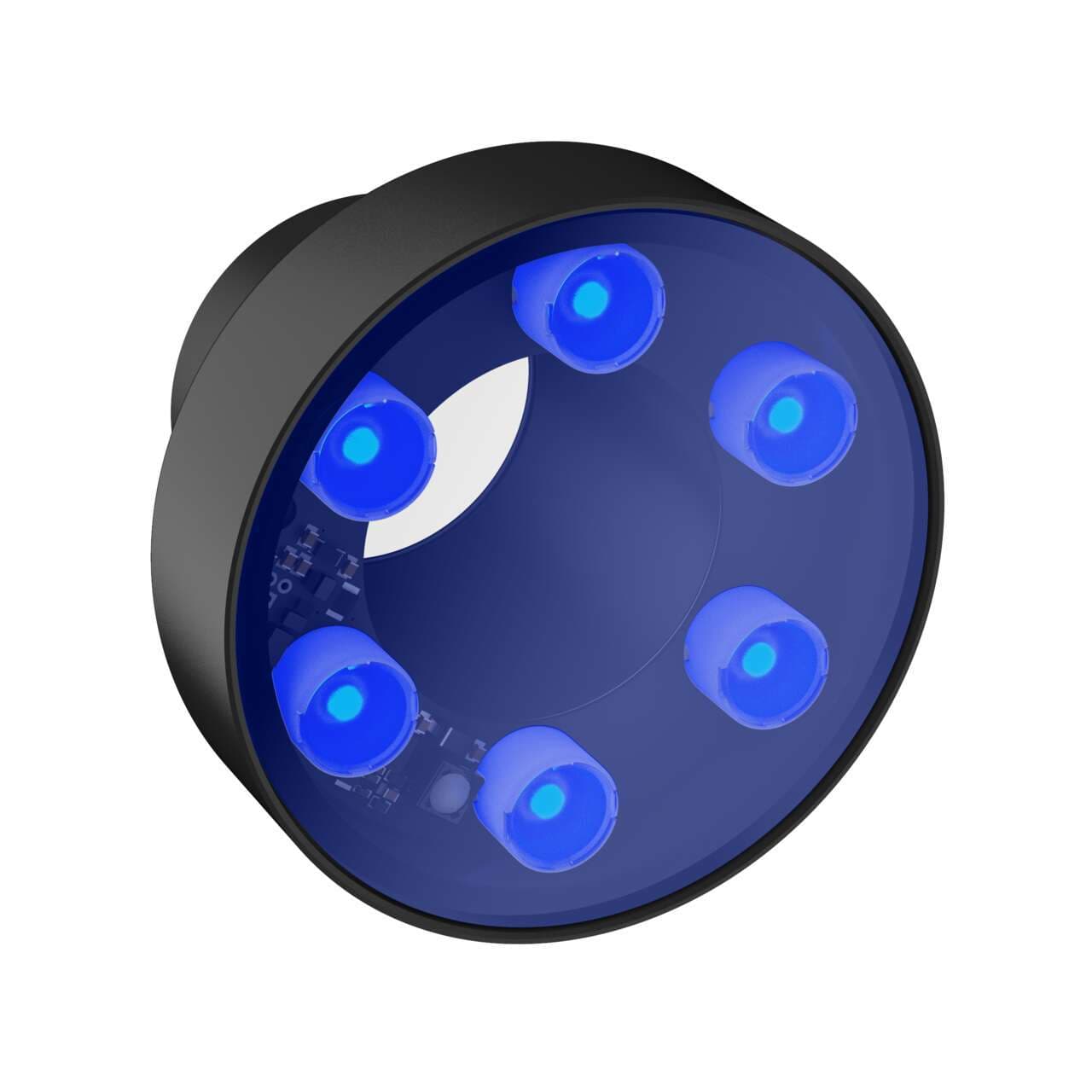

Banner Engineering LEDBRV75PM is a sealed high-intensity ring illumination light designed for various applications requiring visible blue light. This unit features a circular shape with a 98mm ring diameter, constructed from an aluminum housing and a polycarbonate (PC) window for durability. It is pre-wired with a 350mm pigtail that terminates with a 3-pin Pico-style M8 connector, facilitating easy and secure connections. The LEDBRV75PM operates on a 24Vdc supply voltage and is rated with an IP67 degree of protection, indicating its capability to withstand dust and water ingress, making it suitable for challenging environments.

Related documents LEDBRV75PM Specs

LEDBRV75PM 208788.pdf

Manufacturer warranty

$751.00

Request a quote, and we will send availability within minutes.

Select Qty:

$751.00

$751.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
