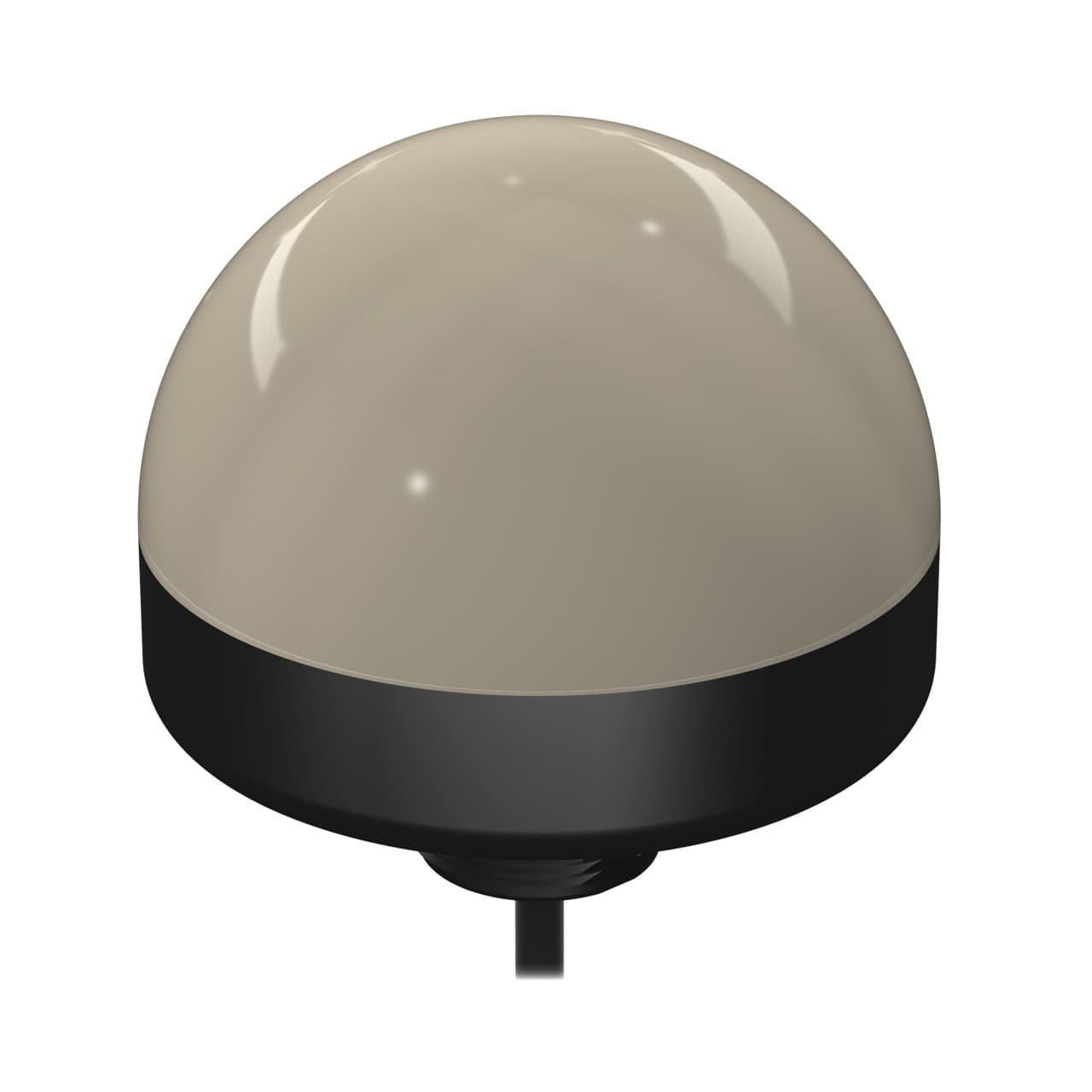

K90TLWBGYRN Banner Electronic Components

Product Details

• Wireless
  No
• Feature: Quick Disconnect
  No
• Multi-Color Device
  Single Color On - Alternating
• Pro-Editor Compatible (Discrete)
  No
• Modbus RTU
  No
• IO Link
  No
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Feature: Hazardous Area
  No
• Primary Window Material
  Polycarbonate Diffused
• Min Op. Temperature (°C)
  -40
• Max Op. Temperature (°C)
  50
• NEMA Type and UL Type Rating
  NEMA 4X, 13
• Max Input Response Time (ms)
  150
• Environmental Rating
  IP67
• Physical Dimensions (LxWxH or DxH mm)
  90.0 x 87.0
• Input Type
  NPN
• Number of Input Pins/Conductors
  8
• Supply Voltage
  12-30 V dc
• Wire Selectable Function
  Multi-Function
Max Current Color (mA)
475
Color 5 - Wavelength/Color Temp/Coordinates
625 nm
Lumens Color 5
65.0
Color Option 5
Red
Color 4 - Wavelength/Color Temp/Coordinates
590 nm
Lumens Color 4
35.0
Lumens Color 3
150
Color 3 - Wavelength/Color Temp/Coordinates
525 nm
Color Option 4
Yellow
Color Option 3
Green
Color Option 2
Blue
Lumens Color 2
55.0
Connection
Cable
Color 2 - Wavelength/Color Temp/Coordinates
470 nm
Color 1 - Wavelength/Color Temp/Coordinates
6500K (Cool)
Lumens Color 1
200
Animation Option 1
Solid On
Color Option 1
White
Color Technology
Standard LED
Indication
Yes
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Mounting Thread
M30 x 1.5
Product Size (mm)
90
Number of Colors / Segments
5
Power Source
DC
Primary Housing Material
Polycarbonate
Power
DC
Housing Style
Base Mount - Dome Window
