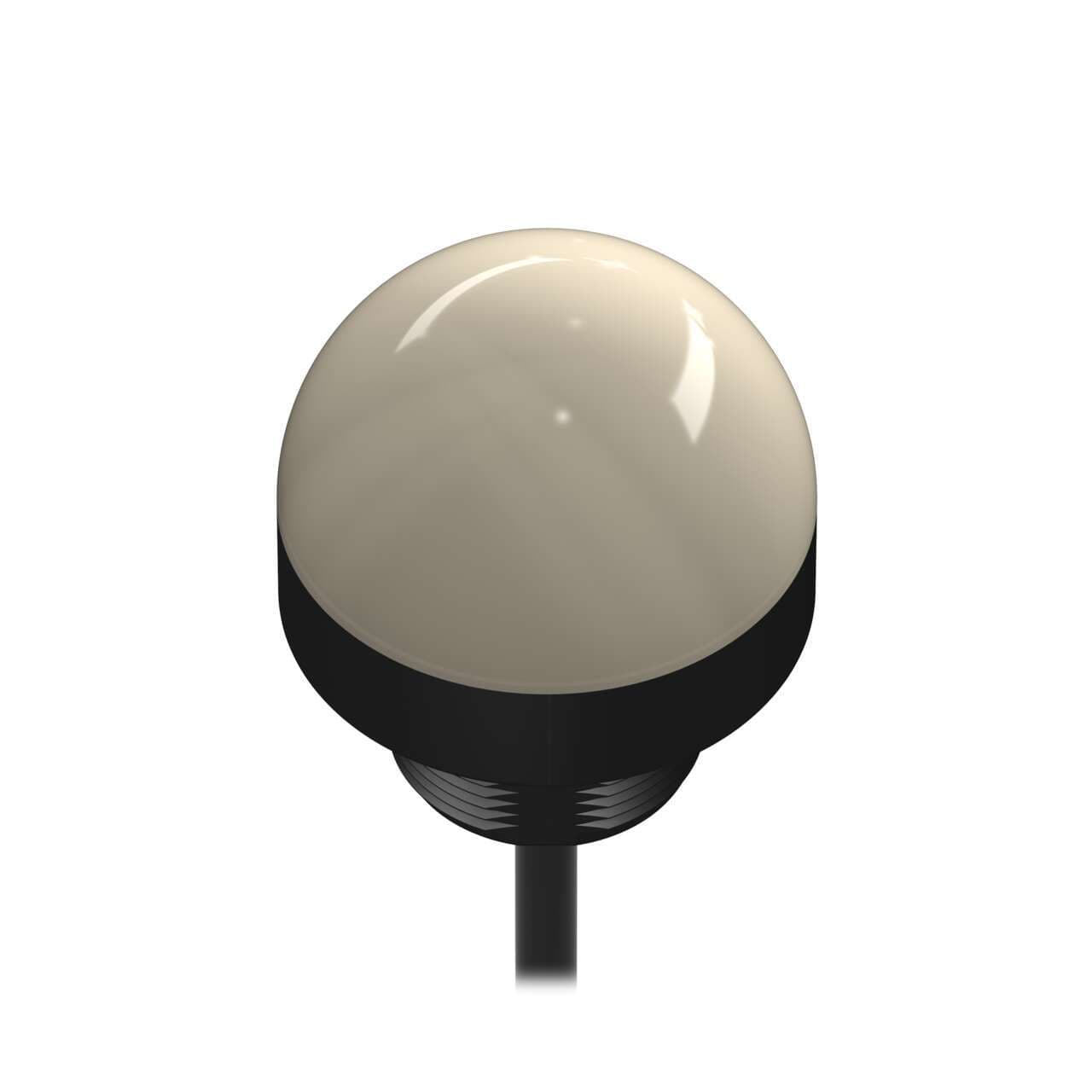

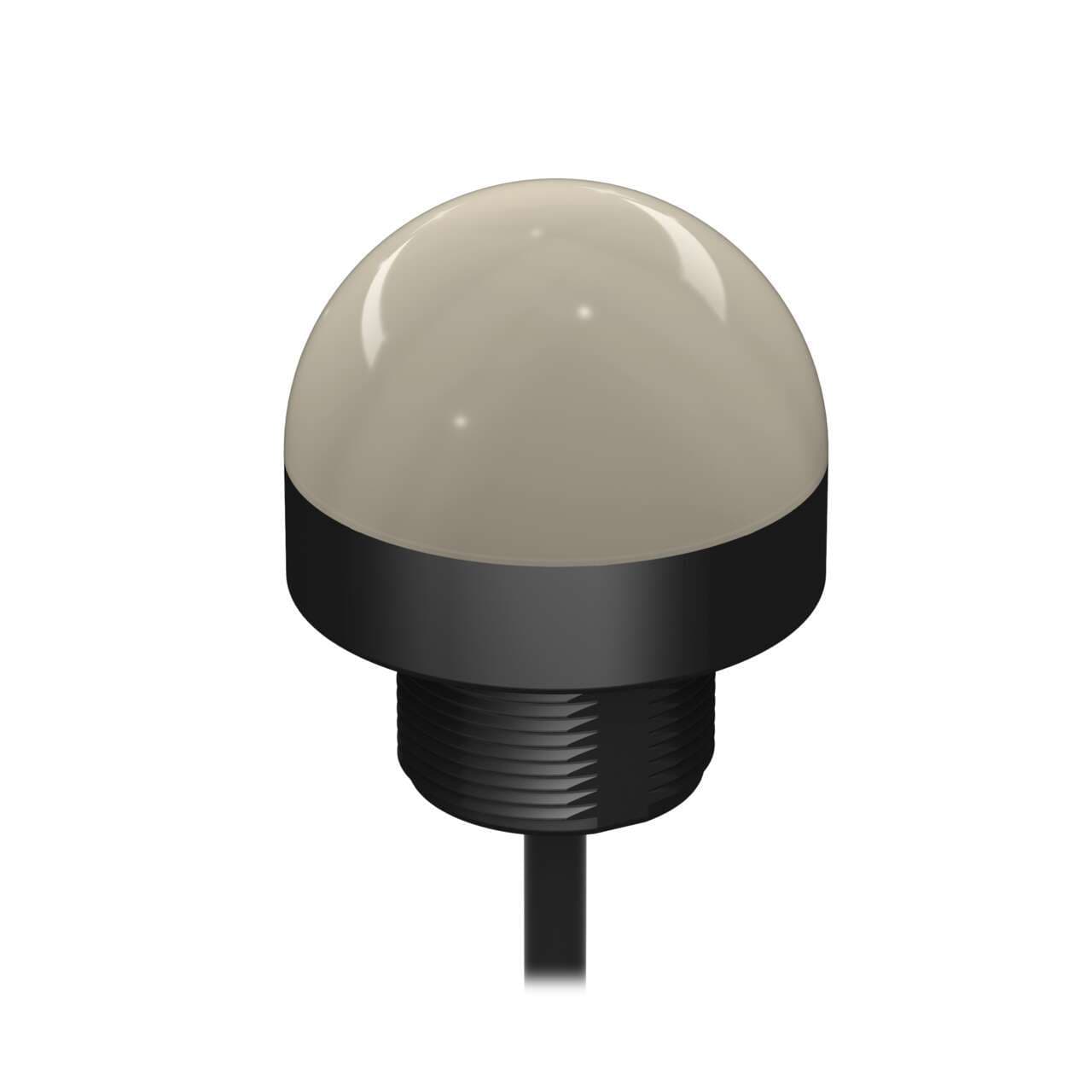

K50LGRY2PQP Banner Pick-to-Light Sensors

Product Details

• Weight
  145.14944 g
• Country Of Origin
  MX
• IO Link
  No
• Wireless
  No
• Pro-Editor Compatible (Discrete)
  No
• Modbus RTU
  No
• Multi-Color Device
  Single Color On
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Feature: Hazardous Area
  No
• Feature: Washdown Rated
  Yes
• Primary Housing Color
  Black
• Min Op. Temperature (°C)
  -40
• Primary Window Material
  Polycarbonate Diffused
• Environmental Rating
  IP67; IP69
• Max Op. Temperature (°C)
  50
• Physical Dimensions (LxWxH or DxH mm)
  50.0 x 58.0
• Input Type
  PNP
• Max Input Response Time (ms)
  250
• Number of Input Pins/Conductors
  5
Supply Voltage
18-30 V dc
Wire Selectable Function
Multi-Function
Max Current Color (mA)
50
Animation Option 3
Multiple
Color Option 3
Yellow
Animation Option 2
Multiple
Quick Disconnect Type
M12 (Euro)
Animation Option 1
Multiple
Connection
Pigtail QD
Color Option 1
Green
Color Technology
Standard LED
Color Option 2
Red
Product Size (mm)
50
Number of Colors / Segments
3
Mounting Thread
M30 x 1.5
Indication
Yes
Primary Housing Material
Polycarbonate
Power
DC
Housing Style
Base Mount - Dome Window
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Power Source
DC
Cable Length (m)
0.15
