K30PTKQ Banner Pick-to-Light Sensors

K30PTKQ on Powermatic Associates
Banner

Part#:K30PTKQ

Alt. Part#:809273

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Pro Touch with IO-Link Series: RGB Touch Sensor; Voltage: 18-30 V dc; Housing: Polycarbonate; Environ. Rating: IP67 IP69K; Colors: Multicolor; 4-pin M12 Integral QD

Product Details

  • Weight
    72.121128 g
  • Country Of Origin
    MX
  • Primary Window Material
    Polycarbonate Diffused
  • Modbus RTU
    No
  • Multi-Color Device
    Simultaneous Colors On
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • IO Link
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • Min Op. Temperature (°C)
    -40
  • Button Operation
    Programmable
  • Max Op. Temperature (°C)
    50
  • Primary Housing Color
    Black
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 54.5
  • Storage Temp (°C)
    -40 to 70
  • Environmental Rating
    IP67; IP69
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Max Output Response Time (ms)
    300
  • Input Type
    Communication Protocol
  • I/O Block Compatible
    Yes
  • Output Type
    Communication Protocol
  • Supply Voltage
    18-30 V dc
  • Operation
    Programmable
  • Dimming Option
    Programmable
  • Color Option 1
    RGB
  • Quick Disconnect Type
    M12 (Euro)
  • Max Input Response Time (ms)
    5
  • Number of Input Pins/Conductors
    4
  • Pick-to-Light Function
    Programmable
  • Max Current Color (mA)
    40
  • Connection
    Integral QD
  • Color Technology
    RGB IO-Link
  • Animation Option 1
    Programmable
  • Product Size (mm)
    30
  • Number of Colors / Segments
    Programmable
  • Cable Length (m)
    0.15
  • Mounting Thread
    M22 x 1.5
  • Actuation
    Yes
  • Color Input Control
    Communication Protocol
  • Activation Function
    Capacitive Touch
  • Housing Style
    Base Mount - Dome Window
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30PTKQ on Powermatic Associates is $145.00. Order now.


About the product

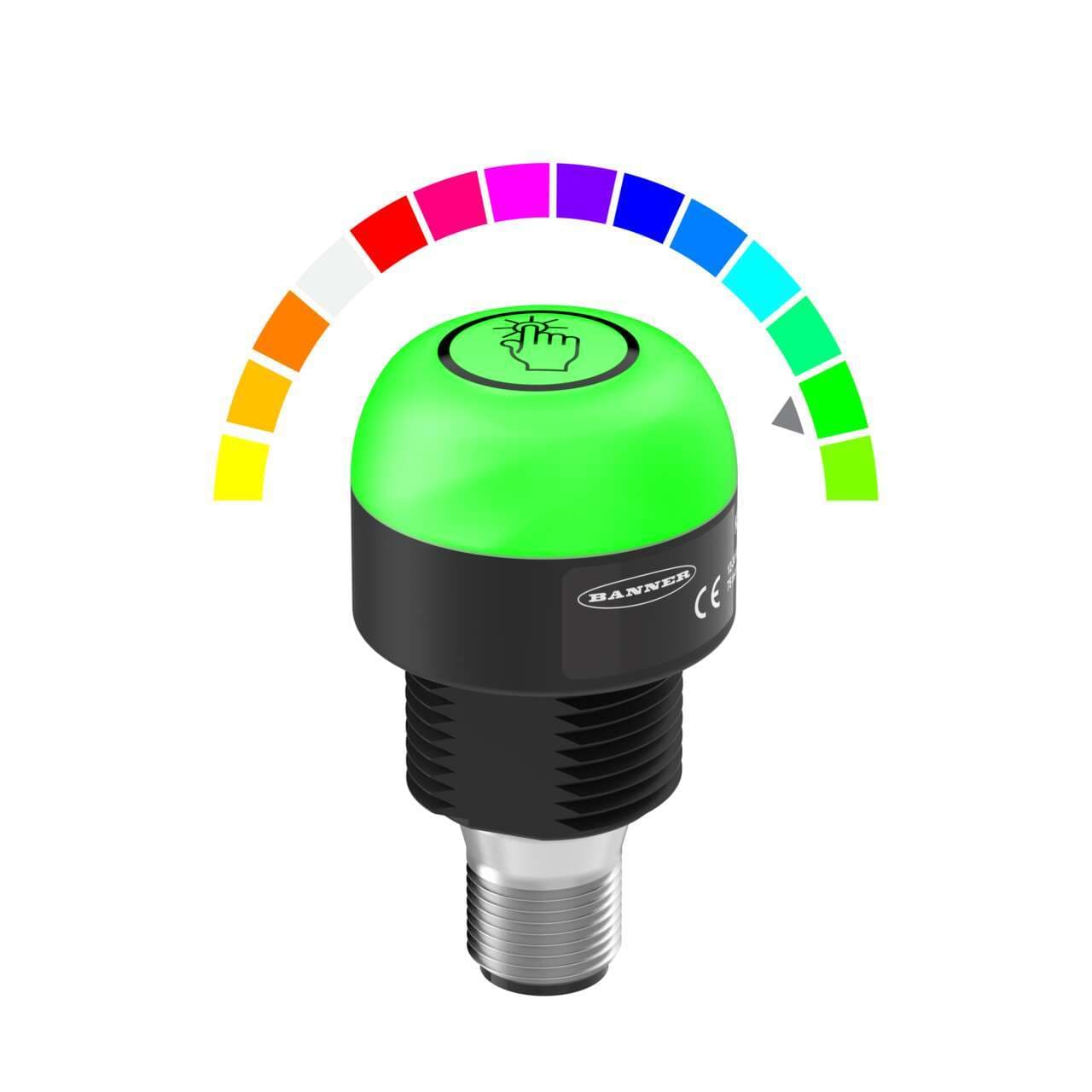

Banner Engineering K30PTKQ is a programmable capacitive touch-sensitive button featuring IO-Link compatible 14-color multicolor LED illumination. This part comes in a black housing with a dome window shape made of polycarbonate. It is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector. The supply voltage required ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It offers flexible mounting options, including surface or base pole with an M22 thread, and has a diameter of 30mm or approximately 1-3/16 inches for the dome. The K30PTKQ can operate in ambient air temperatures ranging from -40°C to +50°C and is designed with a degree of protection rated at IP67 and IP69K. Its operating modes can be programmed as either momentary or latched, and it has a current consumption of 40mA.



K30PTKQ Related Documents

Manufacturer warranty

K30PTKQ Banner

$145.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$145.00

$145.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality equipment, Banner's product suite includes photoelectric sensors, ultrasonic sensors, vision sensors, and fiber optic assemblies, each designed to enhance operational efficiency and reliability across diverse industries. Banner's sensors are critical components in manufacturing and process environments, helping automate complex tasks with accuracy and speed. Their photoelectric sensors, for instance, are used for detecting the presence or distance of objects with exceptional reliability, ensuring that production lines operate smoothly and efficiently. Ultrasonic sensors provide robust performance in harsh conditions, making them ideal for industries such as food and beverage, automotive, and logistics where environmental challenges are common. A key feature of Banner's offerings is their comprehensive selection of machine safety products, including safety switches, light curtains, emergency stop devices, and safety control modules. These devices play a pivotal role in protecting personnel and equipment from potential hazards, thereby promoting a safer workplace and compliance with stringent safety regulations. In the realm of industrial automation, connectivity is crucial, and Banner excels with its wireless solutions. Their industrial wireless systems enable seamless communication between machines and control systems, facilitating remote monitoring, timely response to system changes, and reduced downtime. This is particularly beneficial for customers looking to adopt smart manufacturing practices as part of Industry 4.0 initiatives. Moreover, Banner's energy-efficient LED lighting products improve visibility and reduce energy consumption within facilities. From task lighting to indication, their lighting solutions contribute to enhanced working conditions and operational savings. By partnering with Banner, Powermatic Associates ensures access to these world-class automation technologies, which not only streamline customer operations but also pave the way for innovation and growth. Our collaboration empowers businesses to implement tailored solutions that boost productivity and maintain competitive advantage. Together with Powermatic Associates' unmatched distribution capabilities and technical support, clients can seamlessly integrate Banner's state-of-the-art products into their automated systems, ensuring optimal performance and operational success.

Relevant products

FAQ

What is the price of K30PTKQ?
The price of K30PTKQ on Powermatic Associates is $145.00. Order now.

Out if stock but available for backorder.

K30 Pro Touch with IO-Link Series: RGB Touch Sensor; Voltage: 18-30 V dc; Housing: Polycarbonate; Environ. Rating: IP67 IP69K; Colors: Multicolor; 4-pin M12 Integral QD
