K30LGXXPPB2Q Banner Pick-to-Light Sensors
Part#:K30LGXXPPB2Q
Manufacturer:Banner
Category:Pick-to-Light Sensors
Alt. Part#:25415
Product Lifecycle:Active
Get a quick Quote!

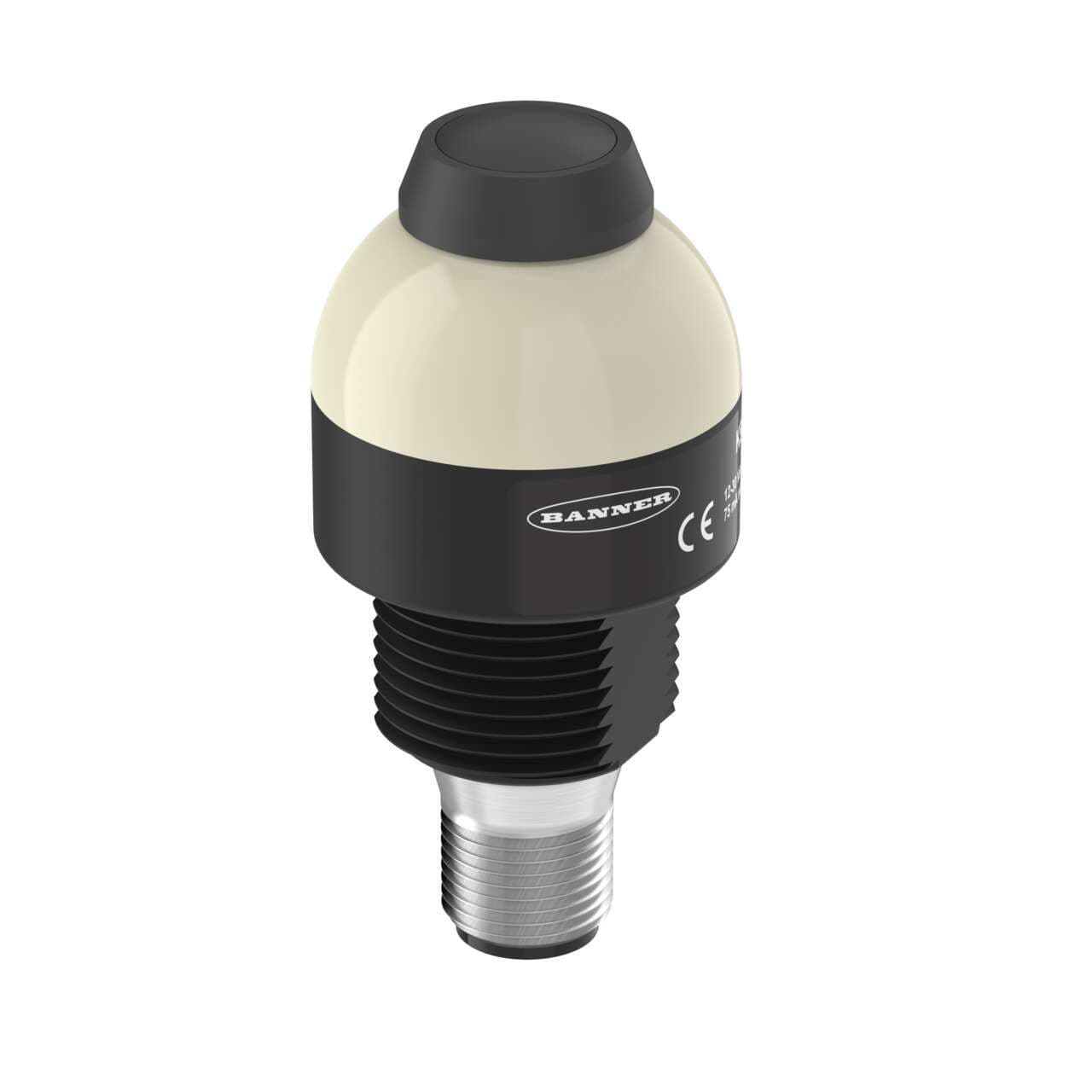

K30L Series EZ-LIGHT: 1-Color Indicator with Dry Contact Switch; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K30LGXXPPB2Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 63.50288 g
- Country Of Origin MX
- Supply Voltage 10-30 V dc
- Operation Normally Open
- Connection Integral QD
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- Wireless No
- IO Link No
- Multi-Color Device Single Color On
- Feature: Quick Disconnect Yes
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- Secondary Material Thermoplastic
- Primary Window Material Polycarbonate Diffused
- Button Operation Momentary
- Max Op. Temperature (°C) 50
- Primary Housing Color Black
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -40
- NEMA Type and UL Type Rating NEMA 13
- Environmental Rating IP67
- Max Output Response Time (ms) 10
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 62.8
- Output Type Dry Contact
- Max Input Response Time (ms) 1
- Input Type PNP
- Number of Input Pins/Conductors 4
- Max Current Color (mA) 40
- Quick Disconnect Type M12 (Euro)
- Animation Option 1 Solid On
- Color Option 1 Green
- Color Technology Standard LED
- Housing Style Base Mount - Dome Window
- Product Size (mm) 30
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 1
- Mounting Thread M22 x 1.5
- Actuation Yes
- Primary Housing Material Polycarbonate
- Activation Function Push-Button
- Power Source DC
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
K30LGXXPPB2Q Description
Banner Engineering K30LGXXPPB2Q is an illuminated push-button featuring a 1-color green LED illumination within a black housing. The design includes a dome window made from diffused polycarbonate (PC) and a base of the same material. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector. This push-button operates within a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and supports surface, base, or pole flush mounting in a 22mm hole with an M22 thread. The dome diameter measures 30mm or approximately 1-3/16 inches. It is designed to function in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and NEMA 13. The operating mode is momentary NO (Normally Open) touch output, with a current consumption of 40mA. It features 1 x digital input for color control (10-30Vdc; PNP) and 1 x digital output (NO relay contact type), along with 1 NO auxiliary contact and 0 NC (Normally Closed) auxiliary contacts.
