IVU2PTBI16 Banner Barcode Readers

Name: IVU2PTBI16
Brand: Banner

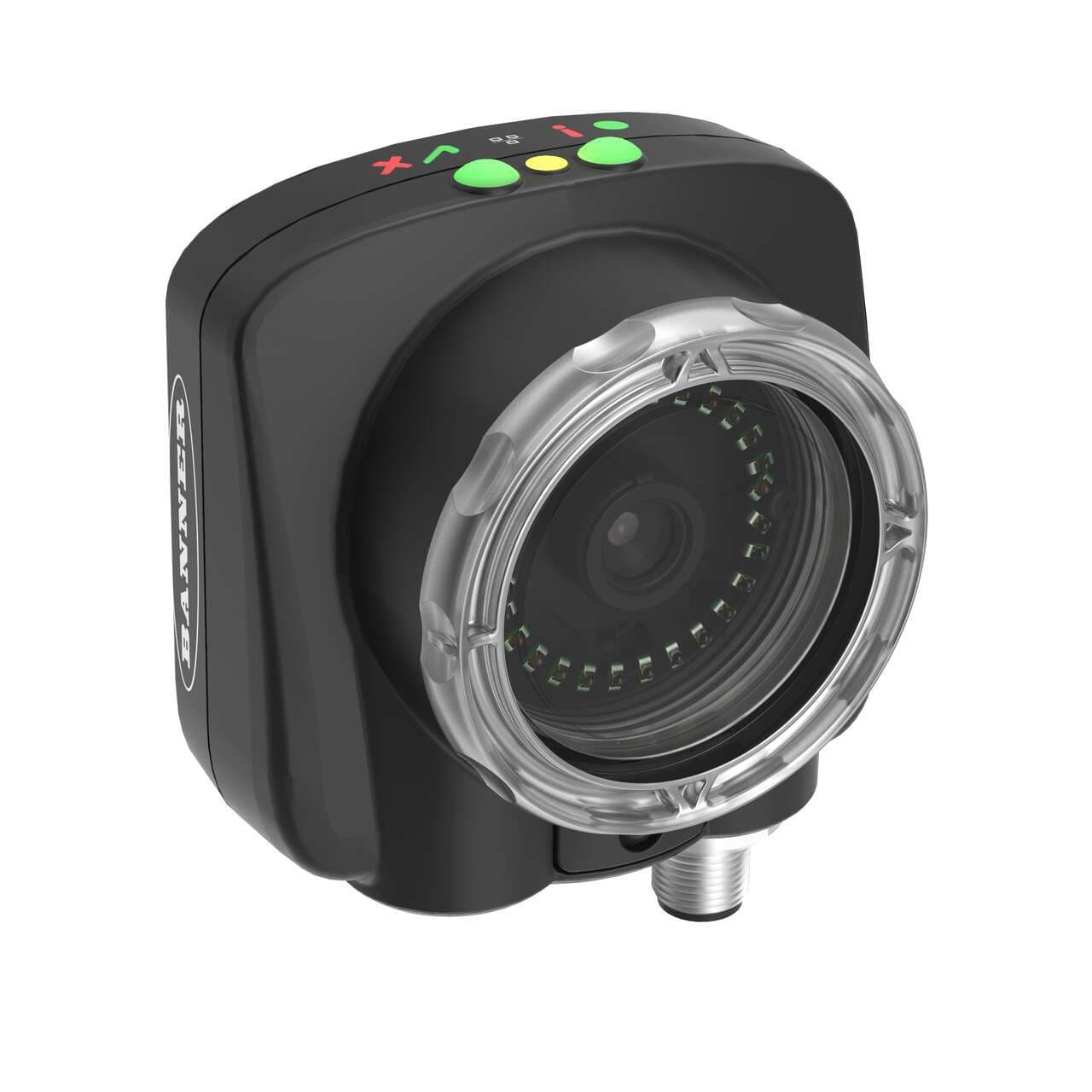

Banner IVU2PTBI16 iVu PLUS BCR Gen2 Sensor with Ethernet; IR Ring Light and 16 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Part#:IVU2PTBI16

Manufacturer:Banner

Alt. Part#:90871

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS BCR Gen2 Sensor with Ethernet; IR Ring Light and 16 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PTBI16 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
571.52592 g
Country Of Origin
CN
RS-232
Yes
Light Color
Infrared
FTP
No
PROFINET
Yes
RS-422
No
PCCC
Yes
Modbus/TCP
Yes
Common Ethernet Protocol
No
Feature: PC Interface
Yes
Feature: Touchscreen Interface
Yes
EtherNet/IP
Yes
Touchscreen Display
Integrated
USB
No
Imager Type
Grayscale
Feature: Washdown Rated
Yes
Lens (mm)
16
Image Resolution
752 x 480 pixels
Code Type
1D, 2D

IP Rating

IP67

Camera Housing Size (HxWxL mm)

79 x 81 x 52

Primary Housing Material

Thermoplastic

Device Type

Imager BCR

Display

Touchscreen display

Main function

Sensor (Vision)

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Connection type

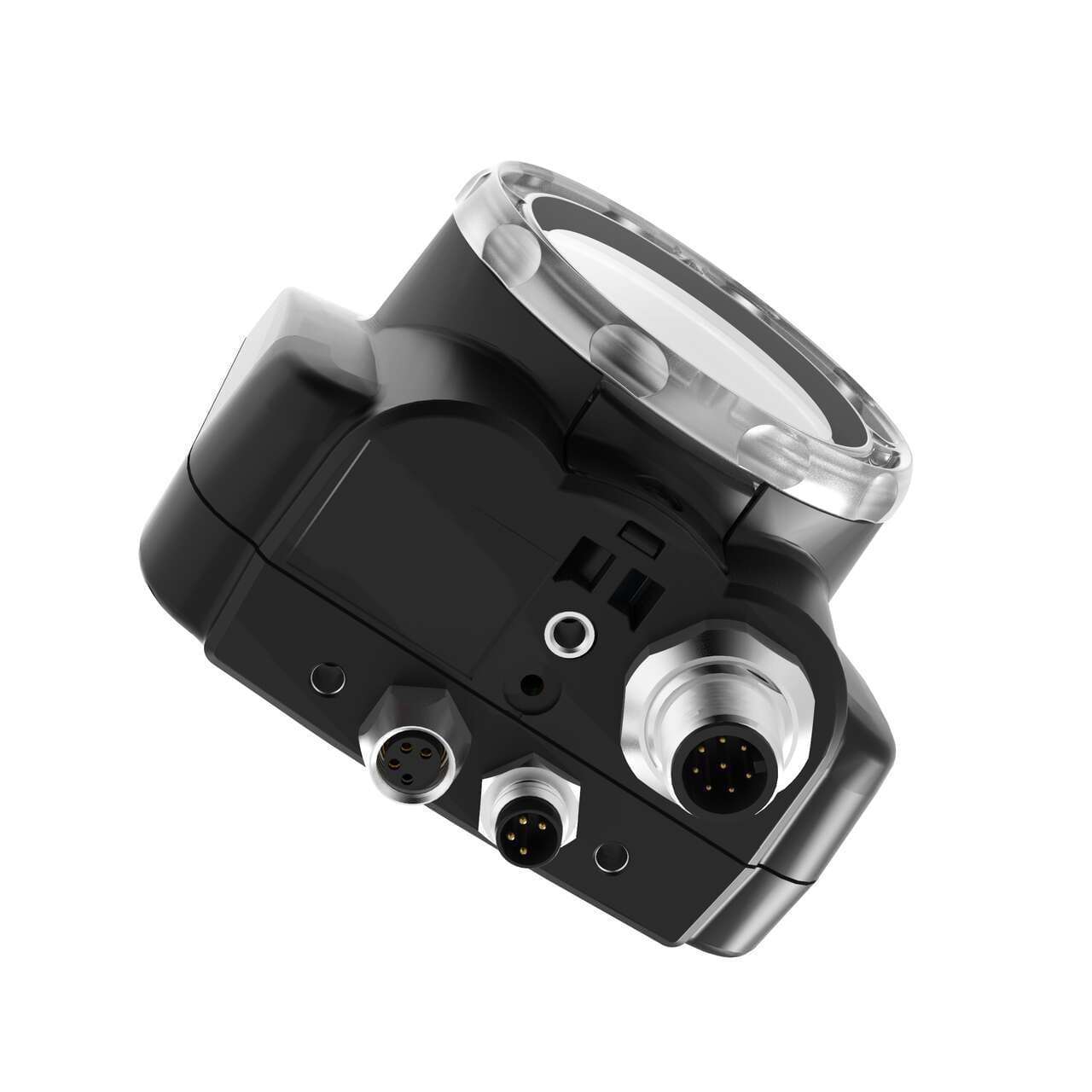

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Mounting mode

C-mount

Net Width (mm)

81 mm

Degree of protection

IP67

Compliant with standard(s)

cULus CE

Net Depth (mm)

52 mm

Material

thermoplastic housing Acrylic window

Order code / Manufacturer SKU

90871

Digital outputs

1 x digital output (PNP/NPN transistor)

Type of lens

16mm

Color

Black housing

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Design

built-in touchscreen 16mm optical lns. infrared (IR) LED ring light illumination grayscale sensor

Refresh rate (fps)

60fps

Primary brand

Banner Engineering

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Ambient air temperature for operation

0...+45 °C

Net Height (mm)

79 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PTBI16 Description

Banner Engineering IVU2PTBI16 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a built-in touchscreen and a 16mm optical lens. This unit is equipped with an infrared (IR) LED ring light for illumination and has the capacity to store up to 30 inspections. The scanner is housed in a black thermoplastic casing with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for remote display purposes. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. The device operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It is designed for C-mount installation and measures 79mm in height, 81mm in width, and 52mm in depth. The IVU2PTBI16 operates effectively in ambient air temperatures ranging from 0 to +45°C and offers a degree of protection rated at IP67. It features a digital output (PNP/NPN transistor) and delivers a refresh rate of 60 frames per second.
