Part#:IT2.83SM6

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

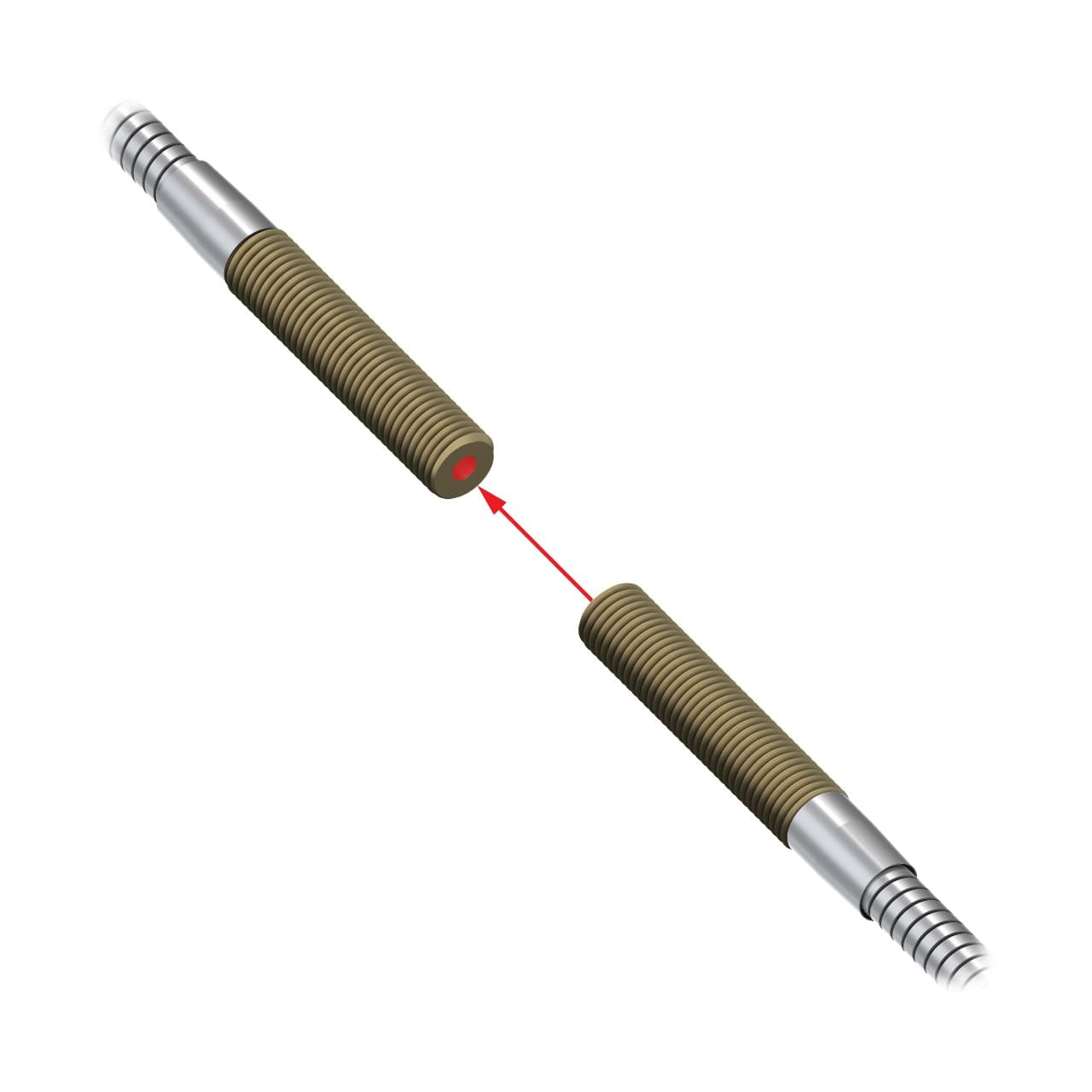

Banner Engineering IT2.83SM6 is a fiber sensor belonging to the Glass fiber series, designed for through-beam system or opposed mode flexible fiber individual fiber in-line sensing. This sensor features a cylindrical (threaded) end tip made of stainless steel, with the sensing part composed of glass fiber and a stainless flexible tubing fiber sheath for protection. The fiber core has a diameter of 3.18mm, and the total length of the sensor is 0.83ft (250mm). It is capable of operating in ambient air temperatures up to +249°C.

Product Details

  • Fiber Sensing End Size - Mounting Area
    M6
  • Termination Type
    Glass Fiber Sensors
  • Measured Max Distance (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    871.2
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G1 (mm)
    No Data
  • Feature: Small Object Detection
    No
  • Application: Vacuum Feed Through
    None
  • Feature: Extended Range
    No
  • Application: Liquid Level
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Max Temp ( °C)
    249
  • Core Diameter (mm)
    3.2
  • Retractile
    No
  • Termination
    Terminated
  • Flex Relief
    No
  • Minimum Bend Radius (mm)
    25
  • Fiber Sensing End Size
    M6
  • Sensing End Segment 1
    Thread
  • Fiber Sensing End Tip
    Thread
  • Fiber Length (m)
    0.254
  • Fiber Optic Type
    Glass
  • Sensing Mode (General)
    Opposed
  • Quantity Included
    1
  • Housing Style
    Round
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sensing End Material (Specific)
    Stainless Steel
  • Beam Exit
    In-line
  • Sensing Mode (Detailed)
    Reflective
  • Product series / family name
    Fiber sensors
  • Shape
    Cylindrical (threaded) end tip
  • Sub-range name
    Glass fiber series
  • Material
    Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
  • Diameter
    3.18mm fiber core
  • Length
    0.83ft / 250mm
  • Primary brand
    Banner Engineering
  • Functions
    Fiber optic sensor
  • Thread size
    M6
  • Ambient air temperature for operation
    +249 °C
  • Main function
    Fiber sensor
  • Design
    through-beam system / opposed mode Individual fiber
  • Order code / Manufacturer SKU
    22328

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
