IAT46ST5TA-VL Banner Fiber Optic Sensors

IAT46ST5TA-VL on Powermatic Associates
Banner
  • IAT46ST5TA-VL
  • IAT46ST5TA-VL

Part#:IAT46ST5TA-VL

Alt. Part#:96026

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

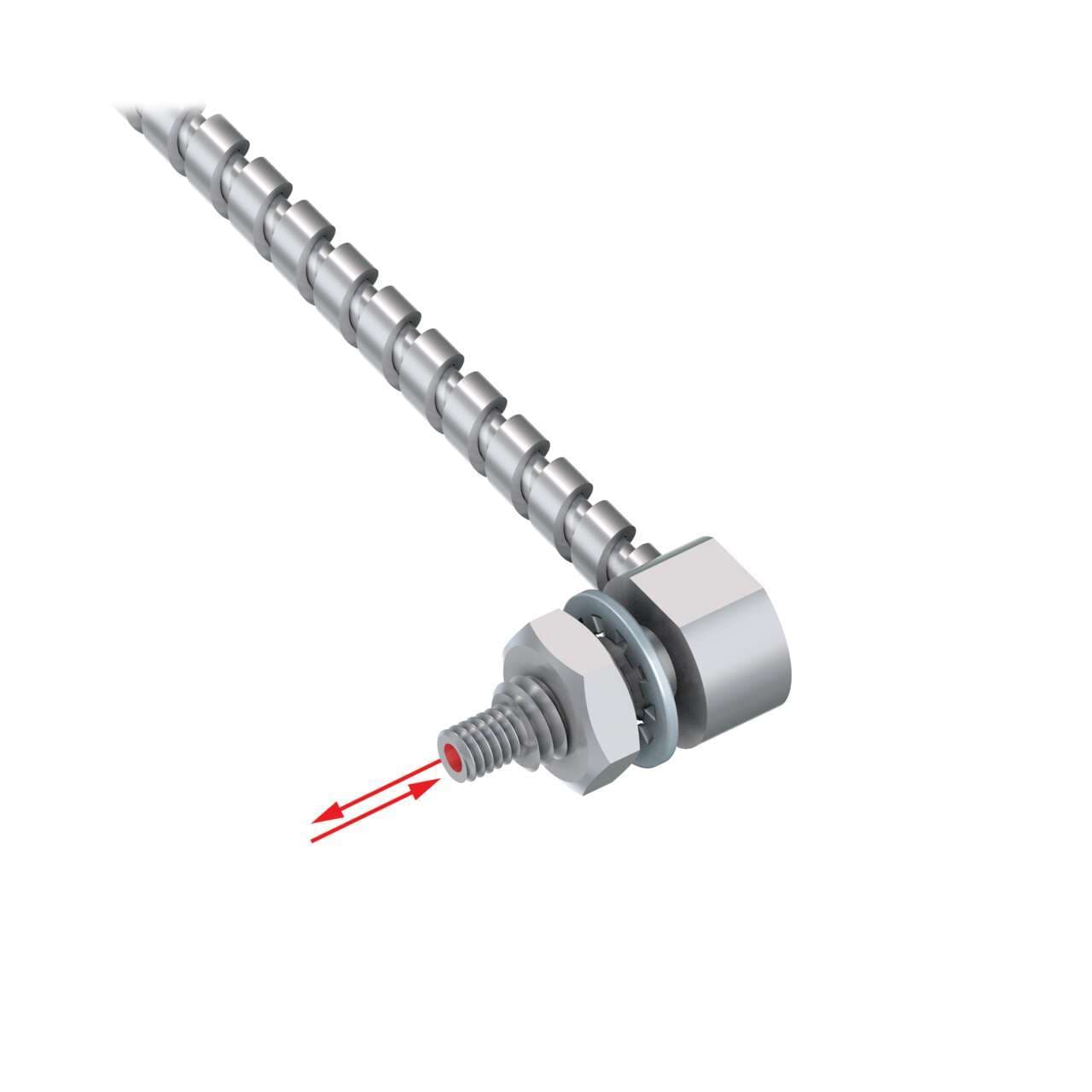

Glass Fiber; Opposed Mode 1 mm. dia. Bundle; M4 Threaded Right-Angle With M2.5 Tip; Stainless Sheathing 2 m Long; Terminated For Plastic Fiber Sensors; Vantage Line

Product Details

  • Weight
    36.28736 g
  • Country Of Origin
    US
  • Tariff Fiber Meters (fbm)
    648
  • Max Temp ( °C)
    249
  • Feature: Extended Range
    No
  • Sensing End Segment 3
    Thread
  • Max Distance: DF-G1 (mm)
    633
  • Max Distance: DF-G2 (mm)
    1026
  • Max Distance: DF-G3 (mm)
    4920
  • Application: Vacuum Feed Through
    None
  • Termination Type
    Plastic Fiber Sensors
  • Measured Max Distance (mm)
    633
  • Feature: Chemical Resistant
    No
  • Feature: Small Object Detection
    No
  • Fiber Sensing End Size - Mounting Area
    M4
  • Application: Liquid Level
    No
  • Termination
    Terminated
  • Integrated Lens
    No
  • Core Diameter (mm)
    1
  • Minimum Bend Radius (mm)
    25
  • Flex Relief
    Yes
  • Retractile
    No
  • Sensing End Segment 2
    Thread
  • Sensing End Segment 1
    Sideview
  • Fiber Sensing End Size
    M2.5
  • Sensing Mode (General)
    Opposed
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Fiber Length (m)
    2
  • Beam Exit
    Right Angle
  • Fiber Optic Type
    Glass
  • Max Range: DF-G3 (mm)
    >3m - <=5m
  • Fiber Sensing End Tip
    Thread
  • Sensing End Material (Specific)
    Stainless Steel
  • Quantity Included
    1
  • Sensing Mode (Detailed)
    Reflective
  • Housing Style
    Round
  • Product series / family name
    Fiber sensors
  • Thread size
    M4
  • Primary brand
    Banner Engineering
  • Functions
    Fiber optic sensor
  • Order code / Manufacturer SKU
    96026
  • Main function
    Fiber sensor
  • Material
    Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
  • Shape
    Cylindrical (threaded) end tip
  • Design
    through-beam system / opposed mode Individual fiber Side / right-angled sensing
  • Ambient air temperature for operation
    +249 °C
  • Length
    6ft / 2m
  • Equivalent to
    IAT46ST5TAVL
  • Sub-range name
    Plastic fiber series
  • Diameter
    1mm fiber core

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IAT46ST5TA-VL on Powermatic Associates is $146.00. Order now.

About the product

Banner Engineering IAT46ST5TA-VL is a fiber sensor belonging to the Plastic fiber series, designed as a through-beam system or opposed mode with a flexible fiber individual fiber side and a right-angled sensing high-temp. It features a cylindrical (threaded) end tip made of stainless steel, with the sensing end constructed from glass fiber and a stainless flexible tubing fiber sheath. The fiber core has a diameter of 1mm, and the total length of the sensor is 6ft / 2m. It is capable of operating in ambient air temperatures up to +249°C.
