IAT43ST5TA-VL Banner Fiber Optic Sensors
Part#:IAT43ST5TA-VL
Alt. Part#:96025
Manufacturer:Banner
Category:Fiber Optic Sensors
Product Lifecycle:Active
Product description

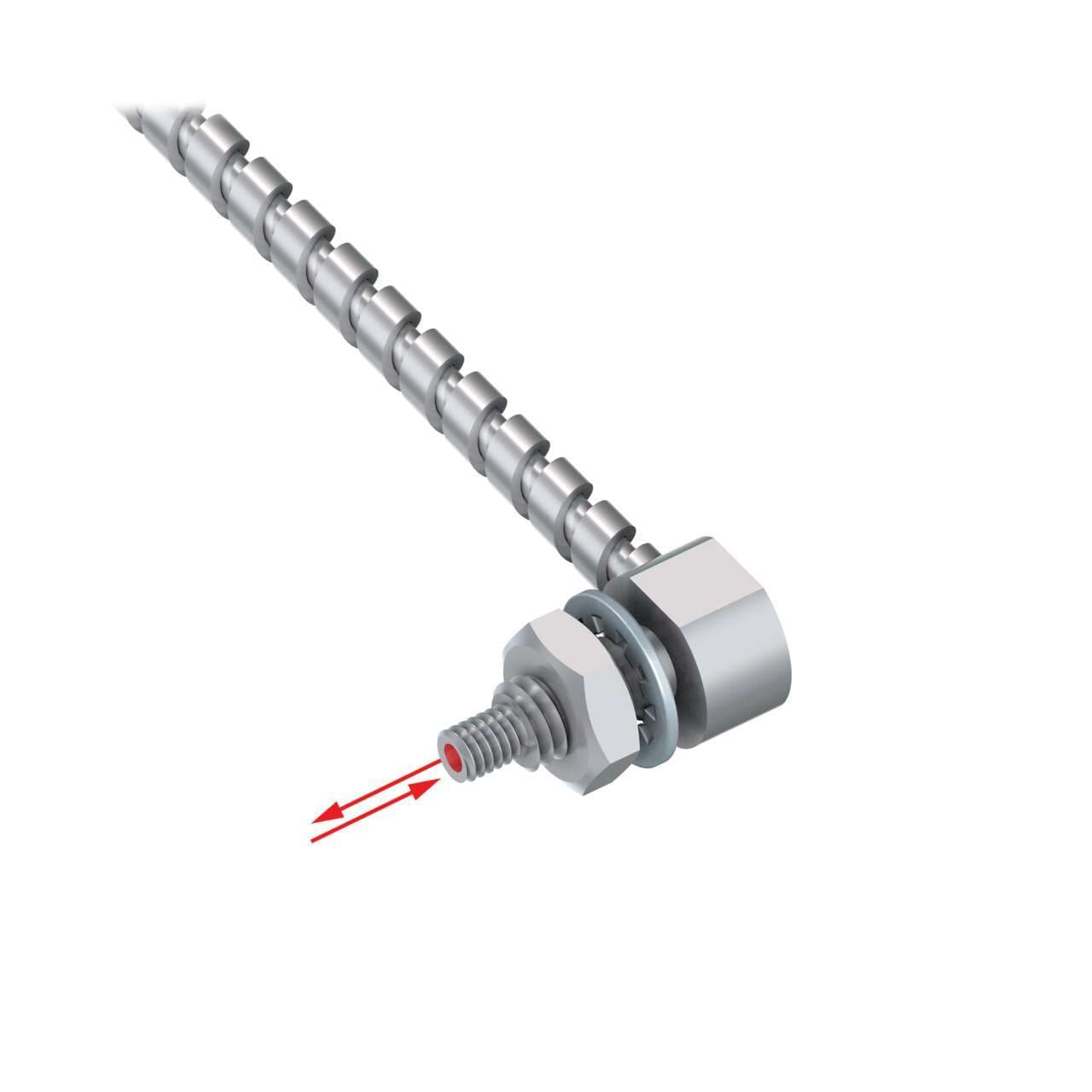

Glass Fiber; Opposed Mode 1 mm dia. Bundle; M4 Threaded Right-Angle With M2.5 Tip; Stainless Sheathing 1 m Long; Terminated For Plastic Fiber Sensors; Vantage Line
Product Details
- Weight 53.070264 g
- Country Of Origin US
- Termination Type Plastic Fiber Sensors
- Max Distance: DF-G1 (mm) 654
- Max Distance: DF-G2 (mm) 1060
- Tariff Fiber Meters (fbm) 327
- Max Distance: DF-G3 (mm) 5082
- Measured Max Distance (mm) 654
- Fiber Sensing End Size - Mounting Area M4
- Feature: Small Object Detection No
- Feature: Extended Range No
- Application: Vacuum Feed Through None
- Application: Liquid Level No
- Minimum Bend Radius (mm) 25
- Max Temp ( °C) 249
- Core Diameter (mm) 1
- Sensing End Segment 3 Thread
- Fiber Sensing End Tip Thread
- Max Range: DF-G3 (mm) >5m
- Housing Style Round
- Sensing Mode (General) Opposed
- Sensing Mode (Detailed) Reflective
- Feature: Chemical Resistant No
- Integrated Lens No
- Termination Terminated
- Retractile No
- Flex Relief Yes
- Sensing End Segment 2 Thread
- Fiber Sensing End Size M2.5
- Sensing End Segment 1 Sideview
- Fiber Length (m) 1
- Fiber Optic Type Glass
- Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
- Beam Exit Right Angle
- Sensing End Material (Specific) Stainless Steel
- Quantity Included 1
- Design through-beam system / opposed mode Individual fiber Side / right-angled sensing
- Length 3ft / 910mm
- Material Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
- Shape Cylindrical (threaded) end tip
- Ambient air temperature for operation +249 °C
- Main function Fiber sensor
- Functions Fiber optic sensor
- Order code / Manufacturer SKU 96025
- Product series / family name Fiber sensors
- Diameter 1mm fiber core
- Equivalent to IAT43ST5TAVL
- Primary brand Banner Engineering
- Sub-range name Plastic fiber series
- Thread size M4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IAT43ST5TA-VL on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering IAT43ST5TA-VL is a fiber sensor belonging to the Plastic Fiber Series, designed as a through-beam system with an opposed mode flexible fiber individual fiber side and a right-angled sensing high-temperature capability. It features a cylindrical (threaded) end tip made of stainless steel, with the sensing end constructed from glass fiber and a stainless flexible tubing fiber sheath. The fiber core has a diameter of 1mm and a length of 3ft (910mm). This sensor is suitable for operation in ambient air temperatures up to +249°C.
