EA5R1050XKQ Banner Measurement Sensors
Part#:EA5R1050XKQ
Alt. Part#:15171
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description

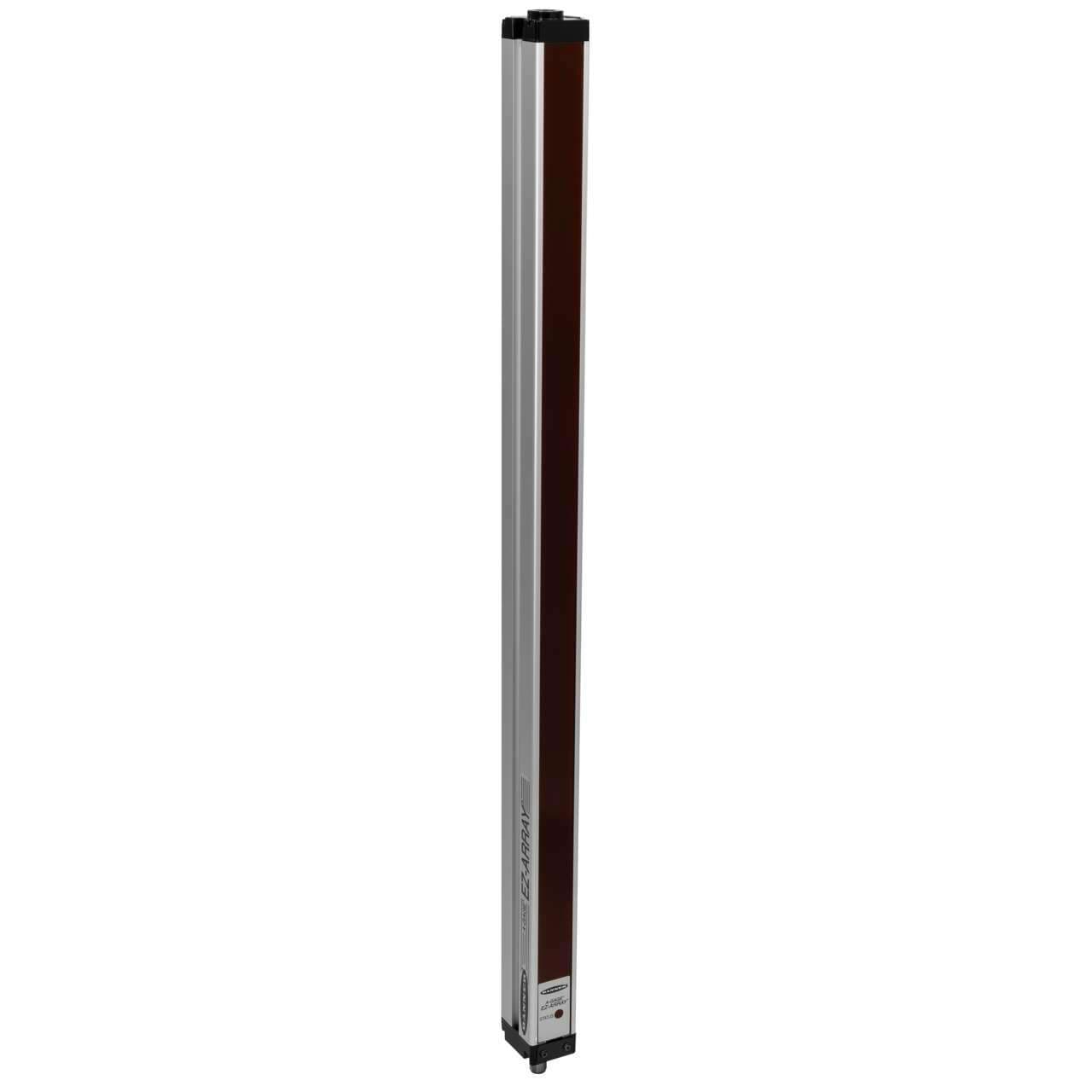

EA5R1050XKQ EZ-ARRAY 5 mm Optical Spacing x 1050 mm RECVR with IO-Link Integral 8-pin M12
Product Details
- Weight 3628.736 g
- Country Of Origin MX
- Sub-range name EZ-ARRAY
- Communication protocol IO-Link
- Resolution 5mm
- Ambient air temperature for operation -40...+70 °C
- Primary brand Banner Engineering
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Detectable object size 5-10mm
- Distance 210 beams / 5mm beam spacing/pitch
- Order code / Manufacturer SKU 15171
- Main function Sensor (Edge)
- Material Aluminium housing
- Dimensions 1050mm array length
- Display LCD 3 digits display
- Functions Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
- Degree of protection IP65
- Connection type Pre-equipped with 8-pin Euro-style M12 connector
- Digital outputs 2 x digital outputs (PNP transistors)
- Product series / family name A-GAGE series
- Sensing distance 40cm...4m
- Analog outputs 2 x analog outputs (0-10Vdc)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R1050XKQ on Powermatic Associates is $1,958.00. Order now.
About the product
Banner Engineering EA5R1050XKQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series, with a main function as a measuring light curtain array edge/profile sensor (receiver alone). It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers 2 analog outputs (0-10Vdc) and 2 digital outputs (PNP transistor; complementary NO/NC), ensuring versatility in connectivity. It is equipped with a pre-equipped 8-pin Euro-style M12 connector for easy installation. The EA5R1050XKQ has a degree of protection rated at IP65, making it suitable for various industrial environments. With dimensions specifying a 1050mm array length, it can detect objects sizes ranging from 5-10mm within a sensing distance of 40cm to 4m. The sensor provides a high resolution of 5mm across 210 beams with a 5mm beam spacing/pitch. It requires a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and supports the IO-Link communication protocol for efficient data exchange.
