EA5K600PIXMODQ Banner Measurement Sensors

EA5K600PIXMODQ on Powermatic Associates
Banner
  • EA5K600PIXMODQ
  • EA5K600PIXMODQ

Part#:EA5K600PIXMODQ

Alt. Part#:86650

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

Kit EA5E600Q,EA5R600PIXMODQ

Product Details

  • Weight
    4776.32376 g
  • Country Of Origin
    MX
  • Emitter/Receiver Range (m)
    0.4 - 4
  • Power Supply
    12-30V dc
  • Discrete Output
    PNP
  • Max Relative Humidity
    95%
  • Max Temp (°C)
    70
  • Array Length (mm)
    600
  • Housing Length (mm)
    678
  • Number of Beams
    120
  • Analog Output
    Current (4-20 mA)
  • Min Temp (°C)
    -40
  • Minimum Object Sensitivity (mm)
    5-10
  • RS-232
    No
  • Modbus RTU
    Yes
  • RS-485
    Yes
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • DeviceNet
    No
  • IO Link
    No
  • Device Type
    Kit
  • Beam Spacing
    5 mm
  • Primary Housing Material
    Aluminum
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5K600PIXMODQ on Powermatic Associates is $2,586.00. Order now.

About the product

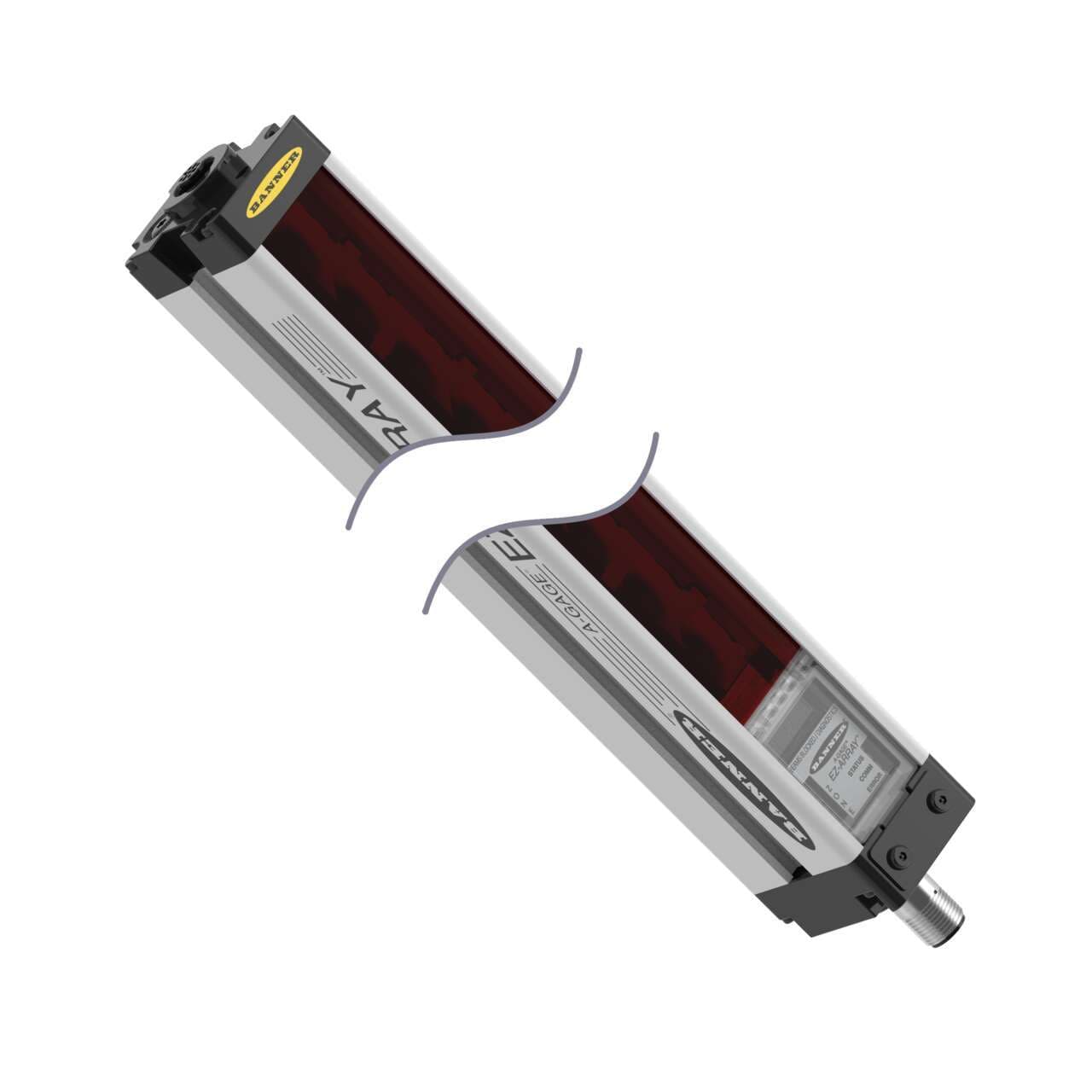

Banner Engineering EA5K600PIXMODQ is a sensor designed for edge detection with a robust aluminium housing. This part of the EZ-ARRAY series functions as a measuring light curtain array edge/profile sensor, comprising both emitter and receiver pairs. It features a 600mm array length and is capable of detecting objects sized between 5-10mm with a resolution of 5mm. The sensing distance ranges from 40cm to 4m. It offers two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. The sensor operates within an ambient air temperature range of -40 to +70°C and is protected by an IP65-rated enclosure, indicating dust tightness and protection against water jets. Its rectangular shape is complemented by a pre-equipped 8-pin Euro-style M12 connector for easy installation. The supply voltage requirement is 12Vdc-30Vdc, with 24Vdc nominal. For communication, it utilizes the Modbus RTU RS-485 protocol. The sensor's design includes 120 beams with a 5mm beam spacing/pitch, facilitating precise detection and measurement tasks.

EA5K600PIXMODQ Related Documents

126701.pdf

Manufacturer warranty

EA5K600PIXMODQ Banner

$2,586.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$2,586.00

$2,586.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
