EA5K300PIXMODQ Banner Measurement Sensors

EA5K300PIXMODQ on Powermatic Associates
Banner
  • EA5K300PIXMODQ
  • EA5K300PIXMODQ

Part#:EA5K300PIXMODQ

Alt. Part#:86649

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

Kit EA5E300Q, EA5R300PIXMODQ

Product Details

  • Weight
    3560.6972 g
  • Country Of Origin
    MX
  • Emitter/Receiver Range (m)
    0.4 - 4
  • Max Relative Humidity
    95%
  • Power Supply
    12-30V dc
  • Housing Length (mm)
    379
  • Max Temp (°C)
    70
  • Discrete Output
    PNP
  • Minimum Object Sensitivity (mm)
    5-10
  • Array Length (mm)
    300
  • Analog Output
    Current (4-20 mA)
  • Number of Beams
    60
  • Min Temp (°C)
    -40
  • RS-485
    Yes
  • RS-232
    No
  • Power
    DC
  • Modbus RTU
    Yes
  • Beam Spacing
    5 mm
  • Device Type
    Kit
  • DeviceNet
    No
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • IO Link
    No
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5K300PIXMODQ on Powermatic Associates is $1,882.00. Order now.

About the product

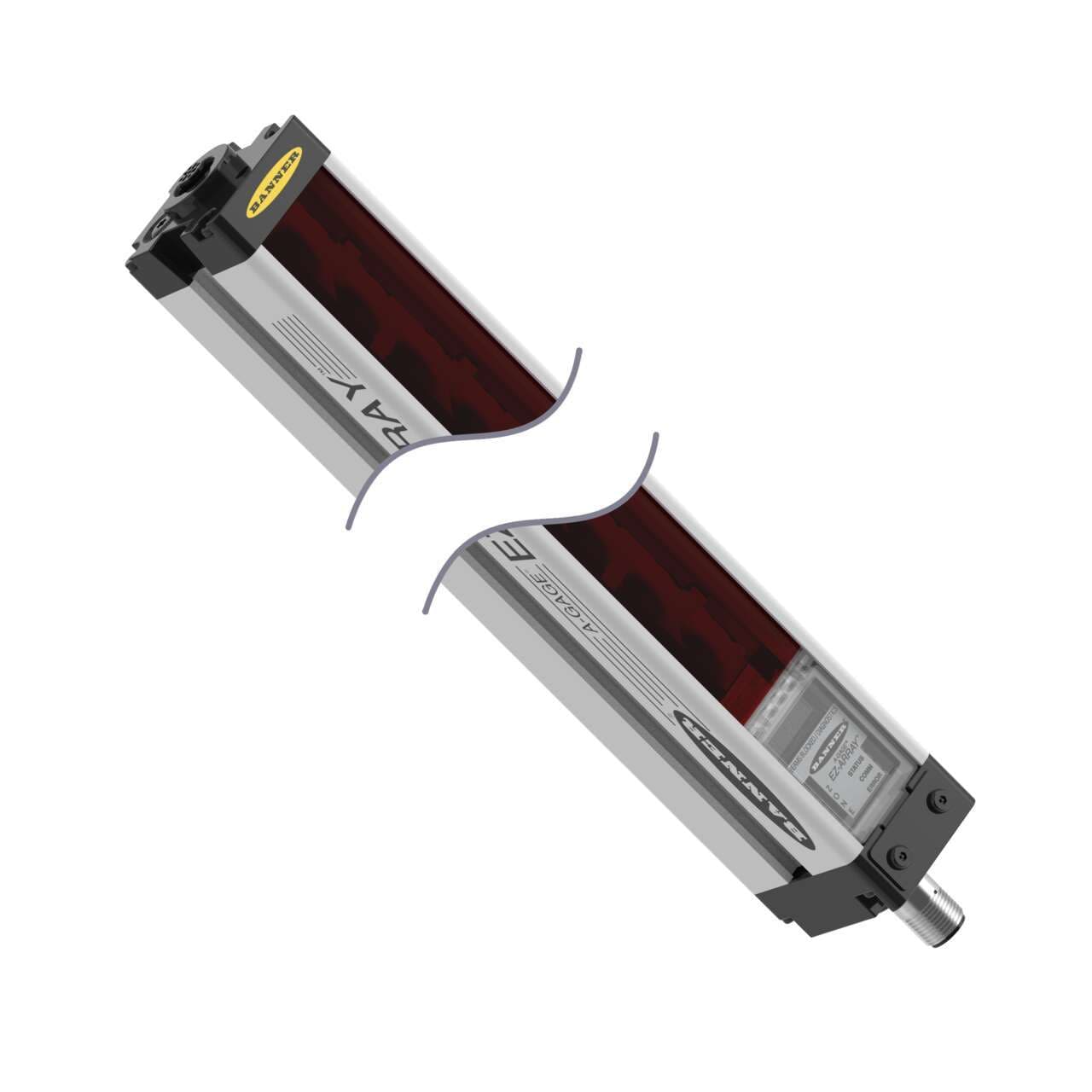

Banner Engineering EA5K300PIXMODQ is an edge sensor from the EZ-ARRAY series, featuring a robust aluminium housing designed for operation in ambient air temperatures ranging from -40 to +70°C. This sensor is equipped with two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. With a 300mm array length and a resolution of 5mm, it can detect objects sized between 5-10mm within a sensing distance of 40cm to 4m. The EA5K300PIXMODQ offers a degree of protection of IP65, making it suitable for various industrial environments. It is pre-equipped with an 8-pin Euro-style M12 connector for easy installation and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). This measuring light curtain array edge/profile sensor supports the Modbus RTU RS-485 communication protocol and is designed with 60 beams at a 5mm beam spacing/pitch, facilitating precise detection and measurement tasks.

EA5K300PIXMODQ Related Documents

126701.pdf

Manufacturer warranty

EA5K300PIXMODQ Banner

$1,882.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$1,882.00

$1,882.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
