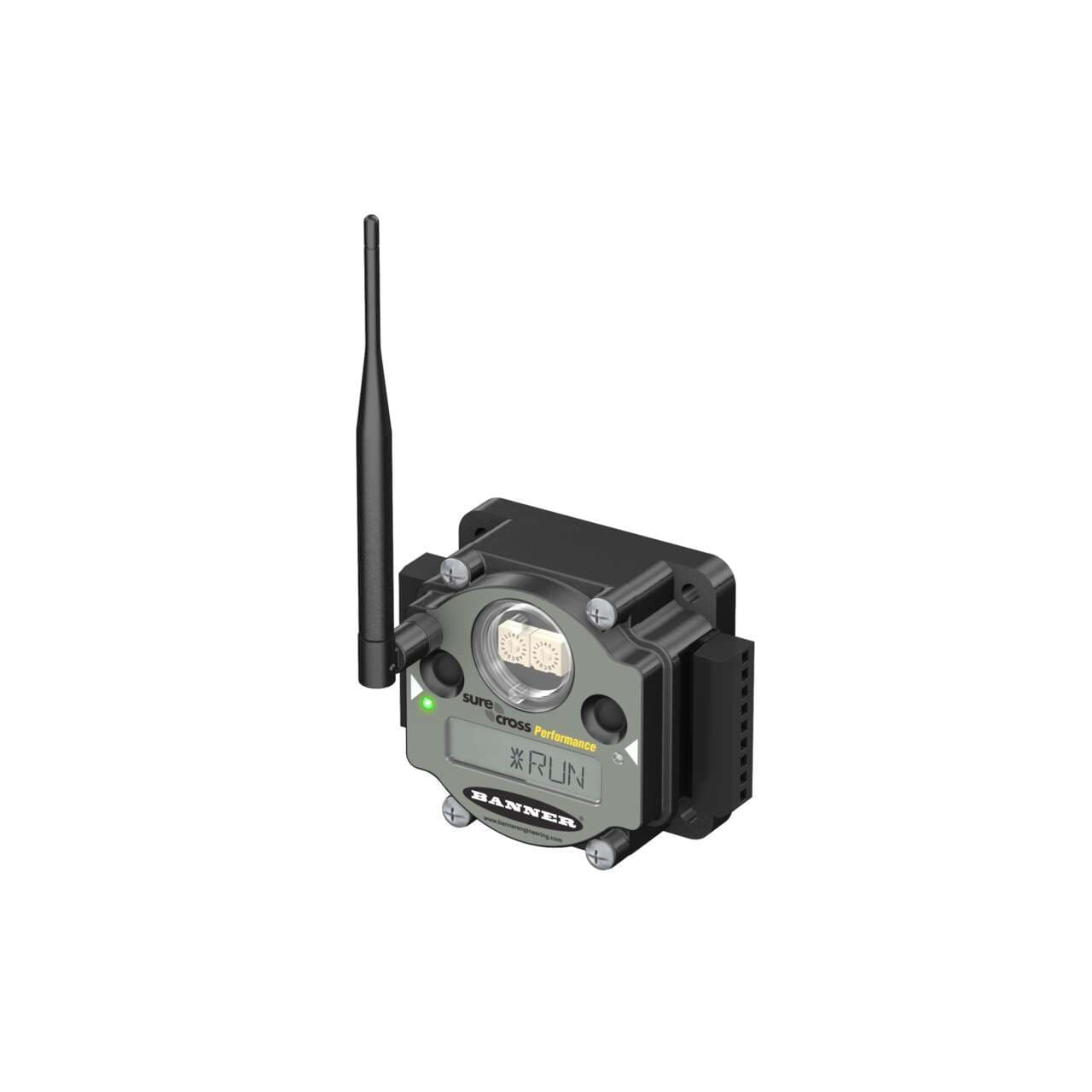

DX80N9X6S-PM2C Banner I/O Modules

DX80N9X6S-PM2C on Powermatic Associates
Banner

Part#:DX80N9X6S-PM2C

Manufacturer:Banner

Alt. Part#:87108

Product Lifecycle:Active

Get a quick Quote!

PM Series Node- LCD for Diagnostics; 900 MHz, IP20 /NEMA 1; Inputs:Four Selectable NPN/PNP Discrete, two 0-20 mA; Outputs: Four PNP Discrete, two 0-20 mA; External Terminals

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80N9X6S-PM2C Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    421.84056 g
  • Country Of Origin
    US
  • RS-232
    No
  • Point-to-Point Topology
    Yes
  • Star Topology
    Yes
  • Wireless Radio Frequency
    900 MHz
  • 1-wire Serial Interface
    No
  • Wireless
    Yes
  • RS-485
    No
  • PROFINET
    No
  • EtherNet/IP
    No
  • Modbus/TCP
    No
  • Modbus RTU
    No
  • Feature: Hazardous Area
    Yes
  • Tree Topology
    No
  • Point-to-Multipoint Topology
    Yes
  • Min Operating Temperature ( °C)
    -40
  • Relative Humidity
    95%
  • Max Operating Temperature ( °C)
    85
  • Max Temp Operating Conditions
    85
  • Min Temp Operating Conditions
    -40
  • LCD Display
    Yes
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Environmental Rating (NEMA)
    NEMA 1
  • Environmental Rating (IP)
    IP20
  • Output Details
    4 PNP Discrete, 2 0-20 mA analog
  • Input Details
    4 Selectable Discrete, 2 0-20 mA
  • Power Supply
    10-30 V dc
  • Housing Style
    External Terminals
  • Discrete Outputs
    Yes
  • Analog Outputs
    Yes
  • Discrete Inputs
    Yes
  • Analog Inputs
    Yes
  • Device Type
    Node
  • Input/Output
    Analog & Discrete
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80N9X6S-PM2C Description

Banner Engineering DX80N9X6S-PM2C is a Remote Terminal Unit (RTU) designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 analog outputs (0-20mA; 12-bit), with a degree of protection rated at IP20 NEMA 1. The dimensions of this unit are H44.5mm x W103.3mm x D80.1mm. It also features 2 digital outputs (30Vdc; PNP; 100mA), 2 analog inputs (0-20mA; 12-bit), and 4 digital inputs (30Vdc 3mA; PNP/NPN). The transmission frequency is 900 MHz, and it has a rectangular shape. This RTU is part of the PM series - wire replacement, designed for I.O. mapping with 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector, with a supply voltage requirement of 10-30Vdc (12Vdc-24Vdc nom.). It operates on a 900MHz ISM band 1W frequency and can achieve a maximum transmission distance of 9.6km at nominal emission power.

Related documents DX80N9X6S-PM2C Specs

DX80N9X6S-PM2C 173567.pdf
