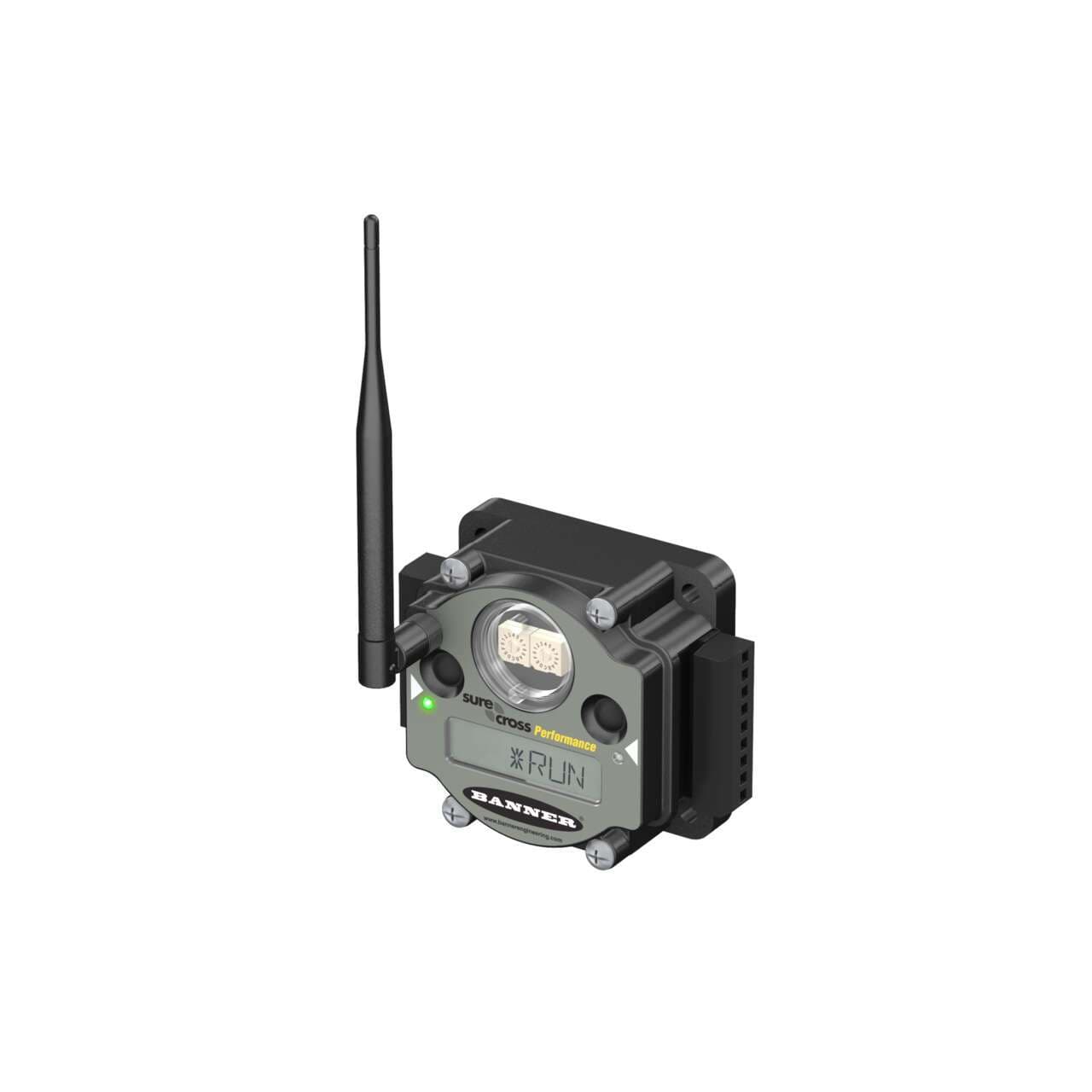

DX80N9X6S-P8C Banner I/O Modules
Part#:DX80N9X6S-P8C
Manufacturer:Banner
Alt. Part#:18809
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 900 MHz Node 1 W IP20; 10-30 V dc External Antenna RS485; Up to 12 Discrete PNP IO; External Terminals
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9X6S-P8C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 430.9124 g
- Country Of Origin US
- Wireless Radio Frequency 900 MHz
- 1-wire Serial Interface No
- RS-232 No
- RS-485 Yes
- PROFINET No
- Tree Topology No
- EtherNet/IP No
- Star Topology Yes
- Relative Humidity 95%
- Max Operating Temperature ( °C) 80
- Min Operating Temperature ( °C) -20
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Environmental Rating (NEMA) NEMA 1
- Housing Style External Terminals
- Input Details 12 PNP (not exceeding 12 I/O points)
- Discrete Inputs Yes
- Power DC
- Wireless Yes
- Modbus/TCP No
- Modbus RTU No
- Feature: Hazardous Area Yes
- Point-to-Point Topology Yes
- Point-to-Multipoint Topology Yes
- LCD Display Yes
- Min Temp Operating Conditions -20
- Max Temp Operating Conditions 80
- Power Supply 10-30 V dc
- Environmental Rating (IP) IP20
- Output Details 12 PNP (not exceeding 12 I/O points)
- Input/Output Discrete
- Discrete Outputs Yes
- Device Type Node
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
DX80N9X6S-P8C Description
Banner Engineering DX80N9X6S-P8C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, a polycarbonate rotary dial cover, polyester labels, an EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. With dimensions of H44.5mm x W103.3mm x D80.1mm, the rectangular-shaped RTU supports 12 x digital inputs (30Vdc 3mA; PNP) which can also function as digital PNP outputs (100mA 30Vdc). It is equipped with 2 x buttons, 2 x bi-color LEDs suitable for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. The device requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 900MHz ISM band frequency with 1W power, capable of achieving a maximum transmission distance of 9.6km at nominal emission power.
