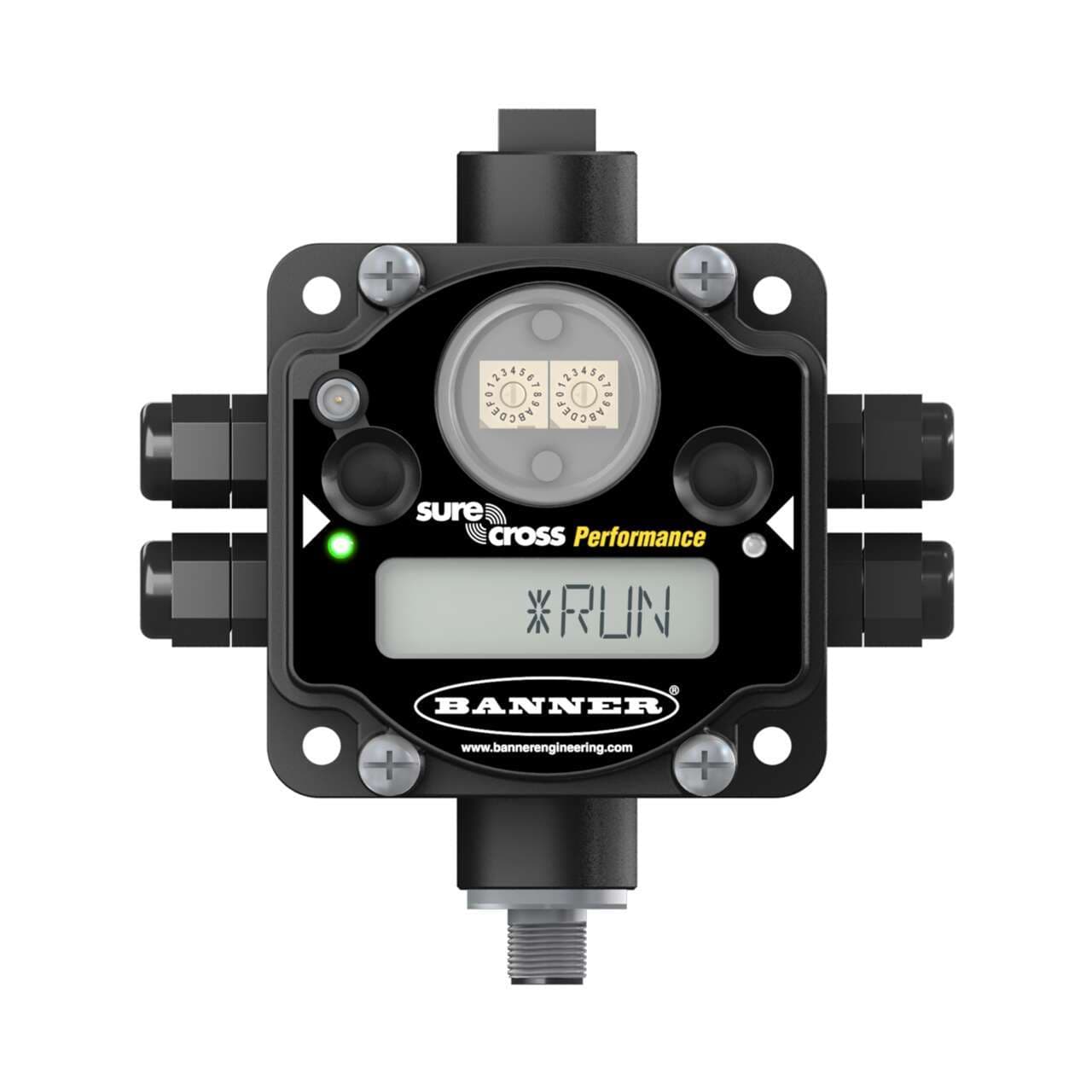

DX80N9X2S4A2 Banner I/O Modules

Banner Engineering DX80N9X2S4A2 is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6. With dimensions of H59.8mm x W126.7mm x D117.4mm, it includes 2 digital outputs (30Vdc; NMOS; 10mA) and 4 digital inputs (2 inputs at 30Vdc 3mA; PNP/NPN and 2 inputs as a 25kHz counter) for versatile connectivity. The DX80N9X2S4A2 utilizes FHSS (Frequency Hopping Spread Spectrum) technology and Time Division Multiple Access (TDMA) for reliable communication, featuring a transmission frequency of 900 MHz. Its design incorporates 2 buttons, 2 bi-color LEDs, and supports a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.). Connection options include a wiring chamber with screw-clamp connections, 4 x Pg7 cable accesses, a gld. 1/2" NPT threaded cable access, a 5-pin M12 male connector, and an RP-SMA connector. This unit is part of the SureCross DX80 series and is capable of a maximum transmission distance of 9.6km at nominal emission power.
